| Typ chladiče | Aktivní |
|---|---|
| Využití chladiče | Na procesory |
ARCTIC Alpine AM4 CO

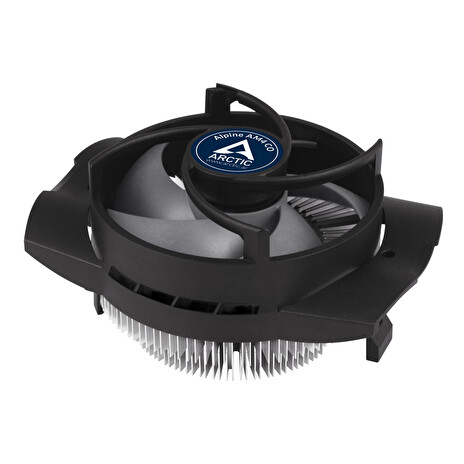

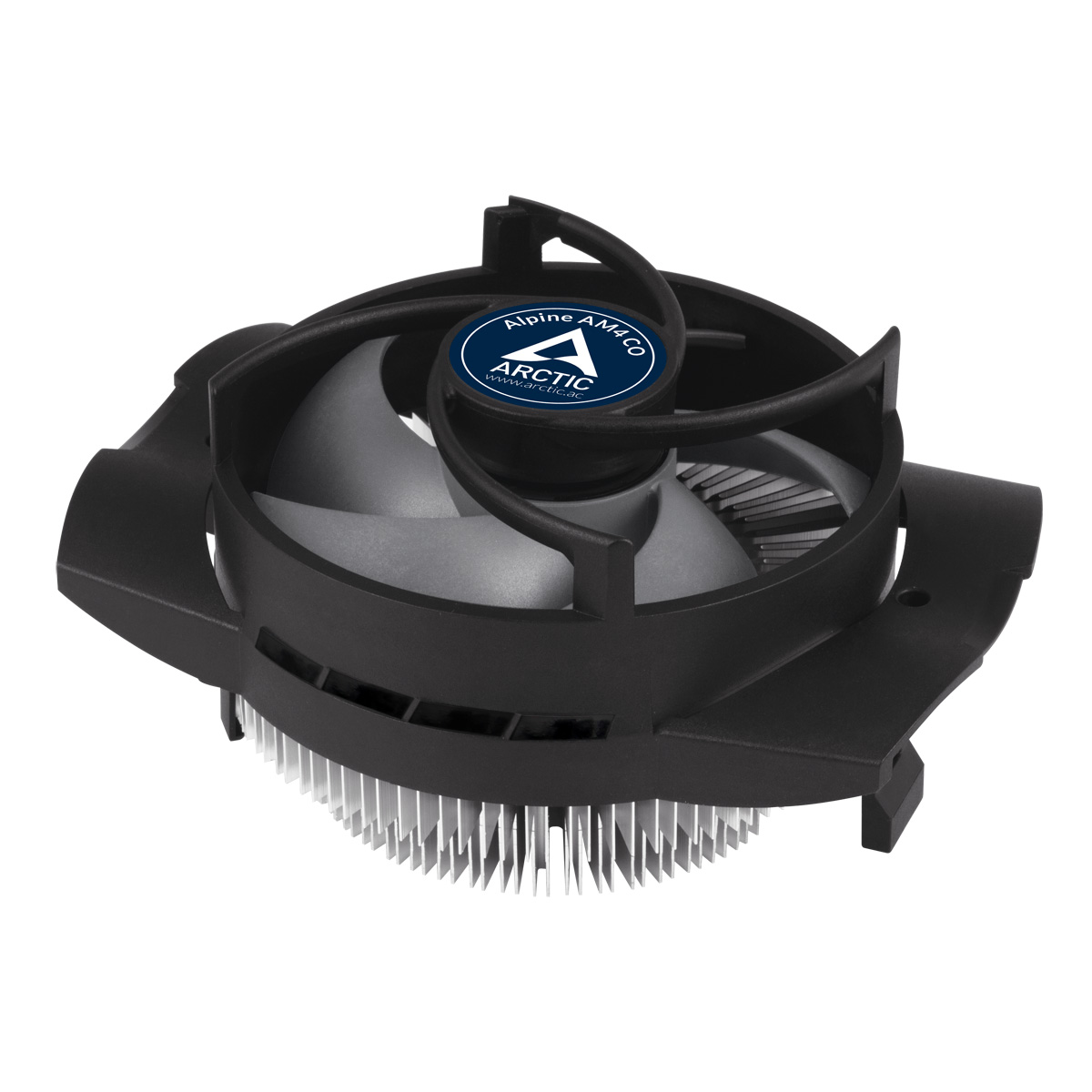

Alpine AM4 CO- Kompaktní AMD CPU chladič (AM4, AM3(+), AM2(+), FM2(+), FM1) pro nepřetržitý běh s 92mm PWM větráčkem s dvojitými kuličkovými ložisky.
Alpine AM4 CO- Compact AMD CPU-Cooler for Continuous Operation
Improved Cooling Performance by New Production Process
The high thermal conductivity of aluminum is fully retained by a new type of extrusion. This new production…
Kategorie: Chladiče
Kód: 2652909PN: ACALP00032AVýrobce: ARCTICZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.
Aktuálně není v nabídce
Popis produktu
Alpine AM4 CO- Kompaktní AMD CPU chladič (AM4, AM3(+), AM2(+),
FM2(+), FM1) pro nepřetržitý běh s 92mm PWM větráčkem s dvojitými
kuličkovými ložisky.
Alpine AM4 CO- Compact AMD CPU-Cooler for Continuous Operation
Improved Cooling Performance by New Production Process
The high thermal conductivity of aluminum is fully retained by a new type of extrusion. This new production process creates a powerful yet very compact radial heat sink. The particularly thin cooling fins of the new Alpine are fanned out in a Y-shape. This increases the surface area of the heat sink and therefore the cooling capacity.
0 dB Mode
The Alpine AM4 CO is able to switch into silent passive mode when PWM signal is below 5 % due to its new motor. This allows working at your PC in complete silence without any unwanted noise.
Lower Power Consumption & Minimum Vibration
The new Alpine AM4 CO is powered by an updated motor and runs much more efficiently than its predecessors. Due to sinus-magnetizing the new motor creates just 5 % of the vibration from commutation of a regular DC-motor. These factors contribute towards saving energy, lowering the coil temperature and reducing vibrations to a minimum without compromising performance.
For Continuous Operation
The premium quality Japanese dual ball bearing allows continuous operation 24/7 without the slightest compromise in performance. Dust and high temperature are affecting this bearing a lot less than generic sleeve or one ball bearings and thus make it the perfect choice when reliability is essential.
Extended Life Span
A 10 °C lower motor temperature roughly doubles the life span of a fan.
The new ARCTIC motor has a four times longer service life through its low coil temperature.
Pre-applied MX-2 Thermal Paste
The pre-applied, high-performance MX-2 thermal compound ensures fast and clean installation.
Easy and Tool-free Installation
Thanks to the mounting clips, the installation is really easy. Additional tools are not needed to install the cooler.
Compatibility
Intel Socket
1151 1150 1155 1156 2066 2011(-3) 1366 775
No No No No No No No No
AMD Socket
sTR4 AM4 AM3(+) AM2(+) AM1 FM2(+) FM1
No Yes Yes Yes No Yes Yes
Recommended for TDP up to: 95 W
Heatsink
Heatsink: Radial Heatsink
Material: Aluminium
Fan
Diameter: 92 mm
Fan Speed: 100 - 2700 RPM (Controlled by PWM), 0 db fan mode below 5 % PWM
Bearing: Dual Ball Bearing
Noise Level: 0.5 Sone
Current/Voltage: 0.09 A / 12 V
Alpine AM4 CO- Compact AMD CPU-Cooler for Continuous Operation
Improved Cooling Performance by New Production Process
The high thermal conductivity of aluminum is fully retained by a new type of extrusion. This new production process creates a powerful yet very compact radial heat sink. The particularly thin cooling fins of the new Alpine are fanned out in a Y-shape. This increases the surface area of the heat sink and therefore the cooling capacity.
0 dB Mode
The Alpine AM4 CO is able to switch into silent passive mode when PWM signal is below 5 % due to its new motor. This allows working at your PC in complete silence without any unwanted noise.
Lower Power Consumption & Minimum Vibration
The new Alpine AM4 CO is powered by an updated motor and runs much more efficiently than its predecessors. Due to sinus-magnetizing the new motor creates just 5 % of the vibration from commutation of a regular DC-motor. These factors contribute towards saving energy, lowering the coil temperature and reducing vibrations to a minimum without compromising performance.
For Continuous Operation
The premium quality Japanese dual ball bearing allows continuous operation 24/7 without the slightest compromise in performance. Dust and high temperature are affecting this bearing a lot less than generic sleeve or one ball bearings and thus make it the perfect choice when reliability is essential.
Extended Life Span
A 10 °C lower motor temperature roughly doubles the life span of a fan.
The new ARCTIC motor has a four times longer service life through its low coil temperature.
Pre-applied MX-2 Thermal Paste
The pre-applied, high-performance MX-2 thermal compound ensures fast and clean installation.
Easy and Tool-free Installation
Thanks to the mounting clips, the installation is really easy. Additional tools are not needed to install the cooler.
Compatibility
Intel Socket
1151 1150 1155 1156 2066 2011(-3) 1366 775
No No No No No No No No
AMD Socket
sTR4 AM4 AM3(+) AM2(+) AM1 FM2(+) FM1
No Yes Yes Yes No Yes Yes
Recommended for TDP up to: 95 W
Heatsink
Heatsink: Radial Heatsink
Material: Aluminium
Fan
Diameter: 92 mm
Fan Speed: 100 - 2700 RPM (Controlled by PWM), 0 db fan mode below 5 % PWM
Bearing: Dual Ball Bearing
Noise Level: 0.5 Sone
Current/Voltage: 0.09 A / 12 V
