Barva podsvícení | bez podsvícení |
---|---|
Napájecí konektor | 3pin |
Typ chladiče | Aktivní |
Velikost ventilátoru | 80x80 |
Využití chladiče | Do PC skříně |

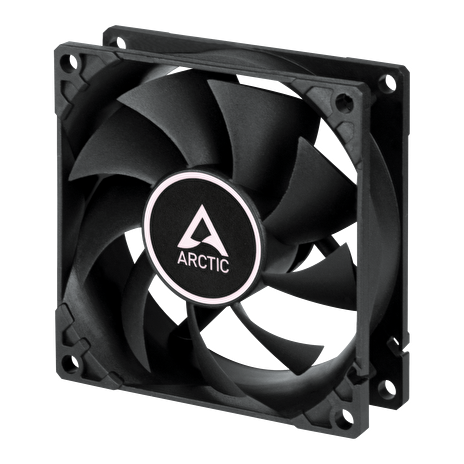

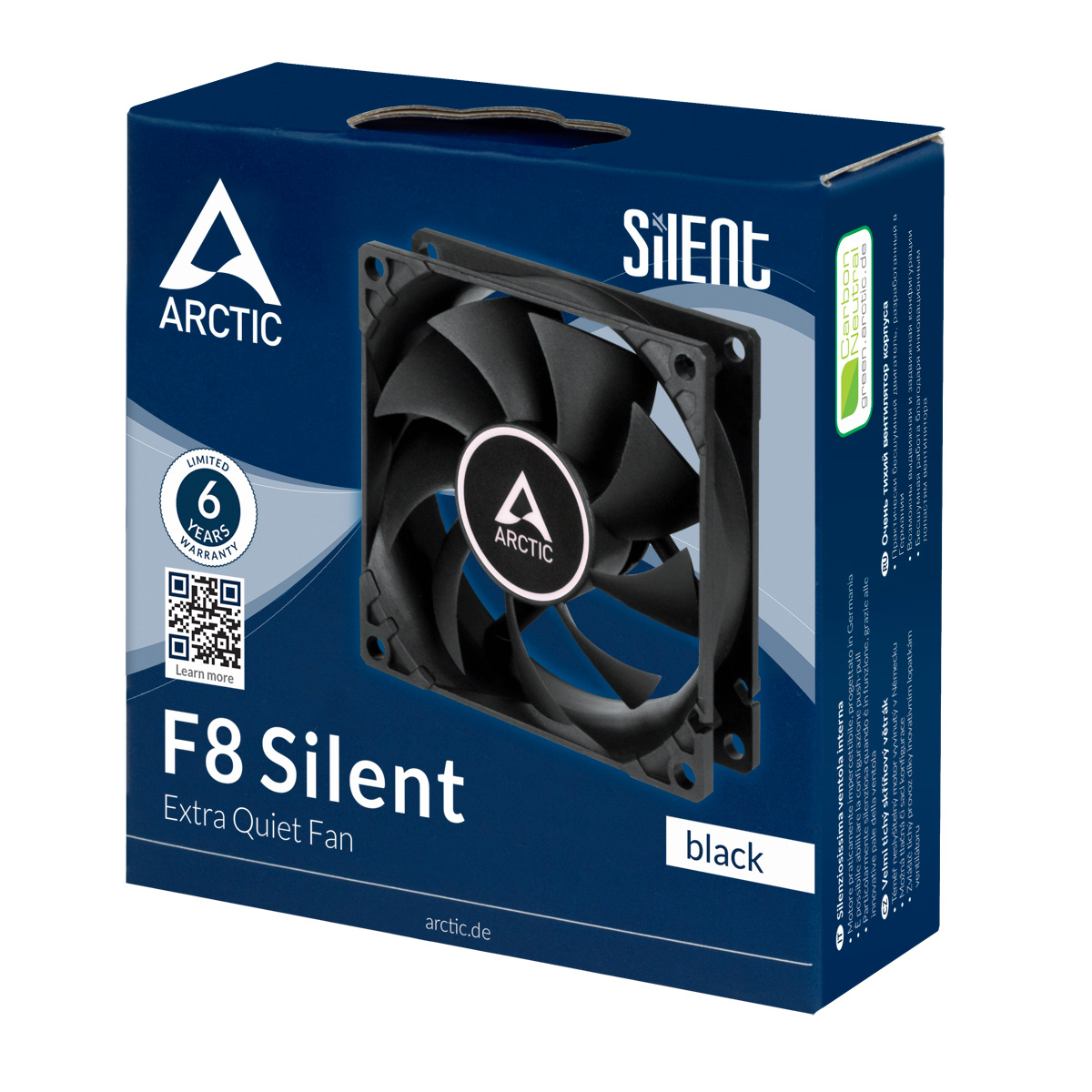

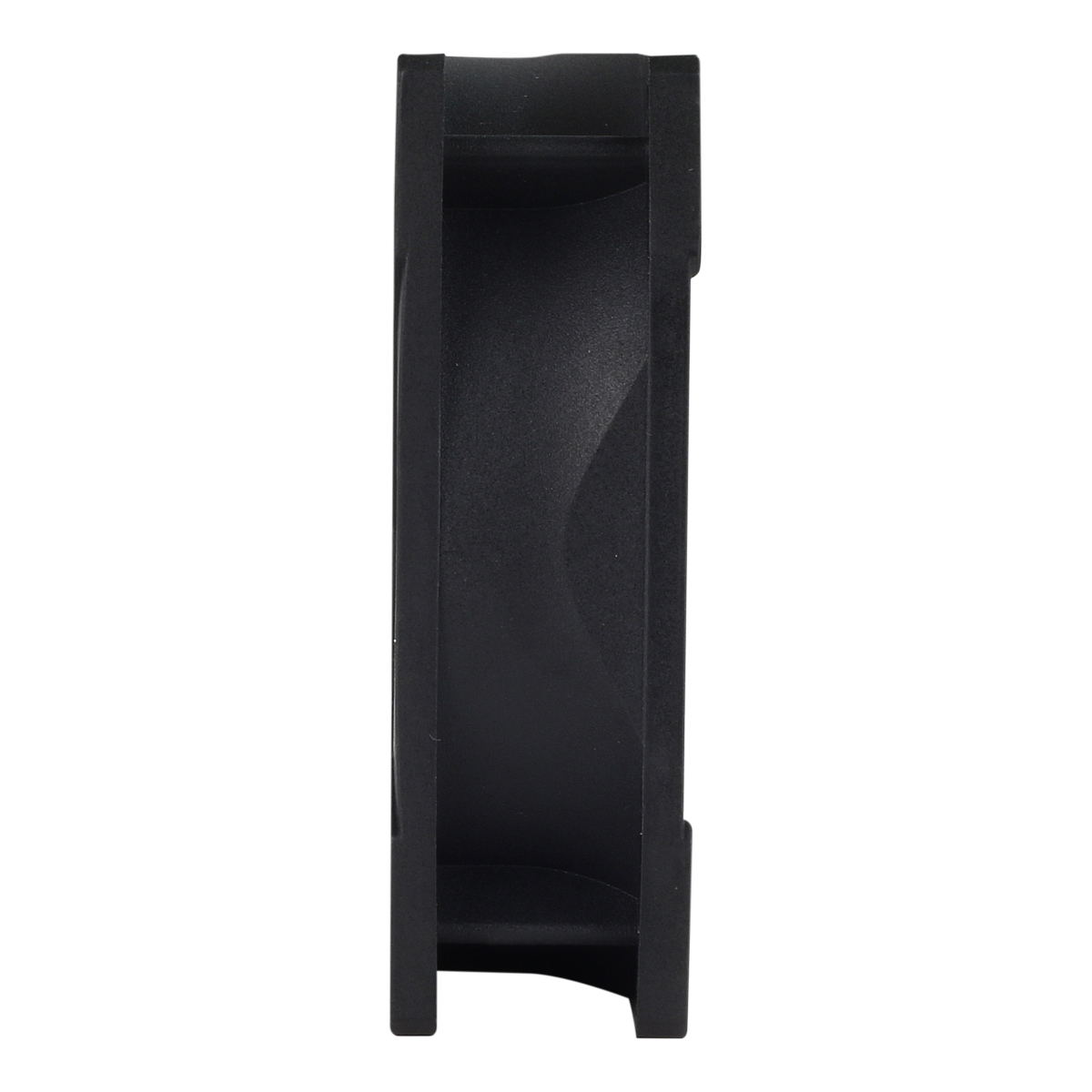

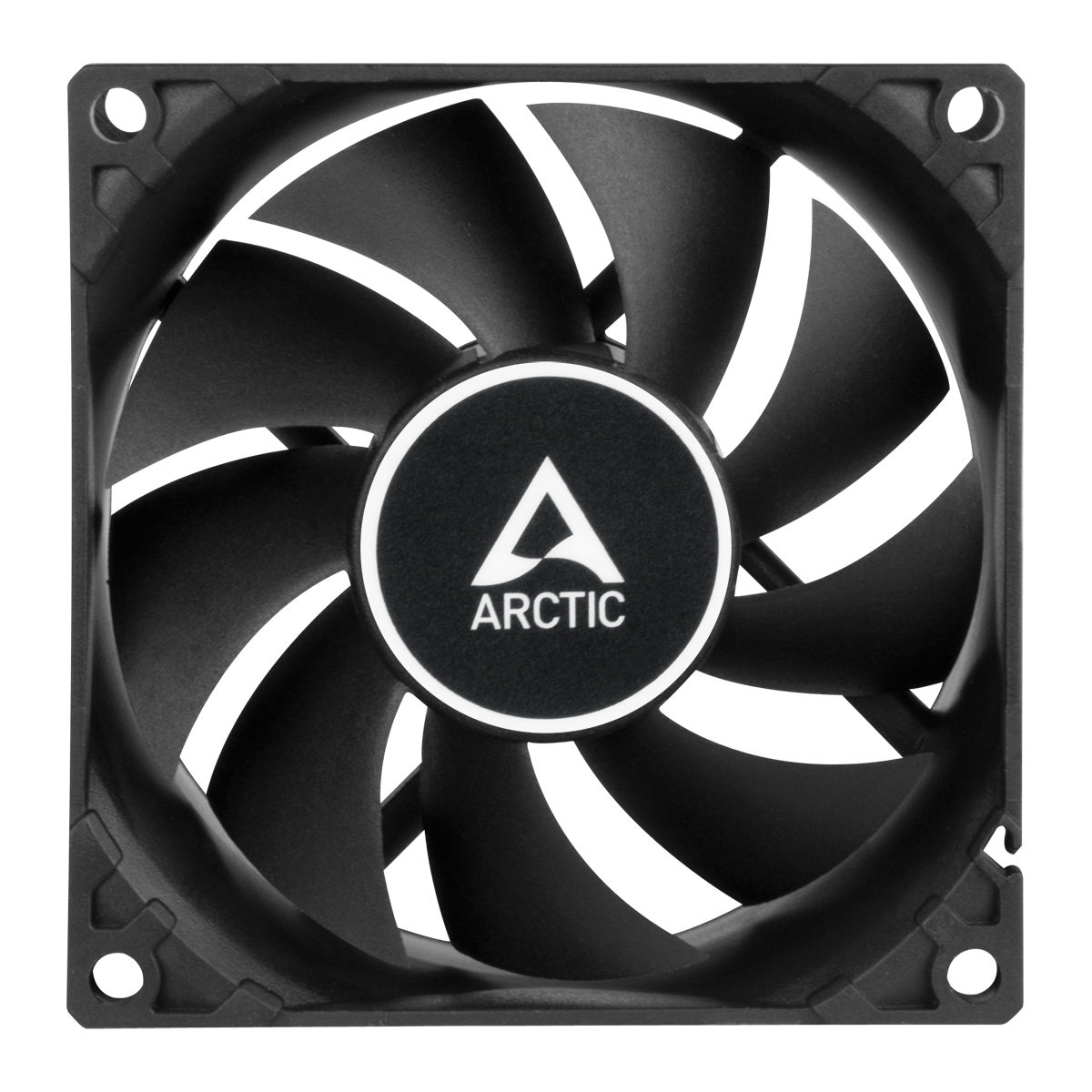

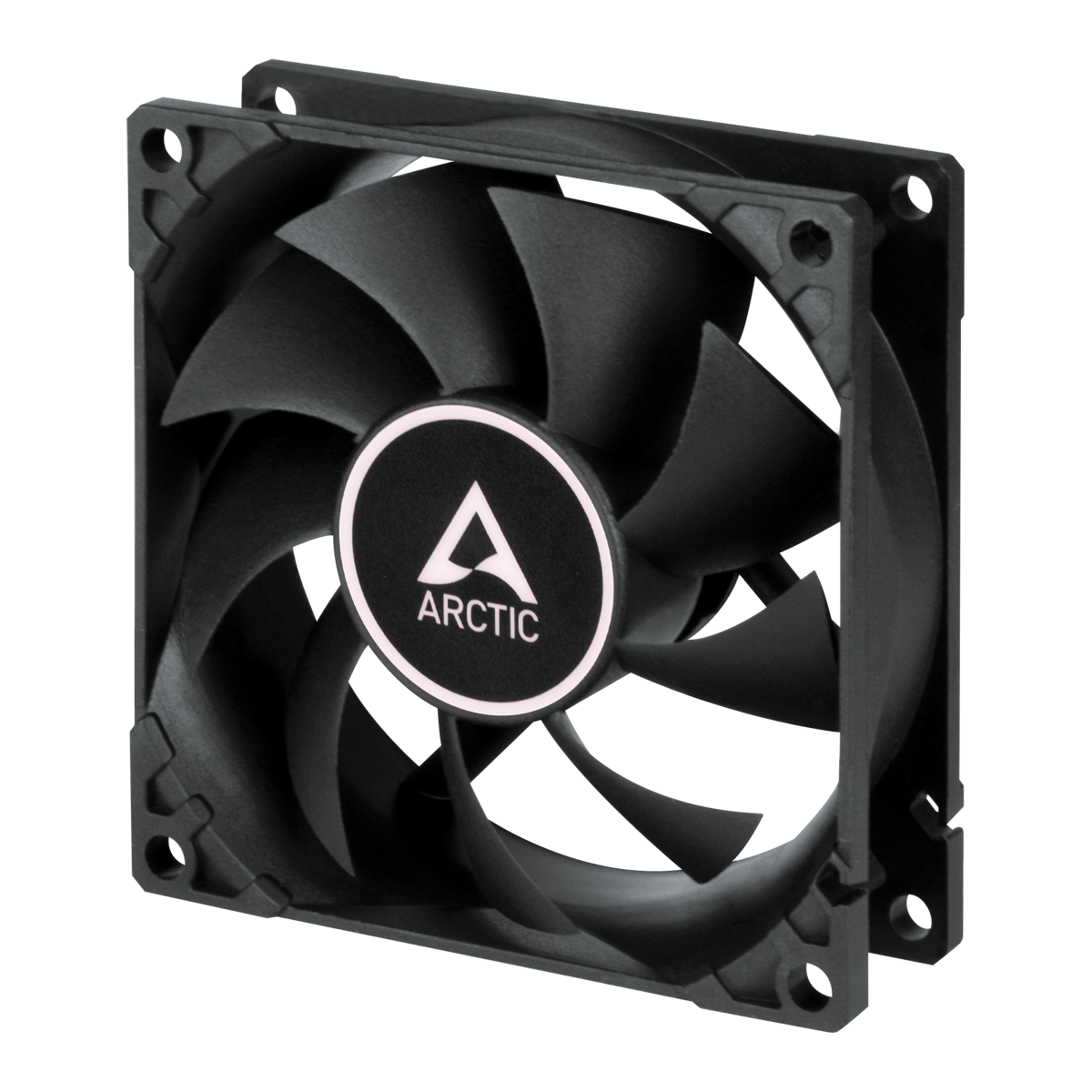

ARCTIC ventilátor F8 Silent 80x80x25mm, černá
F8 Silent
GREATER EFFICIENCY - LESS NOISE AT HIGHER AIRFLOW - At low fan speed, the motor noise is key. A motor developed in Germany with a new alloy/lubricant combination reduced friction and noise.
LONG SERVICE LIFE - The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with…
Kategorie: Chladiče
Kód: 3187368PN: ACFAN00245AVýrobce: ARCTICZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.
Aktuálně není v nabídce
Popis produktu
F8 Silent
- GREATER EFFICIENCY - LESS NOISE AT HIGHER AIRFLOW - At low fan speed, the motor noise is key. A motor developed in Germany with a new alloy/lubricant combination reduced friction and noise.
- LONG SERVICE LIFE - The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life.
- INNOVATIVE DESIGN ENABLES QUIET AND EFFICIENT VENTILATION - The innovative design of the fan blades improves the airflow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.
- DIFFERENT
INSTALLATION
- Exhaust hot air out of the case
- Intake cool air into the case
- 3-pin connector for mainboard and power supply that also works with 4-pin headers.

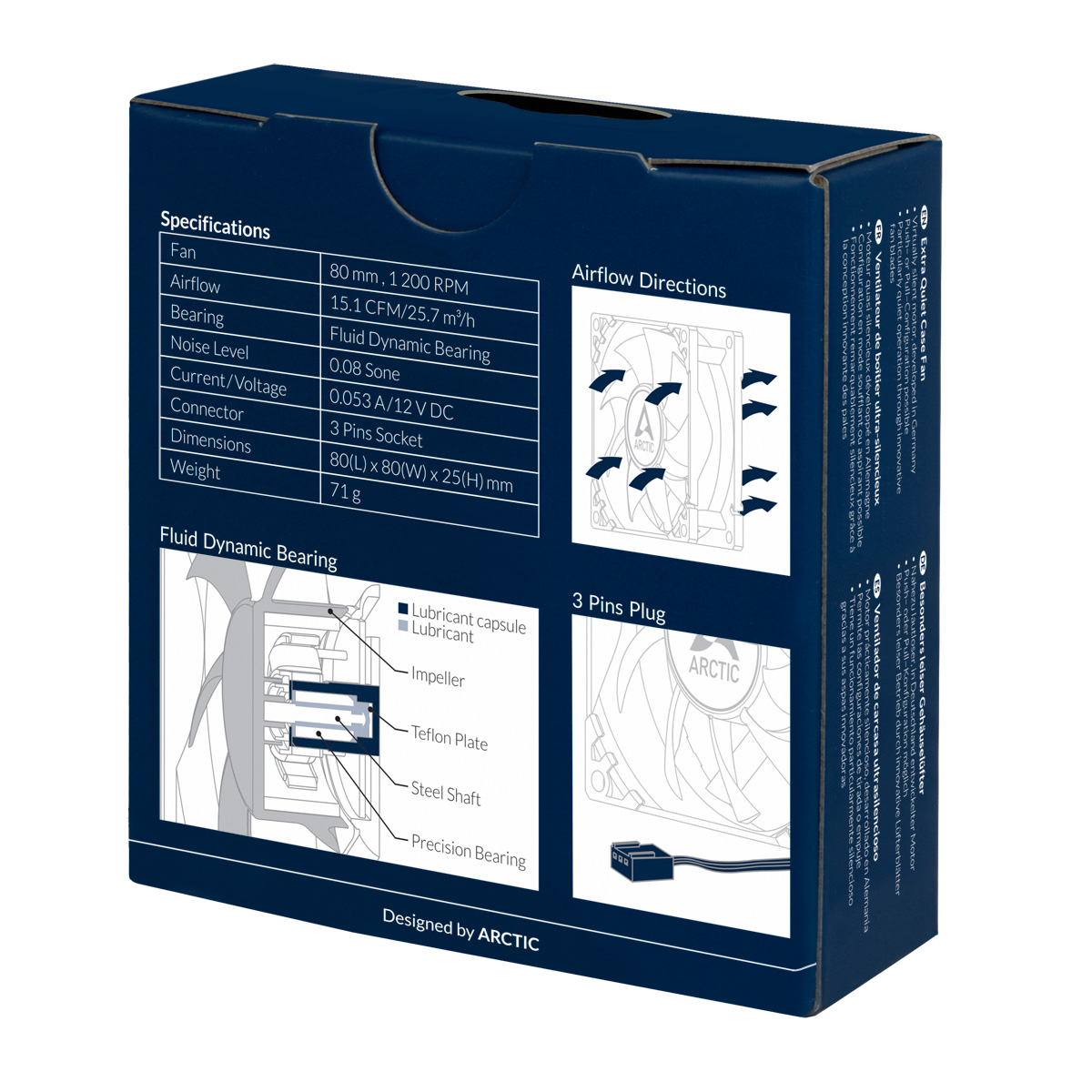

TECHNICAL SPECIFICATIONS
Performance | |
Fan Speed | 1200 rpm |
Airflow | 15.1 CFM / 25.7 m3/h |
Static Pressure | 0.54 mm/H2O |
Noise Level | 0.08 Sone |
Fan | |
Fan Frame | Standard |
Controll Type | Fixed Speed |
Connector | 3-Pin-Connector |
Fan Bearing | Fluid Dynamic Bearing |
Electric Characteristics | |
Typical Voltage | 12 V DC |
Starting Voltage | 4.5 V |
Current / Voltage | 0.053 A / 12 V |
Cable Leght | 400 mm |
Size & Weight | |
Lenght | 80 mm |
Width | 80mm |
Height | 25 mm |
Weight | 71 g |
