| Frekvence pamětí (GHz) | 14 |
|---|---|
| Modelová řada GPU | Radeon RX 5600 XT |
| Paměť | 6 GB |
| Počet portů Display port (DP) | 3 |
| Počet portů HDMI | 1 |
| Provedení grafiky | Interní |
| Rozhraní | PCI Express 4.x |
| Šířka paměťové sběrnice | 192-bit |
| Typ chlazení | aktivní chlazení |
| Typ paměti | GDDR6 |
| VR Ready | Ano |
| Výrobce GPU | AMD |
Počítače a kancelář Komponenty Grafické karty ASUS DUAL-RX5600XT-T6G-EVO 6GB/192-bit GDDR6 HDMI 3xDP

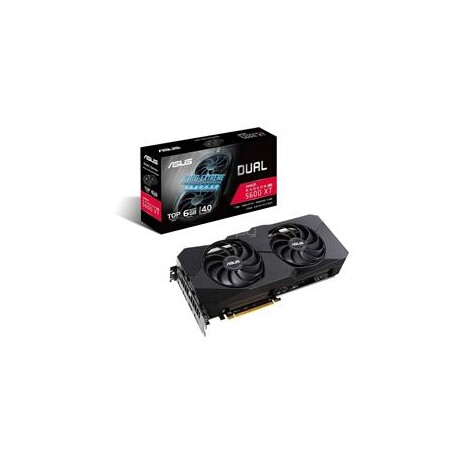

ASUS DUAL-RX5600XT-T6G-EVO 6GB/192-bit GDDR6 HDMI 3xDP
The ASUS Dual Radeon™ RX 5600 XT EVO offers a plug-and-play 1080p gaming experience
TOP Edition: GPU Boost Clock up to 1770 MHz (OC Mode)/ up to 1750 MHz (Gaming Mode). Memory Clock 14Gbps.
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
0dB Technology lets you enjoy light gaming in…
Kategorie: Grafické karty
Kód: 2841099PN: 90YV0EJ1-M0NA00Výrobce: ASUSZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.
Aktuálně není v nabídce
Popis produktu
The ASUS Dual Radeon™ RX 5600 XT EVO offers a plug-and-play 1080p
gaming experience
TOP Edition: GPU Boost Clock up to 1770 MHz (OC Mode)/ up to 1750 MHz (Gaming Mode). Memory Clock 14Gbps.
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
0dB Technology lets you enjoy light gaming in relative silence.
New and Improved Heatsink has contact points to cool both the VRM and on-board memory.
Auto-Extreme Technology uses automation to enhance reliability.
A protective backplate secures components during transportation and installation.
A 144-hour validation programputs cards through a series of stringent tests to ensure compatibility with the latest games.
Graphics Engine
AMD Radeon RX 5600 XT
Bus Standard
PCI Express 4.0
OpenGL
OpenGL®4.6
Video Memory
GDDR6 6GB
Engine Clock – OC Mode
up to 1660 MHz (Game clock**) / ~ 1770 MHz (Boost clock*)
Engine Clock – Gaming Mode
up to 1615 MHz (Game clock**) / ~ 1750 MHz (Boost clock*)
CUDA Core
2304
Memory Speed
14 Gbps
Memory Interface
192-bit
Resolution
Digital Max Resolution:7680x4320
Interface
HDMI Output : Yes x 1 (Native) (HDMI 2.0b)
Display Port : Yes x 3 (Native) (DisplayPort 1.4)
HDCP Support : Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
Yes
Recommended PSU
450W
Power Connectors
1 x 8-pin
Accessories
1 x Speedsetup manual
1 x Thank you card
Software
ASUS GPU Tweak II & Drivers: please download all software from the support site.
Dimensions
11.1 " x 5.2 " x 2.1 " Inch
28.3 x 13.2 x 5.2 Centimeter
Slot
2.7 slot
Note
*Boost frequency is the maximum expected GPU clock when lighter workloads are run under ideal thermal and electrical condition, set to typical TGP(Total Graphics Power). Actual individual boost clock results may vary.
** Game Frequency is the expected GPU clock when running typical gaming applications. Actual individual game clock results may vary.
*** Crossfire support DX12 and Vulkan only.
TOP Edition: GPU Boost Clock up to 1770 MHz (OC Mode)/ up to 1750 MHz (Gaming Mode). Memory Clock 14Gbps.
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
0dB Technology lets you enjoy light gaming in relative silence.
New and Improved Heatsink has contact points to cool both the VRM and on-board memory.
Auto-Extreme Technology uses automation to enhance reliability.
A protective backplate secures components during transportation and installation.
A 144-hour validation programputs cards through a series of stringent tests to ensure compatibility with the latest games.
Graphics Engine
AMD Radeon RX 5600 XT
Bus Standard
PCI Express 4.0
OpenGL
OpenGL®4.6
Video Memory
GDDR6 6GB
Engine Clock – OC Mode
up to 1660 MHz (Game clock**) / ~ 1770 MHz (Boost clock*)
Engine Clock – Gaming Mode
up to 1615 MHz (Game clock**) / ~ 1750 MHz (Boost clock*)
CUDA Core
2304
Memory Speed
14 Gbps
Memory Interface
192-bit
Resolution
Digital Max Resolution:7680x4320
Interface
HDMI Output : Yes x 1 (Native) (HDMI 2.0b)
Display Port : Yes x 3 (Native) (DisplayPort 1.4)
HDCP Support : Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
Yes
Recommended PSU
450W
Power Connectors
1 x 8-pin
Accessories
1 x Speedsetup manual
1 x Thank you card
Software
ASUS GPU Tweak II & Drivers: please download all software from the support site.
Dimensions
11.1 " x 5.2 " x 2.1 " Inch
28.3 x 13.2 x 5.2 Centimeter
Slot
2.7 slot
Note
*Boost frequency is the maximum expected GPU clock when lighter workloads are run under ideal thermal and electrical condition, set to typical TGP(Total Graphics Power). Actual individual boost clock results may vary.
** Game Frequency is the expected GPU clock when running typical gaming applications. Actual individual game clock results may vary.
*** Crossfire support DX12 and Vulkan only.
