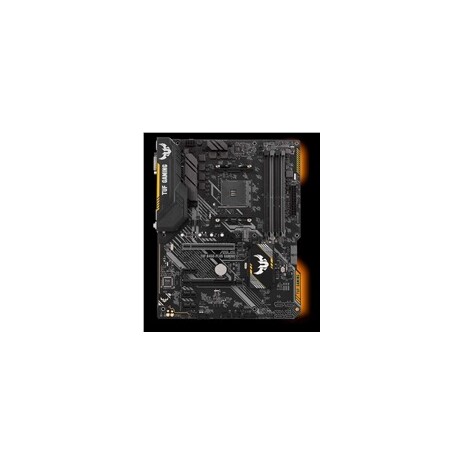

ASUS MB Sc AM4 TUF B450-PLUS GAMING II, AMD B450, 4xDDR4, VGA
TUF B450-PLUS GAMING
ASUS TUF B450-Plus Gaming AMD Ryzen 2 AM4 DDR4 HDMI DVI M.2 ATX Motherboard
2nd generation AMD Ryzen™ AM4 processors maximize connectivity and speed with NVMe M.2, USB 3.1 Gen2 and gigabit LAN
Military-grade TUF components like TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs maximize durability
TUF Protection with SafeSlot and Overvoltage…
Kategorie: Základní desky
Kód: 2928893PN: 90MB1650-M0EAY0Výrobce: ASUSZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.
Aktuálně není v nabídce
Popis produktu
TUF B450-PLUS GAMING
ASUS TUF B450-Plus Gaming AMD Ryzen 2 AM4 DDR4 HDMI DVI M.2 ATX Motherboard
- 2nd generation AMD Ryzen™ AM4 processors maximize connectivity and speed with NVMe M.2, USB 3.1 Gen2 and gigabit LAN
- Military-grade TUF components like TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs maximize durability
- TUF Protection with SafeSlot and Overvoltage protection ensures component stability and dependability
- Unmatched personalization with ASUS exclusive Aura Sync RGB lighting and additional RGB header
- 3-Year Warranty for guaranteed reliability built on military-grade engineering
TECHNICAL SPECIFICATIONS
CPU | AMD AM4 Socket AMD Ryzen™ 2nd
Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation
Processors Supports CPU up to 8 cores * Refer to www.asus.com for CPU support list |
Chipset | AMD B450 |
Memory | AMD Ryzen™ 2nd Generation/
Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation
Processors 4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
Graphic | Integrated in the AMD Ryzen™ with
Radeon™ Vega Graphics Processors Multi-VGA output support : HDMI/DVI-D ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz |
Multi-GPU Support | Supports AMD CrossFireX™ Technology |
Expansion Slots | AMD Ryzen™ 2nd Generation/
Ryzen™ 1st Generation Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD Ryzen™ with Radeon™ Vega Graphics Processor 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD B450 chipset 1 x PCIe 2.0 x16 (max at x4 mode) 3 x PCIe 2.0 x1 |
Storage | AMD Ryzen™ 2nd Generation/
Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation
Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 2 x SATA 6Gb/s port(s) AMD B450 chipset: 4 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 |
LAN | Realtek RTL8111H TUF LANGuard |
Audio | Realtek ALC887-VD2 8-Channel High
Definition Audio CODEC * Audio Feature: - Exclusive DTS Custom for GAMING Headsets. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality. |
USB Ports | AMD Ryzen™ 2nd Generation/
Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st
Generation: 2 x USB 3.1 Gen 1 port(s) (2 at back panel, Type-A) AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation: 1 x USB 3.1 Gen 1 port(s) (1 at back panel, USB Type-CTM) AMD B450 chipset: 2 x USB 3.1 Gen 2 port(s) (2 at back panel, Type-A) AMD B450 chipset: 2 x USB 3.1 Gen 1 port(s) (2 at mid-board) AMD B450 chipset: 6 x USB 2.0 port(s) (2 at back panel, 4 at mid-board) |
Special Features | ASUS TUF
PROTECTION - ASUS SafeSlot: Protect your graphics card Investment - ASUS ESD Guard: Enhanced ESD protection - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 6 Phase digital power design AURA: - Aura Lighting Control - Aura RGB Strip Headers ASUS Exclusive Features: - AI Suite 3 - Ai Charger - PC Cleaner ASUS Quiet Thermal Solution: - Stylish Fanless Design Heat-sink solution & MOS Heatsink - ASUS Fan Xpert 4 Core ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design: - ASUS Q-Shield - ASUS Q-Slot - ASUS Q-DIMM Overclocking Protection: - ASUS C.P.R.(CPU Parameter Recall) |
Back I/O Ports | 1 x PS/2 keyboard/mouse combo
port(s) 1 x DVI-D 1 x HDMI 1 x LAN (RJ45) port(s) 1 x 5Gb/s port(s) USB Type-CTM 2 x USB 3.1 Gen 2 (teal blue)Type-A, 2 x USB 3.1 Gen 1 (blue) Type-A, 2 x USB 2.0 3 x Audio jack(s) |
Internal I/O Ports | 1 x Aura RGB Strip Header 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header |
Accessories | User's manual ASUS Q-Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x TUF GAMING Sticker 1 x TUF Certification card(s) |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP,SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information |
Manageability | WOL by PME, PXE |
Operating System | Windows 10 64-bit |
Form Factor | ATX Form Factor 12.0 x 9.6 inch (30.5 x 24.4 cm) |
Note | *Use a chassis with HD audio module in the front panel to support an 8-channel audio output. |
