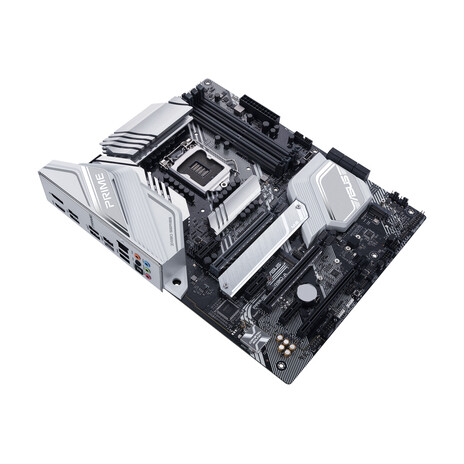

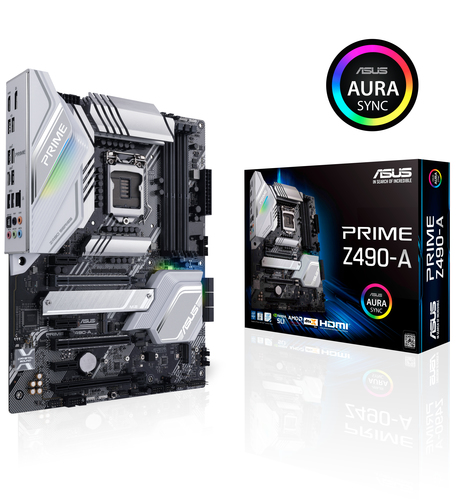

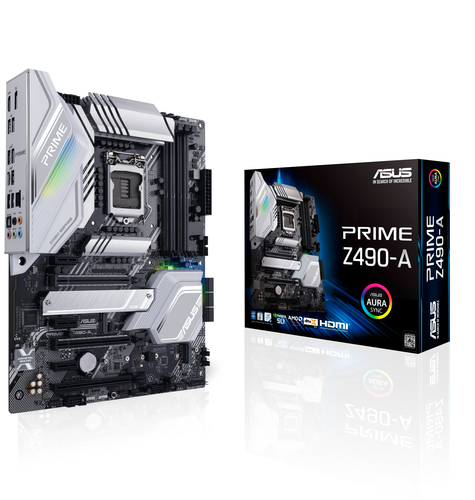

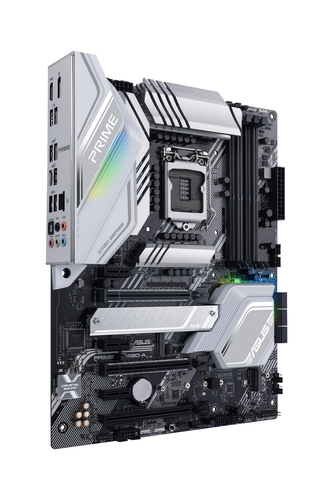

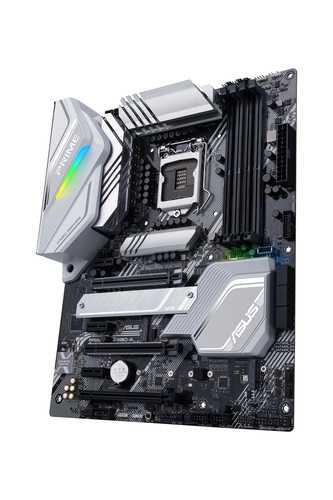

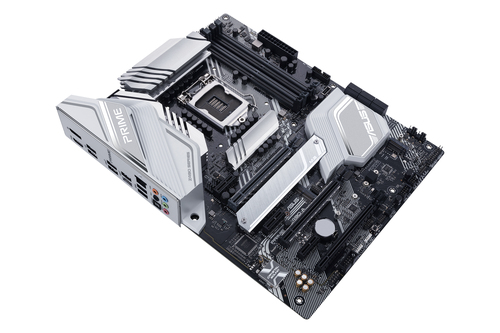

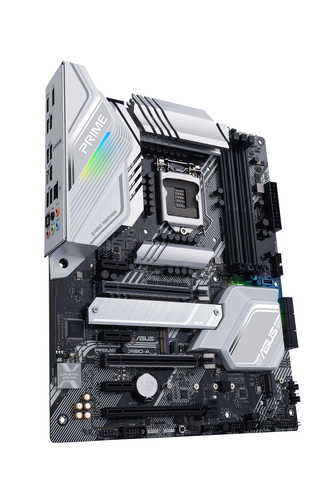

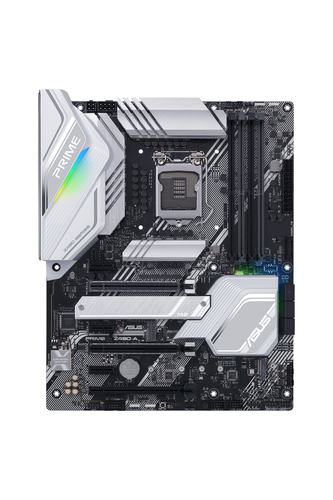

ASUS MB Sc LGA 1200 PRIME Z490-A, Intel Z490, 4xDDR4, VGA
ASUS MB Sc LGA 1200 PRIME Z490-A, Intel Z490, 4xDDR4, VGAASUS MB Sc LGA 1200 PRIME Z490-A, Intel Z490, 4xDDR4, VGAASUS MB Sc LGA 1200 PRIME Z490-A, Intel Z490, 4xDDR4, VGAASUS MB Sc LGA 1200 PRIME Z490-A, Intel Z490, 4xDDR4, VGAASUS MB Sc LGA 1200 PRIME Z490-A, Intel Z490, 4xDDR4, VGAASUS MB Sc LGA 1200 PRIME Z490-A, Intel Z490, 4xDDR4, VGA
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

ASUS MB Sc LGA 1200 PRIME Z490-A, Intel Z490, 4xDDR4, VGA

PRIME Z390-A Intel LGA 1151 ATX motherboard with AI Overclocking, DDR4 4266 MHz, Dual M.2, HDMI, Intel Optane memory ready, SATA 6Gb/s, USB 3.1 Gen 2 Type-C OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking Enhanced power solution: Premium components provide better power…
Kategorie: Základní desky
Kód: 2777286PN: 90MB1390-M0EAY0Výrobce: ASUSZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.
Aktuálně není v nabídce

Popis produktu

PRIME Z390-A

Intel LGA 1151 ATX motherboard with AI Overclocking, DDR4 4266 MHz, Dual M.2, HDMI, Intel Optane memory ready, SATA 6Gb/s, USB 3.1 Gen 2 Type-C

  • OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
  • Enhanced power solution: Premium components provide better power efficiency
  • UEFI BIOS: New UEFI options include a search function that allows you to find settings easily
  • Industry-leading cooling options: Comprehensive controls for fans and AIO pimp, via Fan Xpert 4 or the acclaimed UEFI
  • M.2 heatsink: Ultra-efficient heatsink reduces M.2 SSD temperatures by up to 20°C for unthrottled transfer speeds and enhanced reliability
  • Next-gen connectivity: Supreme flexibility with Intel Optane memory ready, Intel RST support, Thunderbolt 3 header and dual M.2 support
  • ASUS Aura Sync: Controllable onboard RGB lighting easily syncs with an ever-growing portfolio of Aura-capable hardware



TECHNICAL SPECIFICATIONS

CPU Intel Socket 1151 for 8th Generation Core™ Pentium/Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
Chipset Intel Z390
Memory 4 x DIMM, Max. 64GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.) /3733(O.C.) /3600(O.C.) /3466(O.C.) /3400(O.C.) /3333(O.C.) /3300(O.C.) /3200(O.C.) /3000(O.C.) /2800(O.C.) /2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor.
Graphic Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support: HDMI/DVI-D ports
- Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Multi-GPU Support Supports NVIDIA 2-Way SLI™ Technology
Supports AMD 3-Way CrossFireX™ Technology
Expansion Slots 2 x PCIe 3.0/2.0 x16 (x16, x8/x8, x8/x4+x4*, x8+x4+x4/x0**) *1
1 x PCIe 3.0/2.0 x16 (max at x4 mode) *4
3 x PCIe 3.0/2.0 x1
* For 2 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_2 slot, enable this card under BIOS settings.
** For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings.
Storage Intel Z390 Chipset:
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*5
6 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10
Intel Optane™ Memory Ready
Intel CPU with Intel Rapid Storage Technology support (RAID 0 & RAID 1)
LAN Intel I219V, 1 x Gigabit LAN Controller(s)
ASUS Turbo LAN Utility
ASUS LAN Guard
Audio Realtek ALC S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
- Power pre-regulator reduces power input noise to ensure consistent performance
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/192kHz playback *6
Audio Feature:
- DTS Connect
- DTS Headphone: X
- Optical S/PDIF out port(s) at back panel
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
USB Ports Intel Z390 Chipset:
4 x USB 3.1 Gen 2 port(s)
Intel Z390 Chipset:
4 x USB 3.1 Gen 1 port(s) (2 at mid-board)
Intel Z390 Chipset:
6 x USB 2.0 port(s) (4 at mid-board)
Special Features 5-Way Optimization by Dual Intelligent Processors 5
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App
- Procool Power connector design
TPU
- Auto Tuning, TPU, GPU Boost
Fan Xpert4
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
ASUS 5X Protection III:
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: Digital 9 phase power design with Dr. MOS
ASUS Optimem II:
- Improved DDR4 Stability
ASUS EPU:
- EPU
ASUS Exclusive Features:
- MemOK! II
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 4
ASUS EZ DIY:
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design:
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
AURA: RGB Lighting Control
Turbo APP
- featuring system performance tuning for selected applications
M.2 Onboard (The latest transfer technologies with up to 32Gb/s data transfer speeds)
Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
3 x USB 3.1 Gen 2 (teal blue)Type-A,
1 x USB 3.1 Gen 2 Type-C
2 x USB 3.1 Gen 1 (blue) Type-A
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
Internal I/O Ports 2 x Aura RGB Strip Headers
1 x USB 3.1 Gen 1 front panel TypeC™ connector
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x TPM header
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x AIO_PUMP connector (1 x 4 -pin)
1 x W_PUMP+ connector
1 x S/PDIF out header(s)
1 x Thunderbolt header (5-pin) for ASUS ThunderboltEX series support
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x MemOK! II switch(es)
1 x CPU OV
1 x Power-on button(s)
1 x Clear CMOS jumper(s)
1 x Node Connector(s)
1 x EXT_Fan header
1 x Thermal sensor connector
1 x M.2 Fan Header
Accessories User's manual
ASUS Q-Shield
3 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x SLI HB BRIDGE(2-WAY-M)
1 x Q-Connector
1 x SCD
1 x CPU Fan Holder
BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 AI OC Guide, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability WfM 2.0, DMI 3.0, WOL by PME, PXE
Support Disc Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)
Operating System Windows 10 64-bit
Form Factor ATX Form Factor
12.0 inch x 9.6 inch (30.5 cm x 24.4 cm)
Note *1 PCIEX16_1 slot supports up to 3 Intel PCIe NVME SSDs via a Hyper M.2 X16 series Card. *3
*2 PCIEX16_2 slot supports up to 2 Intel PCIe NVME SSDs via a Hyper M.2 X16 series Card. *3
*3 Hyper M.2 X16 series card sold separately. Install a Hyper M.2 X16 series card and enable this card under BIOS settings.
*4 The PCIe x16_3 slot shares bandwidth with SATA_5 and SATA_6. The PCIe x16_3 is default set at x2 mode.
*5 The M.2_1 socket shares bandwidth with SATA_1 port when using M.2 SATA devices. Adjust BIOS settings to use a SATA device.
*6 Only available under Windows 10.

Parametry

BlueToothNe
COM port (interní)Ano
DisplayPort / miniDisplayPortAno
DVINe
Grafická kartaAno (v závislosti na CPU)
HDMIAno
ChipsetZ490
IEEE 1394Ne
Integrované CPU na MBNe
LPT port (interní)Ne
Max. velikost op. paměti (GB)128
Maximální frekvence pamětí4800
PaticeLGA 1200
Počet konektorů SATA 6Gb/s6
Počet LAN výstupů1x LAN konektor
Počet paměťových slotů4
Počet pinů USB 2.0 (interní)2
Počet pinů USB 3.x (interní)1
Počet slotů M.22
Počet slotů PCIe x13
Počet slotů PCIe x163
Počet USB 2.0 (externí)2
Počet USB 3.x (externí)5
Podpora pro paměti typuDDR4
Podpora pro paměti typu ECCNe
Podpora vProNe
RAID řadičAno
ThunderBolt (interní)Ano
TPM HeaderNe
Typ síťové kartyIntel
Velikost základní deskyATX
VGANe
Výrobce chipsetuIntel
WiFiNe
XMPNe
