| BlueTooth | Ne |
|---|---|
| COM port (interní) | Ano |
| DisplayPort / miniDisplayPort | Ano |
| DVI | Ano |
| Grafická karta | Ano (v závislosti na CPU) |
| HDMI | Ano |
| Chipset | Z490 |
| IEEE 1394 | Ne |
| Integrované CPU na MB | Ne |
| LPT port (interní) | Ne |
| Max. velikost op. paměti (GB) | 128 |
| Maximální frekvence pamětí | 4400 |
| Patice | LGA 1200 |
| Počet konektorů SATA 6Gb/s | 5 |
| Počet LAN výstupů | 1x LAN konektor |
| Počet paměťových slotů | 4 |
| Počet pinů USB 2.0 (interní) | 2 |
| Počet slotů M.2 | 2 |
| Počet slotů PCIe x1 | 2 |
| Počet slotů PCIe x16 | 2 |
| Počet USB 2.0 (externí) | 2 |
| Počet USB 3.x (externí) | 3 |
| Podpora pro paměti typu | DDR4 |
| Podpora pro paměti typu ECC | Ne |
| Podpora vPro | Ne |
| RAID řadič | Ano |
| ThunderBolt (interní) | Ne |
| TPM Header | Ano |
| Typ síťové karty | Intel |
| Velikost základní desky | mikro ATX |
| VGA | Ne |
| Výrobce chipsetu | Intel |
| WiFi | Ne |
| XMP | Ano |
Počítače a kancelář Komponenty Základní desky ASUS MB Sc LGA 1200 PRIME Z490M-PLUS, Intel Z490, 4xDDR4, VGA, mATX

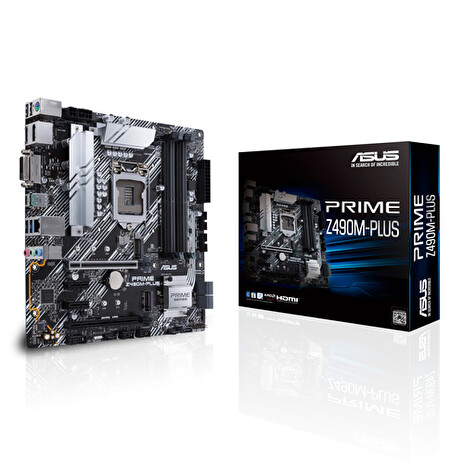

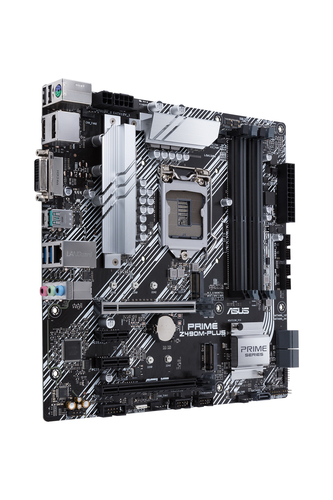

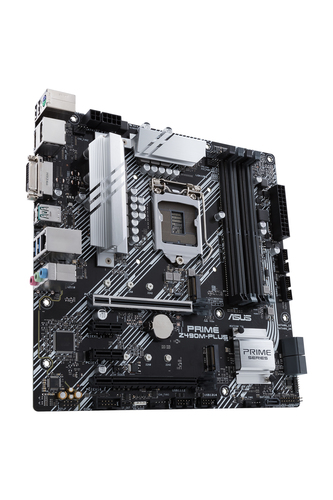

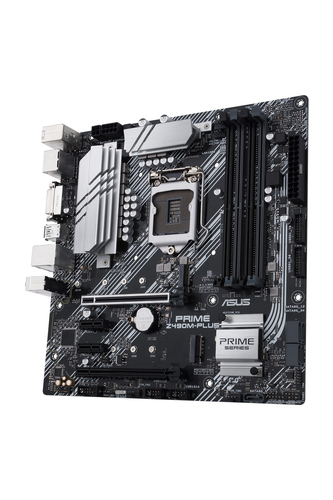

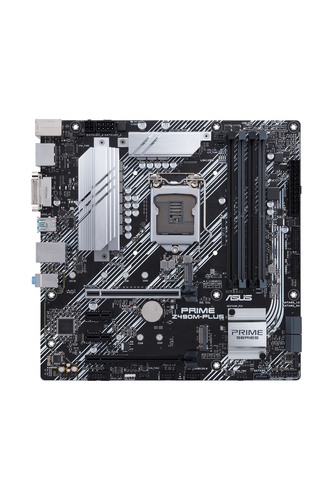

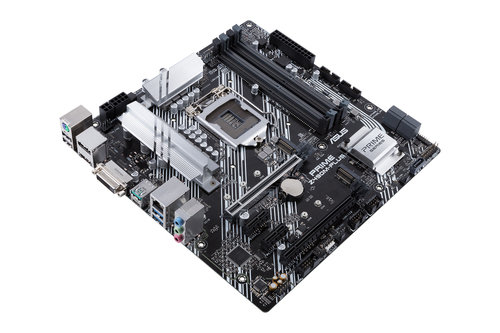

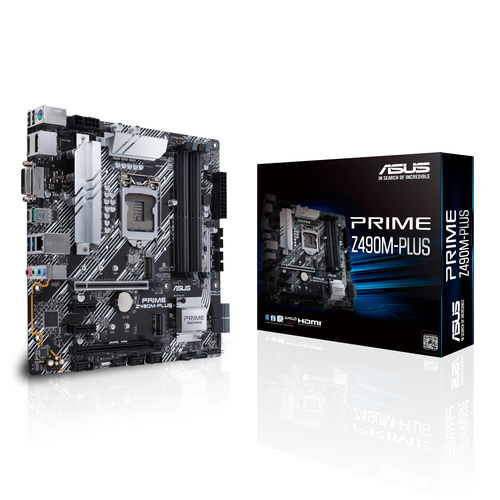

ASUS MB Sc LGA 1200 PRIME Z490M-PLUS, Intel Z490, 4xDDR4, VGA, mATX
PRIME Z490M-PLUS
Intel Z490 (LGA 1200) micro ATX motherboard with dual M.2, 9 DrMos power stages, HDMI, DisplayPort, DVI, SATA 6 Gbps, Intel 1 Gb Ethernet, USB 3.2 Gen 2 Type-A and Type-C
Intel LGA 1200 socket: Ready for 10th Gen Intel Core™ processors
Enhanced power solution: 8+1 DrMOS power stages, 6-layer PCB, ProCool sockets, alloy chokes and durable capacitors for…
Kategorie: Základní desky
Kód: 2777287PN: 90MB12W0-M0EAY0Výrobce: ASUSZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.
Aktuálně není v nabídce
Popis produktu
PRIME Z490M-PLUS
Intel Z490 (LGA 1200) micro ATX motherboard with dual M.2, 9 DrMos power stages, HDMI, DisplayPort, DVI, SATA 6 Gbps, Intel 1 Gb Ethernet, USB 3.2 Gen 2 Type-A and Type-C
- Intel LGA 1200 socket: Ready for 10th Gen Intel Core™ processors
- Enhanced power solution: 8+1 DrMOS power stages, 6-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
- Comprehensive cooling: VRM heatsink, hybrid fan headers and Fan Xpert 4
- ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory overclocking
- Ultrafast connectivity: Dual M.2, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A and Type-C support
TECHNICAL SPECIFICATIONS
| CPU | Intel Socket 1200 for 10th Gen Intel
Core™, Pentium Gold and Celeron Processors * Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list **Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel Z490 |
| Memory | 4 x DIMM, Max. 128GB, DDR4
4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133
MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem * 10th Gen Intel Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphic | Integrated Graphics Processor 1 x DisplayPort 1.4 ** 1 x HDMI 1.4b 1 x DVI-D *Graphics specifications may vary between CPU types. **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update. |
| Multi-GPU Support | Supports AMD 2-Way CrossFireX Technology |
| Expansion Slots | Intel 10th Gen
Processors 1 x PCIe 3.0 x16 (x16 mode) *1 Intel Z490 Chipset 1 x PCIe 3.0 x16 (x4 mode) 2 x PCIe 3.0 x1 |
| Storage | Total supports 2 x M.2 slots
and 5 x SATA 6Gb/s ports Intel Z490 Chipset: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 5 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports Intel Optane™ Memory Ready |
| LAN | Intel I219-V 1Gb Ethernet |
| Audio | Realtek ALC887 8-Channel High
Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature: - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors |
| USB Ports | Rear USB Port ( Total
6 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 8 ) 4 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) |
| Software Features | ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility EPU Digi+ VRM Fan Xpert 4 - EZ update AI Charger WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| ASUS Special Features | ASUS 5X PROTECTION III - ASUS DIGI+ VRM (- Digital power design with Dr. MOS) - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core+ - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - Procool |
| Back I/O Ports | 1 x PS/2 keyboard/mouse combo
port(s) 1 x DVI-D 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C) 2 x USB 3.2 Gen 1 Type-A 2 x USB 2.0 3 x Audio jack(s) |
| Internal I/O Ports | 1 x CPU Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x Lighting Control RGB Strip Header(s) 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 5 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 4-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header |
| Accessories | I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD User manual |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows 10 64-bit |
| Form Factor | mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| Note | *1 Support PCIe bifurcation for RAID on
CPU function. *2 When a device in SATA mode is installed on the M.2_2 socket, SATA 6G_1 port cannot be used. |
