| BlueTooth | Ne |
|---|---|
| COM port (interní) | Ne |
| DisplayPort / miniDisplayPort | Ano |
| DVI | Ne |
| Grafická karta | Ano (v závislosti na CPU) |
| HDMI | Ano |
| Chipset | Z490 |
| IEEE 1394 | Ne |
| Integrované CPU na MB | Ne |
| LPT port (interní) | Ne |
| Max. velikost op. paměti (GB) | 128 |
| Maximální frekvence pamětí | 4600 |
| Patice | LGA 1200 |
| Počet konektorů SATA 6Gb/s | 6 |
| Počet LAN výstupů | 1x LAN konektor |
| Počet paměťových slotů | 4 |
| Počet pinů USB 2.0 (interní) | 2 |
| Počet pinů USB 3.x (interní) | 2 |
| Počet slotů M.2 | 2 |
| Počet slotů PCIe x1 | 1 |
| Počet slotů PCIe x16 | 3 |
| Počet USB 2.0 (externí) | 1 |
| Počet USB 3.x (externí) | 5 |
| Podpora pro paměti typu | DDR4 |
| Podpora pro paměti typu ECC | Ne |
| Podpora vPro | Ne |
| RAID řadič | Ano |
| ThunderBolt (interní) | Ano |
| TPM Header | Ne |
| Typ síťové karty | Intel |
| Velikost základní desky | ATX |
| VGA | Ne |
| Výrobce chipsetu | Intel |
| WiFi | Ne |
| XMP | Ne |
Počítače a kancelář Komponenty Základní desky ASUS MB Sc LGA 1200 ROG STRIX Z490-H GAMING, Intel Z490, 4xDD4, VGA

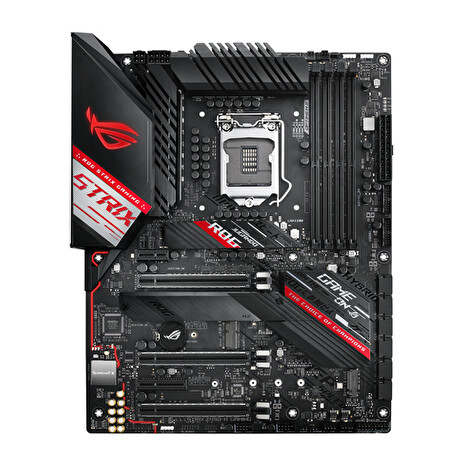

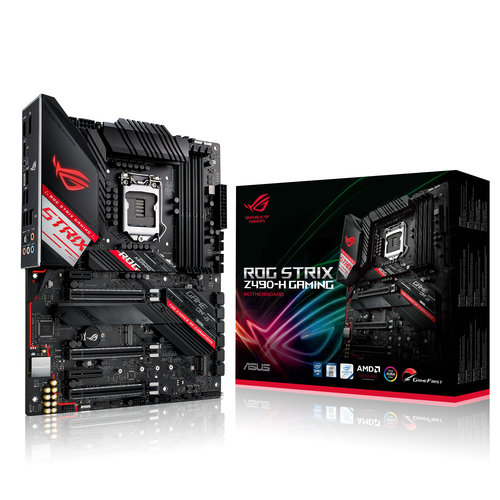

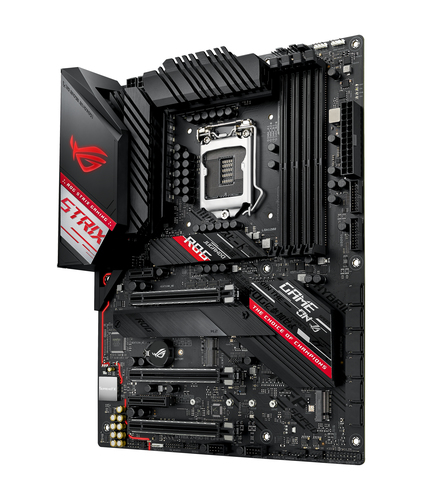

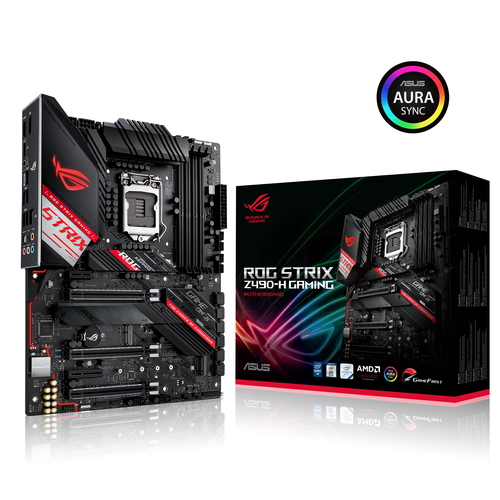

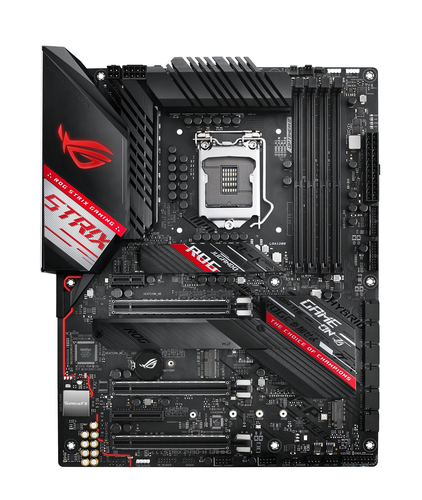

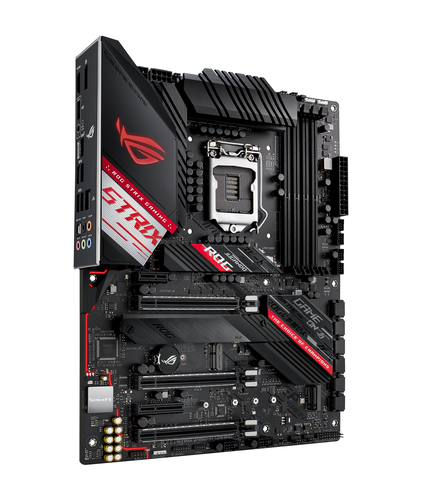

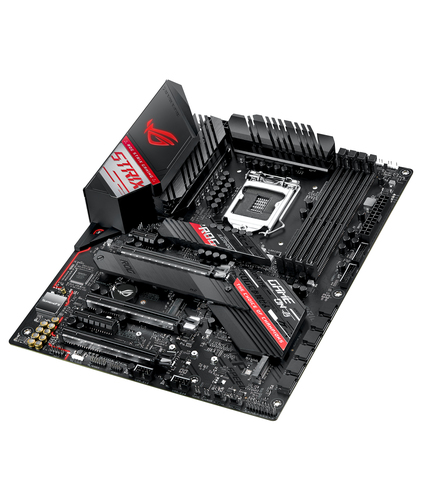

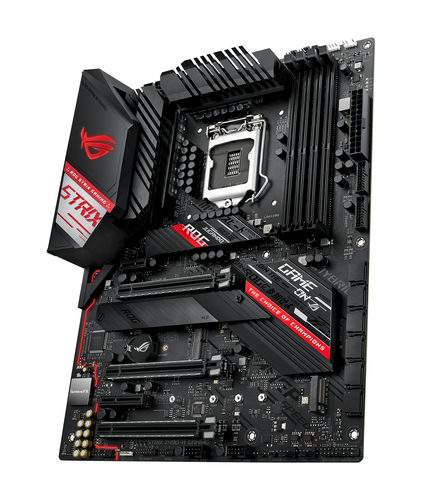

ASUS MB Sc LGA 1200 ROG STRIX Z490-H GAMING, Intel Z490, 4xDD4, VGA
ROG STRIX Z390-H GAMING
Intel Z390 LGA 1151 ATX gaming motherboard with DDR4 4266 MHz+ support, dual M.2, SATA 6Gbps, HDMI, and USB 3.1 Gen 2
LGA1151 socket for 9th/ 8th Gen Intel Core™ desktop processors
Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A connectors
Gaming networking: Intel Gigabit Ethernet, LANGuard and GameFirst
Gaming audio: SupremeFX S1220A…
Kategorie: Základní desky
Kód: 2777285PN: 90MB12S0-M0EAY0Výrobce: ASUSZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.
Aktuálně není v nabídce
Popis produktu
ROG STRIX Z390-H GAMING
Intel Z390 LGA 1151 ATX gaming motherboard with DDR4 4266 MHz+ support, dual M.2, SATA 6Gbps, HDMI, and USB 3.1 Gen 2
- LGA1151 socket for 9th/ 8th Gen Intel Core™ desktop processors
- Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A connectors
- Gaming networking: Intel Gigabit Ethernet, LANGuard and GameFirst
- Gaming audio: SupremeFX S1220A teams with Sonic Studio III to create an aural landscape that draws you deeper into the action
- Easy DIY: Pre-mounted I/O shield, ASUS SafeSlot and premium components for maximum endurance
TECHNICAL SPECIFICATIONS
| CPU | Intel Socket 1151 9th / 8th Gen Intel
Core™, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 * The Intel Turbo Boost Technology 2.0 support depends on the CPU types. |
| Chipset | Intel Z390 |
| Memory | 4 x DIMM, Max. 64GB, DDR4
4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.) /3600(O.C.)
/3466(O.C.) /3400(O.C.) /3300(O.C.) /3200(O.C.) /3000(O.C.)
/2800(O.C.) /2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphic | Integrated Graphics Processor- Intel HD
Graphics support Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 1.4b with max. resolution 4096 x 2304 @ 24 Hz / 3840 x 2160 @ 30 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz *1 |
| Multi-GPU Support | Supports NVIDIA 2-Way SLI™
Technology Supports AMD 3-Way CrossFireX™ Technology |
| Expansion Slots | Socket 1151 for 9th / 8th Gen
Intel Core™, Pentium Gold and Celeron processors 2 x PCIe 3.0/2.0 x16 (x16 or dual x8) Intel Z390 Chipset 1 x PCIe 3.0/2.0 x16 (x2 mode) 3 x PCIe 3.0/2.0 x1 |
| Storage | Intel Z390
Chipset: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Optane™ Memory Ready *2 |
| LAN | Intel I219V, Dual interconnect between
the Integrated Media Access Controller (MAC) and Physical Layer
(PHY) Anti-surge LANGuard ROG GameFirst Technology |
| Audio | ROG SupremeFX 8-Channel High Definition
Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback *3 Audio Feature: - SupremeFX Shielding™ Technology - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III |
| USB Ports | Intel Z390
Chipset: 4 x USB 3.1 Gen 2 port(s) (4 at back panel, red) Intel Z390 Chipset: 6 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 4 at mid-board) Intel Z390 Chipset: 4 x USB 2.0 port(s) (4 at mid-board) |
| ROG Exclusive Features | ROG Exclusive
Software - RAMCache III - CPU-Z - GameFirst V - Sonic Studio III + Sonic Studio Link - Sonic Radar III |
| Special Features | Fan Xpert4 - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control ASUS Optimem II: - Improved DDR4 Stability ASUS EPU: - EPU AURA: - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices ASUS Exclusive Features: - MemOK! II - AI Suite 3 - Ai Charger - Armoury Crate - Pre-mounted I/O Shield - 3D Printing Friendly ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design: - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM Gaming Aesthetics: - AURA-RGB Lighting DIY Friendly Design - Procool - SafeSlot - Digi+ VRM - DRAM Overcurrent Protection - Highly Durable components - ESD Guards |
| Back I/O Ports | 1 x PS/2 keyboard/mouse combo
port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.1 Gen 2 Type-A 2 x USB 3.1 Gen 1 1 x Optical S/PDIF out 5 x Audio jack(s) |
| Internal I/O Ports | 1 x AAFP connector 1 x Aura RGB Strip Header 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x TPM connector(s) 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x MemOK! II switch(es) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Thermal sensor connector 1 x CPU_OV jumper |
| Accessories | User's manual 1 x ASUS Fan Holder 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x SLI HB BRIDGE(2-WAY-M) 1 x ROG Strix stickers 1 x Extension Cable for RGB strips (80 cm) |
| BIOS | 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1. |
| Manageability | WOL, PXE |
| Support Disc | Drivers ASUS Utilities EZ-update Anti-virus software (OEM version) |
| Operating System | Windows 10 64-bit |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
| Note | *1 DP 1.2 Multi-Stream Transport
compliant, supports DP 1.2 monitor daisy chain up to 3
displays. *2 Intel Optane Technology only supported when using 8th Generation Intel Processors. Before using Intel Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website. *3 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |
