BlueTooth | Ne |
---|---|
COM port (interní) | Ano |
DisplayPort / miniDisplayPort | Ano |
DVI | Ne |
Grafická karta | Ano (v závislosti na CPU) |
HDMI | Ano |
Chipset | Z490 |
IEEE 1394 | Ne |
Integrované CPU na MB | Ne |
LPT port (interní) | Ne |
Max. velikost op. paměti (GB) | 128 |
Maximální frekvence pamětí | 4800 |
Patice | LGA 1200 |
Počet konektorů SATA 6Gb/s | 6 |
Počet LAN výstupů | 1x LAN konektor |
Počet paměťových slotů | 4 |
Počet pinů USB 2.0 (interní) | 2 |
Počet pinů USB 3.x (interní) | 1 |
Počet slotů M.2 | 2 |
Počet slotů PCIe x1 | 3 |
Počet slotů PCIe x16 | 2 |
Počet USB 3.x (externí) | 5 |
Podpora pro paměti typu | DDR4 |
Podpora pro paměti typu ECC | Ne |
Podpora vPro | Ne |
RAID řadič | Ano |
ThunderBolt (interní) | Ano |
TPM Header | Ne |
Typ síťové karty | Intel |
Velikost základní desky | ATX |
VGA | Ne |
Výrobce chipsetu | Intel |
WiFi | Ne |
XMP | Ano |
Počítače a kancelář Komponenty Základní desky ASUS MB Sc LGA 1200 TUF Z490-PLUS GAMING, Intel Z490, 4xDDR4, VGA

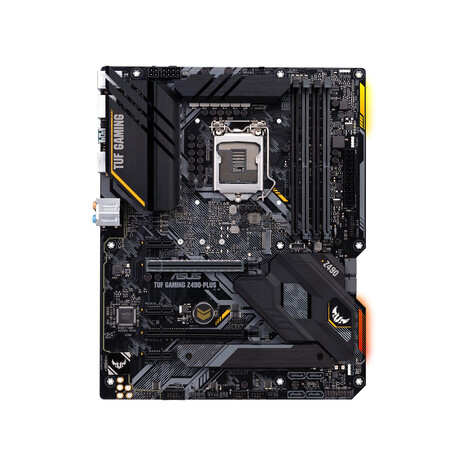

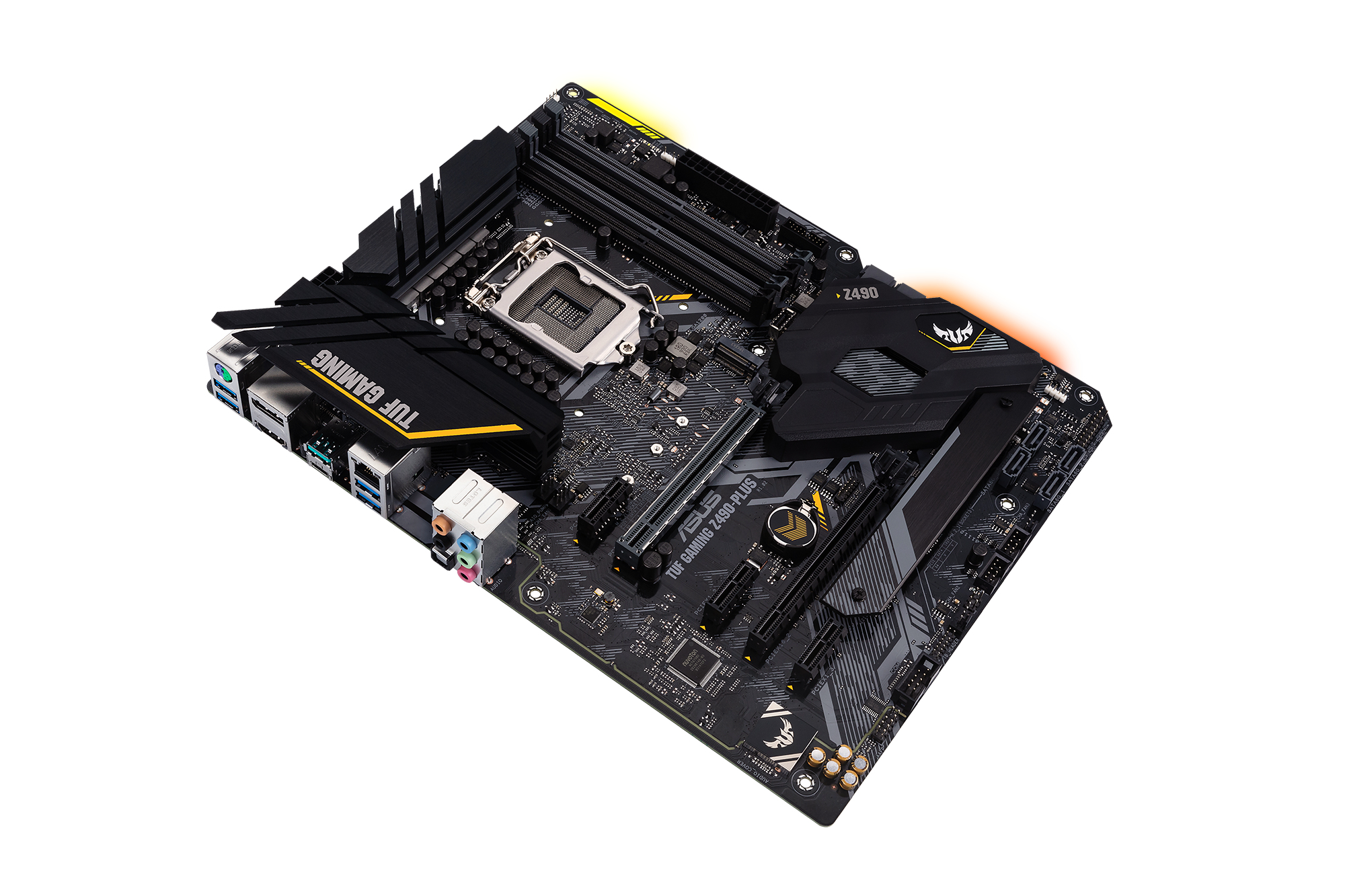

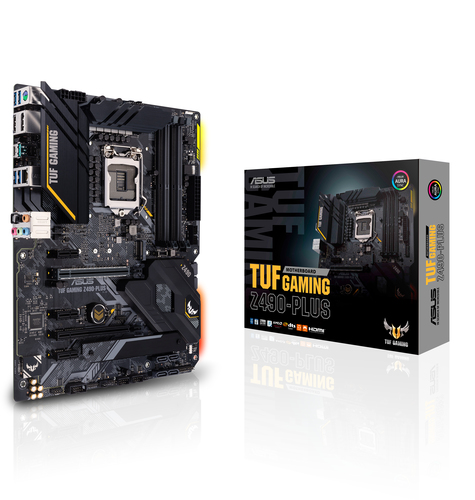

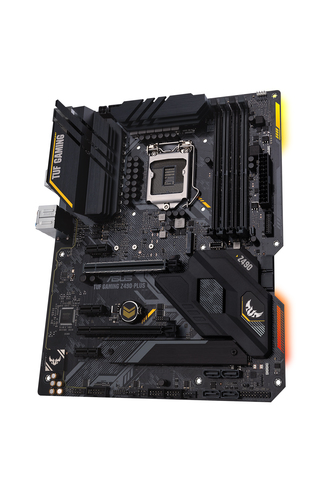

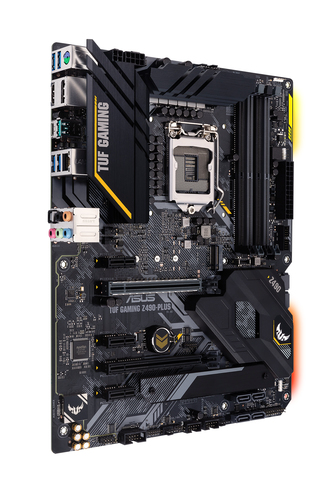

ASUS MB Sc LGA 1200 TUF Z490-PLUS GAMING, Intel Z490, 4xDDR4, VGA
TUF Z390-PLUS GAMING
Intel Z390 ATX gaming motherboard with OptiMem II, Aura Sync RGB LED lighting, DDR4 4266+ MHz support, 32Gbps M.2, Intel Optane memory ready, and native USB 3.1 Gen 2.
TUF Protection: SafeSlot, ESD guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability
Military-grade TUF Components: TUF LANGuard…
Kategorie: Základní desky
Kód: 2784065PN: 90MB1340-M0EAY0Výrobce: ASUSZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.
Aktuálně není v nabídce
Popis produktu
TUF Z390-PLUS GAMING
Intel Z390 ATX gaming motherboard with OptiMem II, Aura Sync RGB LED lighting, DDR4 4266+ MHz support, 32Gbps M.2, Intel Optane memory ready, and native USB 3.1 Gen 2.
- TUF Protection: SafeSlot, ESD guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability
- Military-grade TUF Components: TUF LANGuard, TUF chokes, TUF capacitors, and TUF MOSFETs for maximum durability
- OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- MemOK! II: Automatically fixes boot failures that arise due to memory overclocking and instability
- Realtek S1200A Codec: Features an unprecedented 108dB signal-to-noise ratio for the stereo line-out and a 103dB SNR for the line-in, providing pristine audio quality
- GPU Temperature Sensing & Fan Xpert 4: Ensures every fan achieves the best balance of cooling performance and acoustics
- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear
TECHNICAL SPECIFICATIONS
CPU | Intel Socket 1151 9th / 8th Gen Intel
Core™, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 3.0 * Refer to www.asus.com for CPU support list * The Intel Turbo Boost Technology 3.0 Support Depends on the CPU types. |
Chipset | Intel Z390 |
Memory | 4 x DIMM, Max. 64GB, DDR4
4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.) / 3733(O.C.) /
3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) /
3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666/2400/2133 MHz Non-ECC,
Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor. |
Graphic | Integrated Graphics Processor- Intel
UHD Graphics support Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Supports Intel InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays |
Multi-GPU Support | Supports AMD CrossFireX™ Technology |
Expansion Slots | 1 x PCIe 3.0/2.0 x16 (x16 or
x8+x4+x4) 1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1 4 x PCIe 3.0/2.0 x1 *1 *For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings. |
Storage | Intel Z390 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3 6 x SATA 6Gb/s port(s), gray, *3 Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports Intel Optane™ Memory Ready Intel CPU with Intel Rapid Storage Technology support (RAID 0 & RAID 1) PCIEX16_1 slot supports up to 3 Intel PCIe NVME SSDs via a Hyper M.2 X16 series Card*4 |
LAN | Intel I219V, featuring Turbo LAN TUF LANGuard Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY) |
Audio | Realtek ALC S1200A 8-Channel High
Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity * Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
USB Ports | Intel Z390
Chipset: 2 x USB 3.1 Gen 2 port(s) (2 at back panel, Type-A) Intel Z390 Chipset: 8 x USB 3.1 Gen 1 port(s) (4 at back panel, Type-A, 4 at mid-board) Intel Z390 Chipset: 4 x USB 2.0/1.1 port(s) (4 at mid-board) |
Special Features | Fan Xpert4 - Advanced fan and liquid controls for ultimate cooling and quietness ASUS TUF PROTECTION - ASUS DIGI + VRM: 8+1 Phase digital power design - ASUS SafeSlot: Protect your graphics card Investment - ASUS ESD Guard: Enhanced ESD protection - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! ASUS Optimem II: - Optimem (Improved DDR4 stability) ASUS EPU: - EPU TUF ENGINE! Power Design: - TUF Components (Choke, Cap. & MOSFET; certified by military-standard) AURA: - Aura Lighting Control - Aura RGB Strip Headers ASUS Exclusive Features: - AI Suite 3 - Ai Charger - Turbo LAN - PC Cleaner - File Transfer - ASUS C.P.R.(CPU Parameter Recall) ASUS Quiet Thermal Solution: - Stylish Fanless Design: PCH Heat-sink & MOS Heat-sink & M.2 Heat-sink solution - ASUS Fan Xpert 4 ASUS EZ DIY: - ASUS O.C. Tuner - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design: - ASUS Q-Slot - ASUS Q-DIMM M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds) MemOK! II - Enhance memory compatibility. More smart and convenient. Keep high performance. (Shorten the PC starting time) Q-Installer - Auto download driver and software. Friendly for first PC builder. |
Back I/O Ports | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 Type-A 4 x USB 3.1 Gen 1 Type-A 3 x 8-channel Audio I/O |
Internal I/O Ports | 2 x Aura RGB Strip Header(s) 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 2 x USB 2.0 1-port connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (4 -pin) 1 x CPU OPT Fan connector(s) (4 -pin) 2 x Chassis Fan connector(s) (4 -pin) 1 x AIO_PUMP connector () 1 x S/PDIF out header(s) 1 x 8-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x MemOK! II switch(es) 1 x Clear CMOS jumper(s) 1 x System panel connector |
Accessories | User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x TUF Gaming Sticker 1 x TUF Certification card(s) 1 x SCD (by region) |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information |
Support Disc | Drivers ASUS Utilities ASUS EZ Update Anti-virus software (OEM version) |
Operating System | Windows 10 64-bit |
Form Factor | ATX Form Factor 12.0 inch x 9.6 inch (30.5 cm x 24.4 cm) |
Management Solution | WOL by PME, PXE |
Note | *1. The PCIe x1_3, PCIe x1_4 slots
share bandwidth with PCIe x16_2. The PCIe x16_2 slot runs at x2
mode as default. Please check BIOS for more configuration. *2. When a device in SATA mode is installed on the M.2_1 socket, SATA_2 port cannot be used. *3. When a device is installed on the M.2_2 socket, SATA_5/6 port cannot be used. *4. Supports CPU RAID with Intel PCIe NVME SSDs. RAID 0 and 1 are supported via a Hyper M.2 X16 series card or on RAID sets created between the onboard M.2 socket and a Hyper M.2 X16 series card. |
