Počítače a kancelář  Komponenty  Základní desky  ASUS ROG CROSSHAIR VIII DARK HERO soc.AM4 X570 DDR4 ATX M.2 RAID WIFI BT
ASUS ROG CROSSHAIR VIII DARK HERO soc.AM4 X570 DDR4 ATX M.2 RAID WIFI BT
ASUS ROG CROSSHAIR VIII DARK HERO soc.AM4 X570 DDR4 ATX M.2 RAID WIFI BTASUS ROG CROSSHAIR VIII DARK HERO soc.AM4 X570 DDR4 ATX M.2 RAID WIFI BTASUS ROG CROSSHAIR VIII DARK HERO soc.AM4 X570 DDR4 ATX M.2 RAID WIFI BTASUS ROG CROSSHAIR VIII DARK HERO soc.AM4 X570 DDR4 ATX M.2 RAID WIFI BTASUS ROG CROSSHAIR VIII DARK HERO soc.AM4 X570 DDR4 ATX M.2 RAID WIFI BTASUS ROG CROSSHAIR VIII DARK HERO soc.AM4 X570 DDR4 ATX M.2 RAID WIFI BT
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

ASUS ROG CROSSHAIR VIII DARK HERO soc.AM4 X570 DDR4 ATX M.2 RAID WIFI BT

ROG Crosshair VIII Dark Hero AMD X570 ATX gaming motherboard with PCIe 4.0, 16 power stages, OptiMem III, on-board Wi-Fi 6 (802.11ax), 2.5 Gbps Ethernet, USB 3.2, SATA, M.2 and Aura Sync RGB lighting AMD AM4 socket: Ready for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series desktop processors; also supports up to two M.2 drives…
Kategorie: Základní desky
Kód: 3075106PN: 90MB1760-M0EAY0Výrobce: ASUSZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.
13 754   včetně DPH
Cena bez DPH: 11 367 Kč
Nákup po telefonu
+420 587 407 456
Skladem poslední 2 kusy
Kdy zboží dostanu?termín / cena přepravy
Na prodejně v Olomouci (po objednání)již 15.4. / ZDARMA!
Přepravní službou (ČR)19.4. / od 160 Kč
Na výdejním místě (ČR)19.4. / od 120 Kč
Uvedený termín je průměrná doba doručení uvedenou službou.

Popis produktu

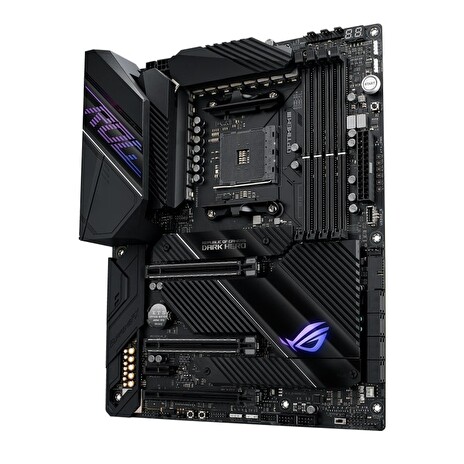

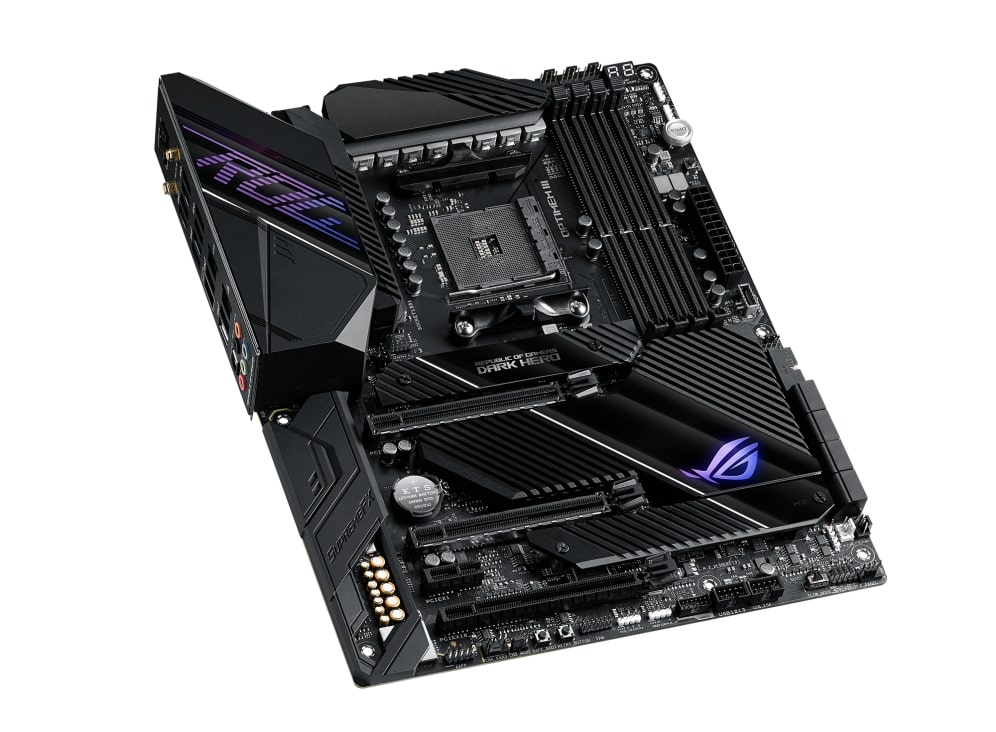

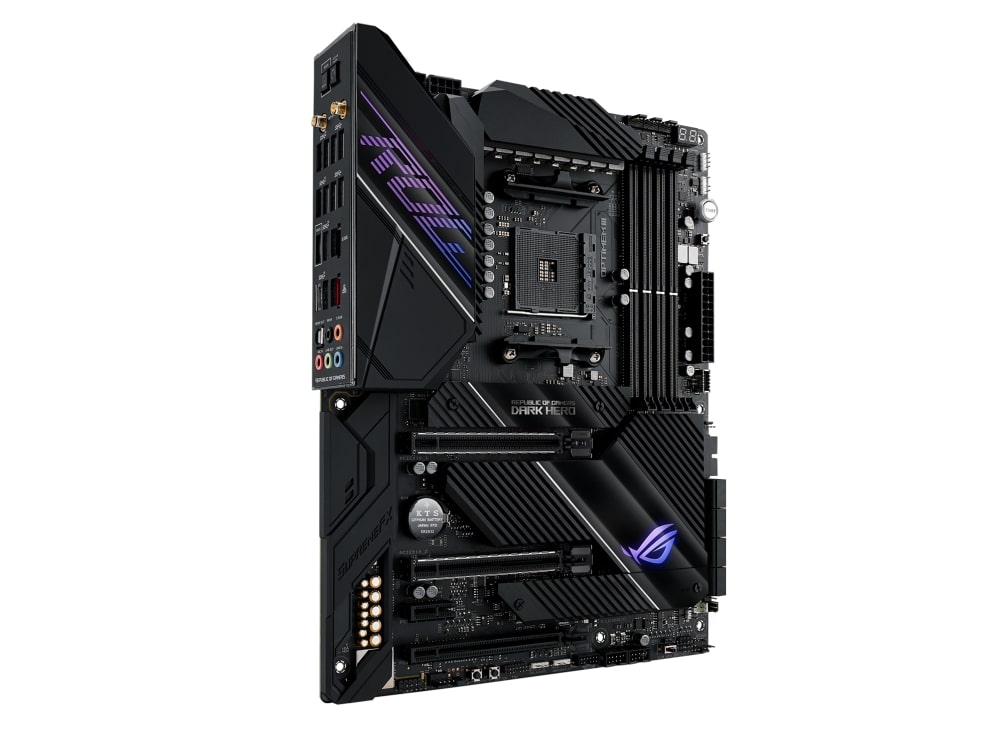

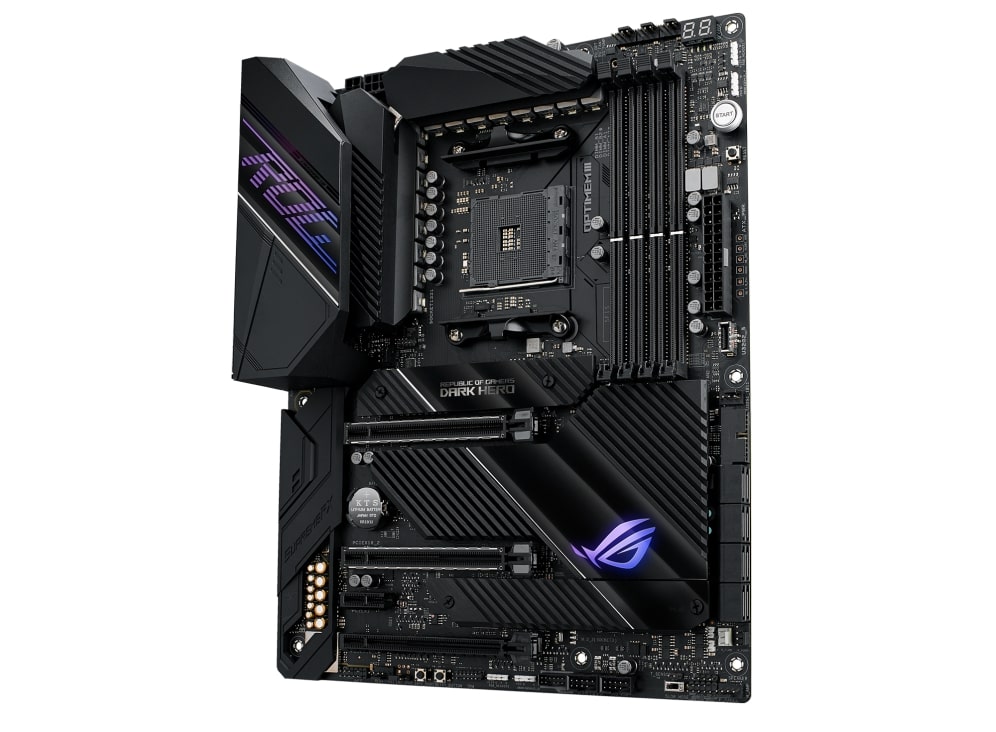

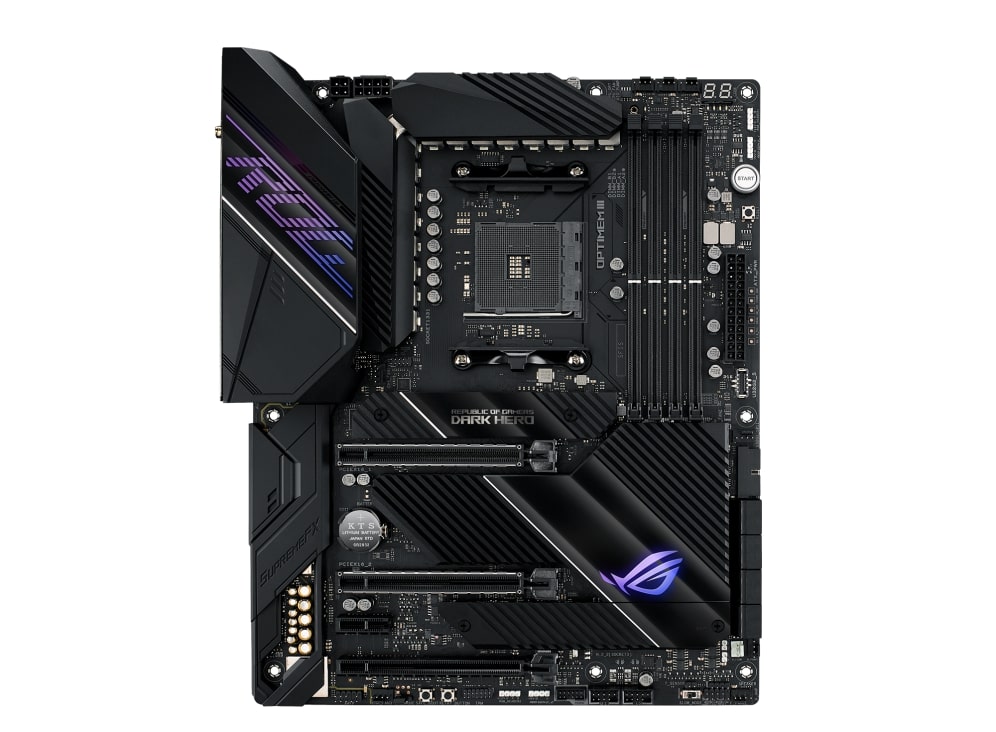

ROG Crosshair VIII Dark Hero
AMD X570 ATX gaming motherboard with PCIe 4.0, 16 power stages, OptiMem III, on-board Wi-Fi 6 (802.11ax), 2.5 Gbps Ethernet, USB 3.2, SATA, M.2 and Aura Sync RGB lighting

AMD AM4 socket: Ready for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series desktop processors; also supports up to two M.2 drives and features USB 3.2 Gen 2 and AMD StoreMI to maximize connectivity and speed
Comprehensive thermal design: Passive chipset heatsink, M.2 aluminum heatsinks and ROG Water Cooling Zone.
Robust power delivery: Designed power solution 14+2 TI power stages rated for 90A, ProCool II power connectors, microfine alloy chokes and 10K Japanese-made black metallic capacitors
High-performance networking: On-board Wi-Fi 6 (802.11ax) with MU-MIMO support, 2.5 Gbps Ethernet and Gigabit Ethernet, both with ASUS LANGuard protection, and support for GameFirst VI software.
5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig.
DIY Friendly Design: Pre-mounted I/O shield, ASUS SafeSlot, BIOS flashback and premium components for maximum endurance.
Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 RGB headers
Industry-leading ROG audio: ROG SupremeFX S1220 is combined with the venerable ESS® ES9023P to deliver high-fidelity audio to headsets and exotic cans.

CPU
* Refer to www.asus.com for CPU support list
AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors

Chipset
AMD X570

Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
AMD Ryzen™ 4000 G-Series Desktop Processors
AMD RyzenTM 2000 Series Processors
4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
4 x DIMM, Max. 128GB, DDR4 5100(O.C)/5000(O.C)/4866(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3200/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
4 x DIMM, Max. 128GB, DDR4 3200/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Multi-GPU Support
Supports NVIDIA 2-Way SLI® Technology
Supports AMD 3-Way CrossFireX™ Technology
Supports AMD 2-Way CrossFireX™ Technology
AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 2000 Series Desktop Processors>
AMD Ryzen™ 3000 G-Series/ 2000 G-Series Desktop Processors

Expansion Slots
2 x PCIe 4.0 x16 (x16 or dual x8)
2 x PCIe 3.0 x16 (x16 or dual x8)
1 x PCIe 3.0 x16 (x8 mode)
AMD X570 chipset
1 x PCIe 4.0 x16
1 x PCIe 4.0 x1
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
AMD RyzenTM 4000 G-Series / 2000 Series Processors
AMD RyzenTM 3000 G-Series / 2000 G-Series Processors

Storage
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
AMD X570 chipset :
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
8 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :
AMD Ryzen™ 4000 G-Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors :

LAN
Intel® I211-AT
Realtek® RTL8125-CG 2.5G LAN
ASUS LANGuard

Wireless Data Network
Intel® Wi-Fi 6 AX200
Supports up to 2.4Gbps max data rate
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160
Supports PCIe interface

Bluetooth
Bluetooth v5.1*
*BT 5.1 function will be ready in Windows 10 build 19041 or later.

Audio
ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
- High quality120dBSNR stereo playback outputand113dBSNR recording input
- ESS® ES9023P
- Supports up to 32-Bit/192kHz playback

Audio Feature :
- SupremeFX Shielding™ Technology
- Gold-plated jacks
- Optical S/PDIF out port(s) at back panel
- Audio Cover
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
- Unique de-pop circuit
- Power pre-regulator: Reduces power input noise to ensure consistent performance
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

USB Ports
4 x USB 3.2 Gen 2 port(s)
4 x USB 3.2 Gen 1 port(s)
AMD X570 chipset :
1 x USB 3.2 Gen 2 front panel connector port(s)
6 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
AMD Ryzen™5000 Series / 4000 G-Series/ 3000 Series Processors :
AMD Ryzen™3000 G-Series / 2000 Series / 2000 G-Series Processors :

Special Features
AURA :
- Aura RGB Strip Headers
- Addressable Gen 2 Header
ASUS EZ DIY :
- ASUS USB BIOS FlashBack™
ASUS Q-Design :
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector

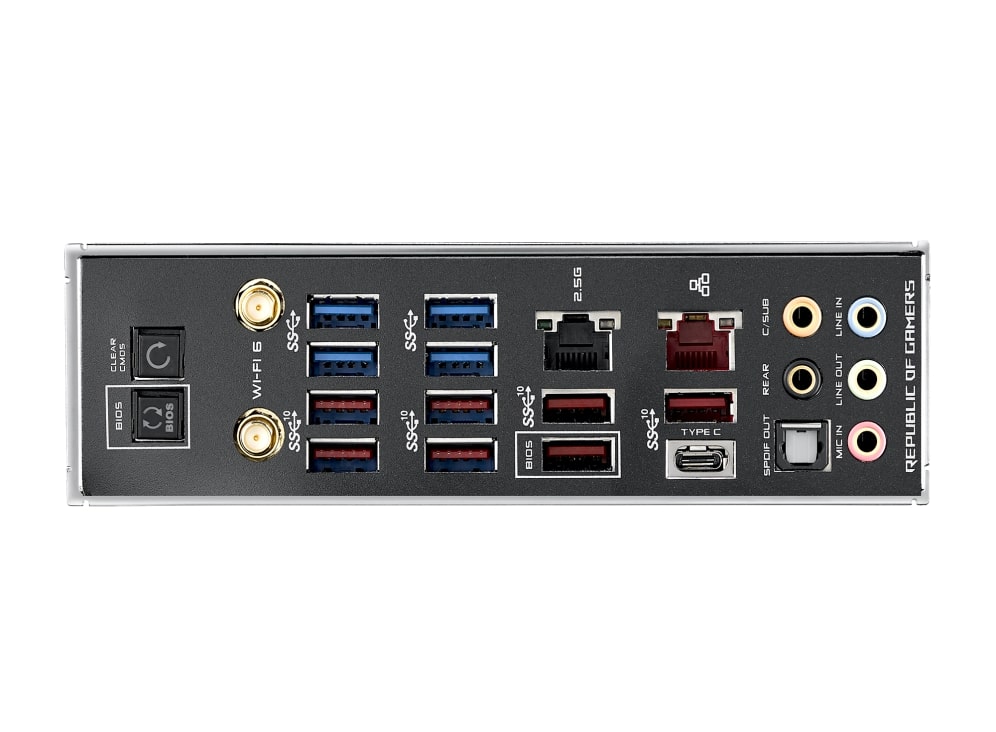

Back I/O Ports
1 x Optical S/PDIF out
1 x Clear CMOS button(s)
1 x ASUS Wi-Fi Module
5 x Gold-plated audio jacks
4 x USB 3.2 Gen 1 (up to 5Gbps) ports
8 x USB 3.2 Gen 2 (up to 10Gbps) ports ()
1 x BIOS FlashBack™ Button(s)
1 x Anti-surge 2.5G LAN (RJ45) port
Anti-surge LAN (RJ45) port

Internal I/O Ports
2 x Aura RGB Strip Headers
2 x Addressable Gen 2 header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x TPM connector(s)
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x H_AMP fan connector
1 x W_PUMP+ connector
1 x 24-pin EATX Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Slow Mode switch(es)
1 x Reset button(s)
1 x Node Connector(s)
1 x LN2 Mode jumper(s)
1 x Safe Boot button
1 x ReTry button
1 x System panel connector
1 x T_Sensor Connector
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x Start button
1 x Speaker connector
1 x USB 3.2 Gen 2 (up to 10Gbps) connector
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
2 x M.2 Socket 3
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)

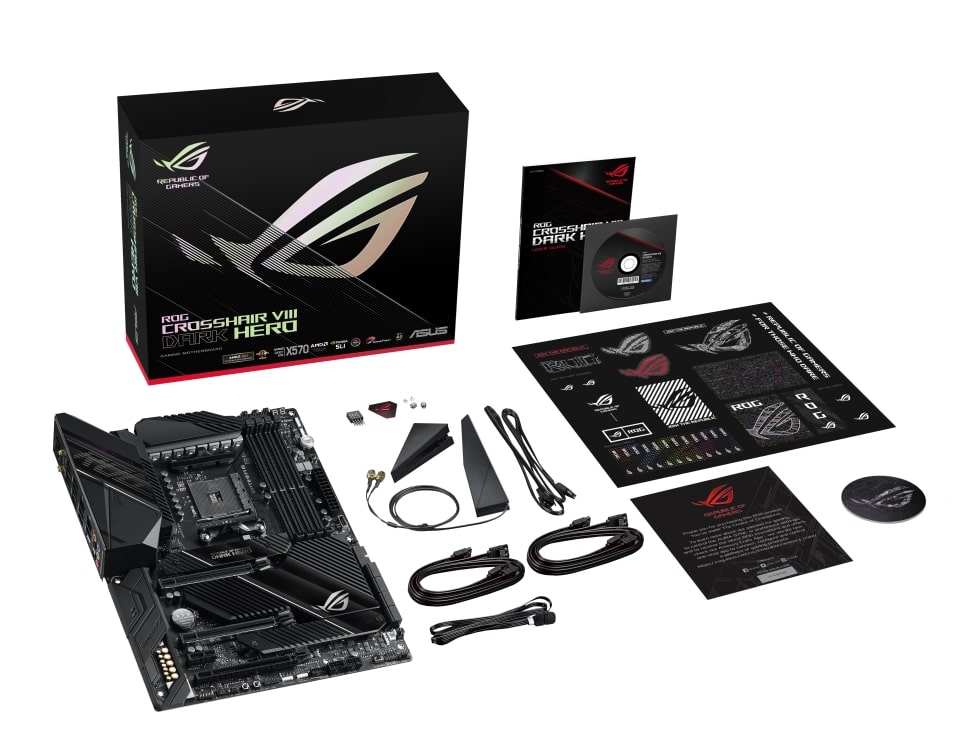

Accessories
User´s manual
4 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x ROG big sticker
1 x Q-Connector

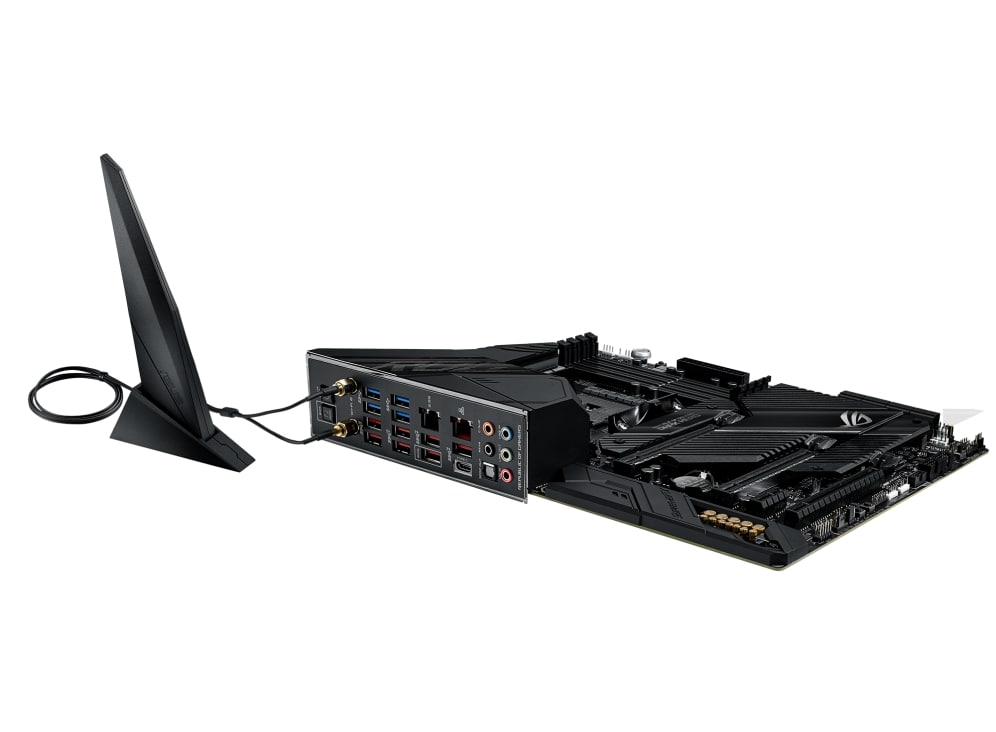

1 x Wi-Fi Antenna(s)
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
1 x ROG coaster(s)
1 x ROG Thank you card
1 x M.2 SSD screw package(s)

BIOS
256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2

Manageability
WOL, PXE

Operating System
Windows® 10 64-bit
Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Parametry

BlueToothAno
COM port (interní)Ne
DisplayPort / miniDisplayPortNe
DVINe
eSATANe
Grafická kartaNe
HDMINe
ChipsetX570
IEEE 1394Ne
Integrované CPU na MBNe
LPT port (interní)Ne
Maximální frekvence pamětí5100
Maximální velikost pamětí128
PaticeAM4
Počet konektorů SATA 6GB/s8
Počet LAN výstupů2x LAN konektor
Počet paměťových slotů4
Počet pinů USB 2.0 (interní)2
Počet pinů USB 3.x (interní)2
Počet slotů M.22
Počet slotů PCIe x11
Počet slotů PCIe x163
Počet USB 3.x (externí)11
Podpora pro paměti typuDDR4
Podpora pro paměti typu ECCAno
Podpora vProNe
RAID řadičAno
ThunderBolt (interní)Ne
TPMAno
Typ síťové kartyIntel, Realtek
Velikost základní deskyATX
VGANe
Výrobce chipsetuAMD
WiFiAno
XMPNe
