Efektivita zdroje | 80 Plus Gold |
---|---|
Formát zdroje | ATX |
Konektory | PCIe 8-pin |
Konektory | SATA 15-pin |
Konektory | Molex |
Konektory | FDD |
Konektory pro základní desku | ATX 20-pin |
Konektory pro základní desku | ATX 24-pin |
Konektory pro základní desku | EPS 8-pin |
Modulární kabeláž | Ano |
Vlastnosti zdroje | Modulární kabeláž |
Výkon zdroje (ve W) | 650 |
Počítače a kancelář Komponenty Zdroje CHIEFTEC zdroj Chieftronic PowerUp GPX-650FC, 650W ATX,80PLUS…

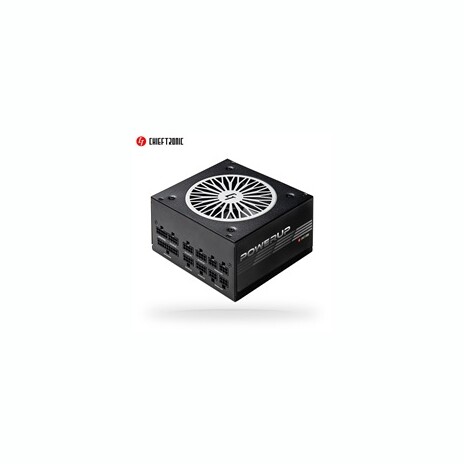

CHIEFTEC zdroj Chieftronic PowerUp GPX-650FC, 650W ATX,80PLUS GOLD,cable-mgt,retail
GPX-650FC
- 80 PLUS Gold certified efficiency - Fully modular cable management - Full-bridge LLC converter with DC-to-DC technology - Low ripple and tight voltage regulation - 5-year warranty With the PowerUp series, Chieftronic aims to bring the well-received technical quality and high performance of the PowerPlay series to the mainstream gamer’s market. With…
Kategorie: Zdroje
Kód: 2995584PN: GPX-650FCVýrobce: CHIEFTECZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.
Aktuálně není v nabídce
Popis produktu
GPX-650FC
- 80 PLUS Gold certified
efficiency
- Fully modular cable management
- Full-bridge LLC converter with DC-to-DC technology
- Low ripple and tight voltage regulation
- 5-year warranty
With the PowerUp series, Chieftronic aims to bring the well-received technical quality and high performance of the PowerPlay series to the mainstream gamer’s market. With modern full-bridge LLC and DC-to-DC technology, extremely low ripple values and tight voltage regulation can be achieved.
A high power-density design allows this series to deliver up to 850W of power in a compact form factor, measuring only 14 cm in total length, while achieving 80 PLUS Gold certified efficiency. The compact size combined with the fully modular cable management, allows the PowerUp series to be used conveniently in smaller builds, where a short PSU is needed, while long, flat, black cables support builds even in very
large gaming cases.
- Fully modular cable management
- Full-bridge LLC converter with DC-to-DC technology
- Low ripple and tight voltage regulation
- 5-year warranty
With the PowerUp series, Chieftronic aims to bring the well-received technical quality and high performance of the PowerPlay series to the mainstream gamer’s market. With modern full-bridge LLC and DC-to-DC technology, extremely low ripple values and tight voltage regulation can be achieved.
A high power-density design allows this series to deliver up to 850W of power in a compact form factor, measuring only 14 cm in total length, while achieving 80 PLUS Gold certified efficiency. The compact size combined with the fully modular cable management, allows the PowerUp series to be used conveniently in smaller builds, where a short PSU is needed, while long, flat, black cables support builds even in very
large gaming cases.
SPECIFICATIONS:
Performance
Model | PowerUp 650W |
Article no. | GPX-650FC |
EAN code | 0753263077189 |
Weight (without/with package) | 2.2 kg / 2.75 kg |
AC Input | 100 - 240V / 10.0A |
Frequency | 47 - 63Hz |
+5V | 20A |
+3,3V | 20A |
+5V & +3,3V combined | 100W |
+12V |
54A/ 648W |
-12V | 0.3A / 3.6W |
+5VsB | 2.5A / 12.5W |
Maximum Power | 650W |
Connectors
20+4PIN ATX | 1 |
8 PIN CPU (4+4) | 2 |
8 PIN PCIe (6+2) | 2 |
SATA | 9 |
MOLEX | 3 |
FLOPPY | 1 |
Cable length
20+4PIN ATX | 650 |
8 PIN CPU (4+4) | 650/150 |
8 PIN PCIe (6+2) | 2x 500 |
SATA | 3x 500/150/150 |
MOLEX | 500/150/150/150 |
FLOPPY | Molex |
Features
ATX 12V Version | v2.53 |
Efficiency | 80 PLUS Gold |
Dimension (DxWxH) | 140 mm x 150 mm x 86 mm |
PFC | Active PFC |
Fan | 120mm silent fan |
Security |
|
Warranty | 60 Months |
