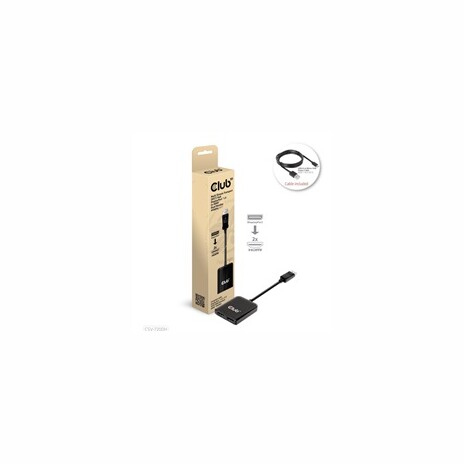

Club3D hub MST (Multi Stream Transport) DisplayPort 1.4 na 2xHDMI Dual Monitor 4K60Hz (M/F)
Club3D hub MST (Multi Stream Transport) DisplayPort 1.4 na 2xHDMI Dual Monitor 4K60Hz (M/F)Club3D hub MST (Multi Stream Transport) DisplayPort 1.4 na 2xHDMI Dual Monitor 4K60Hz (M/F)Club3D hub MST (Multi Stream Transport) DisplayPort 1.4 na 2xHDMI Dual Monitor 4K60Hz (M/F)Club3D hub MST (Multi Stream Transport) DisplayPort 1.4 na 2xHDMI Dual Monitor 4K60Hz (M/F)
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Club3D hub MST (Multi Stream Transport) DisplayPort 1.4 na 2xHDMI Dual Monitor 4K60Hz (M/F)

Multi Stream Transport (MST) Hub DisplayPort 1.4 to HDMI Dual Monitor 4K60Hz M/F The Club 3D CSV-7200H Multi Stream Transport(MST)Hub DisplayPort™ 1.4 to Dual HDMI 4K60Hz is an integrated solution that allow you to enjoy displaying content onto two different displays simultaneously under MST mode. The Two screens can accommodate displaying same contents in parallel or by…
Kategorie: IO karty/zařízení, huby a čtečky
Kód: 3237177PN: CSV-7200HVýrobce: Club 3DZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.
Aktuálně není v nabídce

Popis produktu

Multi Stream Transport (MST) Hub DisplayPort 1.4 to HDMI Dual Monitor 4K60Hz M/F

The Club 3D CSV-7200H Multi Stream Transport(MST)Hub DisplayPort™ 1.4 to Dual HDMI 4K60Hz is an integrated solution that allow you to enjoy displaying content onto two different displays simultaneously under MST mode. The Two screens can accommodate displaying same contents in parallel or by simply extending the existing screen, giving a panoramic view of the content which maximizes the user’s visual experience. With its multi-display capabilities, this hub can serve as a convenient and hassle-free portable, alternative solution to the conventional docking station. It’s the perfect solution for host devices which feature DP1.2 /1.4 graphic cards for gaming and commercial applications.

  • Compliant with: DisplayPort™ v1.4, DisplayPort™ v1.2, VESA DDM Standard, HDMI™ 4K60Hz
    * Supports HDCP 1.4 and HDCP 2.2 Content protection
  • Supports main link rates of 8.1Gbps (HBR3),5.4Gbps (HBR2), 2.7Gbps (HBR) and (1.62Gbps RBR) from source
  • Supports up to Two HDMI™ 4K60Hz ports
  • Supported output resolutions :
    • up to 3840*2160p @ 60Hz single or dual displays (Note when the source is DP1.4 and supports DSC1.2)
    • 1x 3840*2160P/30HZ + 1x 1920*1080P/60HZ(DP1.2)
      * Supports transmission of audio and video signals
  • Works with AMD*, Nvidia™ and Intel™ HD Graphics solutions
    * Plug and Play - no driver needed
  • Functionality may vary per GPU and OS
    * USB Bus Powered

TECHNICAL SPECIFICATIONS

OS Support - Windows10
- Mac OSX 10.14.4 or above (limited to only mirror mode)
In the box - CSV-7200H, MST-Hub DisplayPort™ 1.4 to HDMI™ Dual 4K60Hz
- 1x external Power cable USB Type-A to Micro USB M/M
Available Interfaces Input:
• 1x DisplayPort™ 1.4 Male for connecting to Host
• Micro USB Female for External Power
Output:
• 2x HDMI™ Female for connecting to Displays
Box size 6x24x3.5cm / 2.36 x 9.45 x 1.38"
Device size 6 x 4.9 x 1.13 cm / 2.36 x 1.93 x 0.44"
Total length Device 20 cm/ 7.87"
Box Weight 28 gr / 0.99 oz
Device Weight 50 gr / 1.76 oz
CAC-1408 Cable Weight 26 gr/ 0.95 oz
LDPE Bag Weight 5 gr / 0.17 oz
Total Weight 109 gr / 3.87 oz

Parametry

Druh IO zařízeníMST hub
ProvedeníExterní
