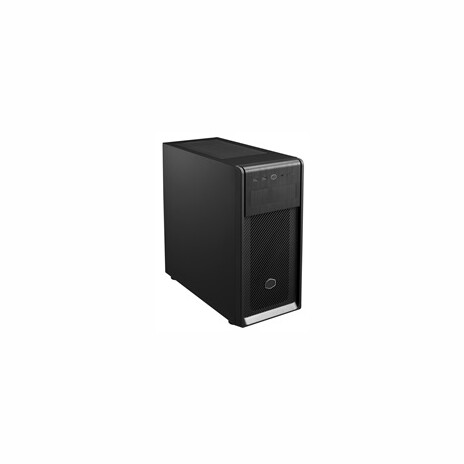

Cooler Master case Elite 500, ODD
Cooler Master case Elite 500, ODDCooler Master case Elite 500, ODDCooler Master case Elite 500, ODDCooler Master case Elite 500, ODDCooler Master case Elite 500, ODDCooler Master case Elite 500, ODDCooler Master case Elite 500, ODDCooler Master case Elite 500, ODDCooler Master case Elite 500, ODDCooler Master case Elite 500, ODDCooler Master case Elite 500, ODD
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Cooler Master case Elite 500, ODD

The Elite 500 is the essential solution for optimized cooling. Substantial ventilation on the front panel allows fresh air into the system for both air-cooled and liquid cooled configurations. For simple tasks, the Elite 500 is a cost-effective solution to professional computing. For higher-demand tasks, the Elite 500 boasts a high compatibility for upgrades, able to house…
Kategorie: Počítačové skříně
Kód: 3430156PN: E500-KN5N-S00Výrobce: Cooler MasterZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.
2 191   včetně DPH
Cena bez DPH: 1 811 Kč
Nákup po telefonu
+420 587 407 456
Skladem
Kdy zboží dostanu?termín / cena přepravy
Na prodejně v Olomouci (po objednání)již 28.6. / ZDARMA!
Přepravní službou (ČR)30.6. / od 190 Kč
Uvedený termín je průměrná doba doručení uvedenou službou.

Popis produktu

The Elite 500 is the essential solution for optimized cooling. Substantial ventilation on the front panel allows fresh air into the system for both air-cooled and liquid cooled configurations.

For simple tasks, the Elite 500 is a cost-effective solution to professional computing. For higher-demand tasks, the Elite 500 boasts a high compatibility for upgrades, able to house liquid cooling and provides clearance for the longest, widest graphics cards.

Large Filtered Intakes – The front panel is constructed with a substantially large, unrestricted intake grill to provide superb airflow to the system.

With/Without ODD Support – Depending on preference, an ODD version of the chassis is available. If an ODD is not preferred, a cleaner appearance and more cooling options on the top and front panels are supported. The ODD version of the Elite 500 is slightly deeper in comparison to its non-ODD counterpart.

Versatile Cooling Options – Support for up to six fans and front, top, and rear radiator support ensure that performance is not compromised.

Full Black Coating & PSU Cover: Let your system stand out with an all-black background and a PSU cover to hide cables.

Breathable Power Supply Shroud – The PSU cover is ventilated on top of the power supply location, this allows actively cooled units to be installed either with the fan facing the top or bottom, also with the possibility of installing passively cooled power supplies.

Room For Upgrades - Support for up to a 350mm graphics card (400mm in the ODD version), a 161mm CPU cooler, and multiple fans/radiators locations provides room for upgrades to stay ahead of the game.

Removable HDD Cage – The modular frame allows builders to remove the drive cage completely, providing a greater freedom in building and increased compatibility for long power supplies.

Product Name

Elite 500

Elite 500 ODD

Product Number

E500-KGNN-S00 (TG)

E500-KNNN-S00 (Steel)

E500-KG5N-S00 (TG)

E500-KN5N-S00 (Steel)

Exterior Color

Black

Materials

Exterior

Steel, Plastic

Left Side Panel

Tempered Glass

Dimensions

(L x W x H)

Incl. Protrusions

409 x 204 x 455mm

464 x 204 x 455mm

Excl. Protrusions

402 x 204 x 455mm

457 x 204 x 455mm

Volume (Liters Excl. Protrusions)

37.29L

42.40L

Motherboard Support

Mini-ITX, Micro-ATX, ATX

Expansion Slots

7

Drive Bays

5.25“ ODD

0

1

3.5” / 2.5” Combo

2

2

2.5” SSD

3

5

I/O Panel

USB Ports

2 x USB 3.2 Gen 1 Type A

Audio In / Out

1 x 3.5mm Headset Jack (Audio + Mic)

Pre-installed Fan(s)

Top

N/A

Front

N/A

Rear

1 x 120mm

Fan Support

Top

2x 120mm, 2x 140mm

Front

3x 120mm, 2x 140mm

2x 120mm, 2x 140mm 3*x 120mm (*remove ODD bracket)

Rear

1x 120mm

Radiator Support

Top

120 / 240mm (32mm max motherboard component height)

Front

120 / 140 / 240 / 280mm

120 / 140 / 240 / 280 / 360mm* (* remove ODD)

Rear

120mm

Clearances

CPU Cooler

161mm / 6.34”(TG), 163mm / 6.42”(Steel),

Power Supply

160mm / 6.30”

180mm / 7.09”

Graphics Card

350mm / 13.78”(w/o front fans & radiator)

400mm / 15.75”

(w/o front fans & radiator)

Parametry

Barva skříněČerná
Počet pozic 2.5" (SSD)3
Počet pozic 3.5" (FDD)1
Počet pozic 3.5" (HDD)2
Počet pozic 5.25"1
Provedení skříněMidi Tower
Vybavení PC skříněBez integrovaného zdroje
Vybavení PC skříněPřední Audio panel
Vybavení PC skříněPřední USB panel
