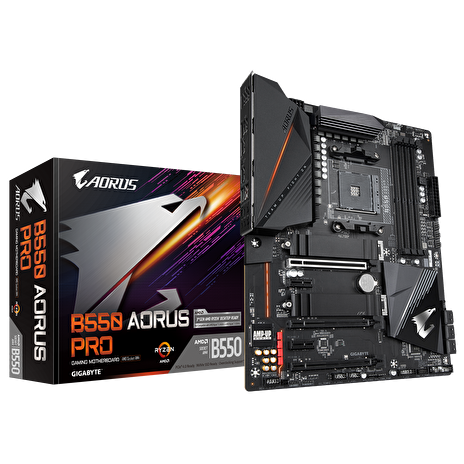

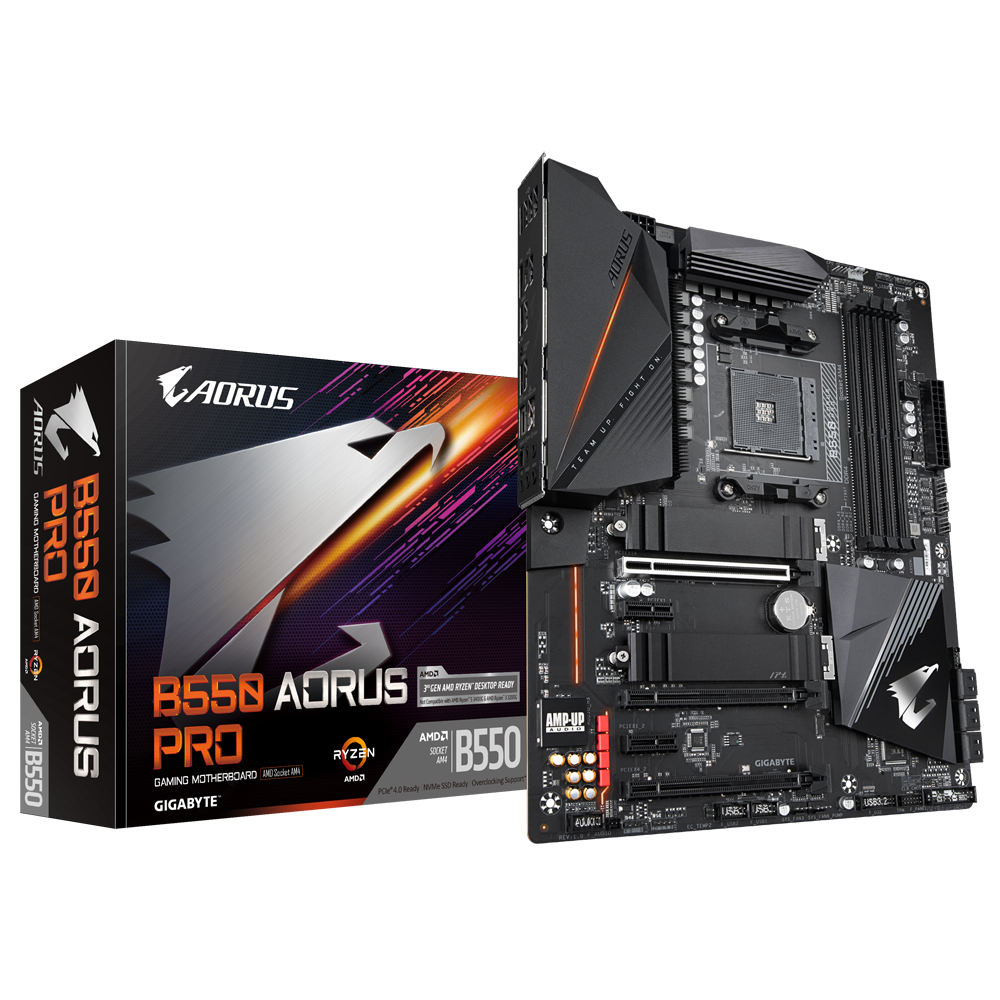

GIGABYTE MB Sc AM4 B550 AORUS PRO, AMD B550, 4 x DDR4, HDMI
GIGABYTE MB Sc AM4 B550 AORUS PRO, AMD B550, 4 x DDR4, HDMIGIGABYTE MB Sc AM4 B550 AORUS PRO, AMD B550, 4 x DDR4, HDMIGIGABYTE MB Sc AM4 B550 AORUS PRO, AMD B550, 4 x DDR4, HDMIGIGABYTE MB Sc AM4 B550 AORUS PRO, AMD B550, 4 x DDR4, HDMI
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

GIGABYTE MB Sc AM4 B550 AORUS PRO, AMD B550, 4 x DDR4, HDMI

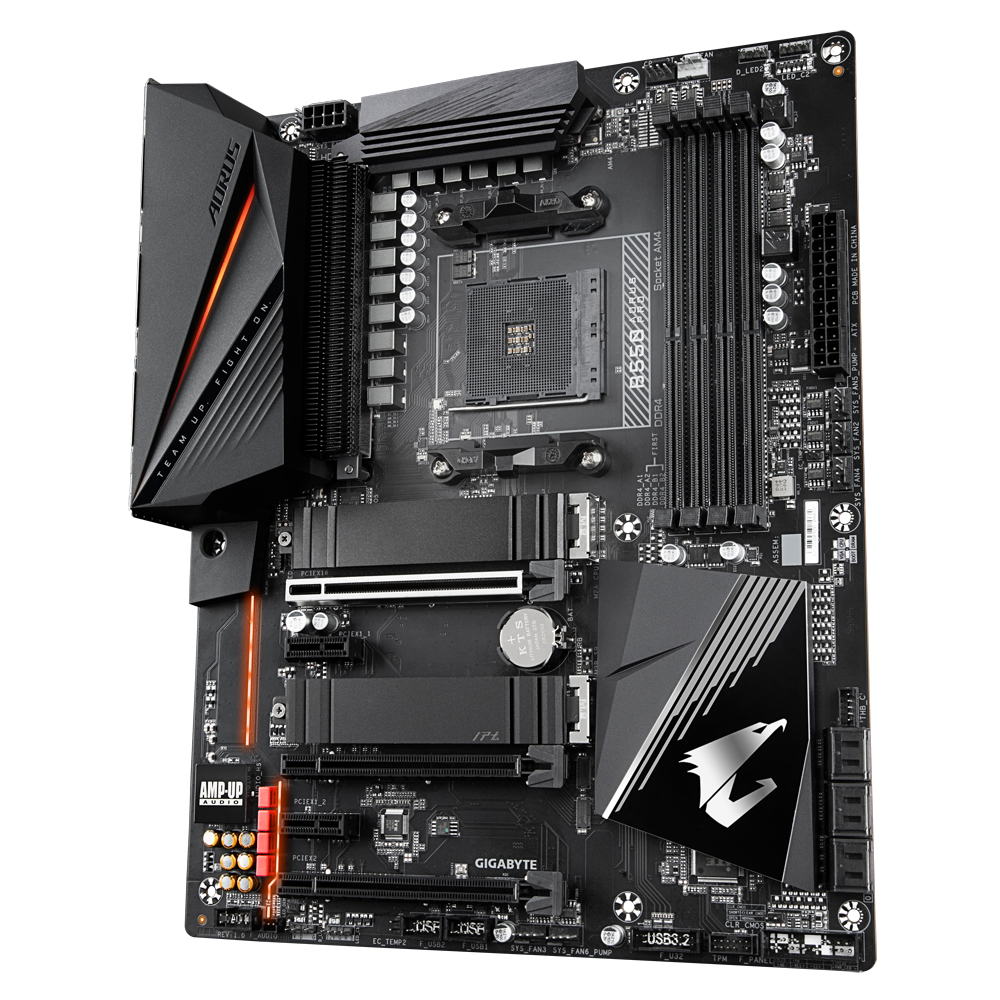

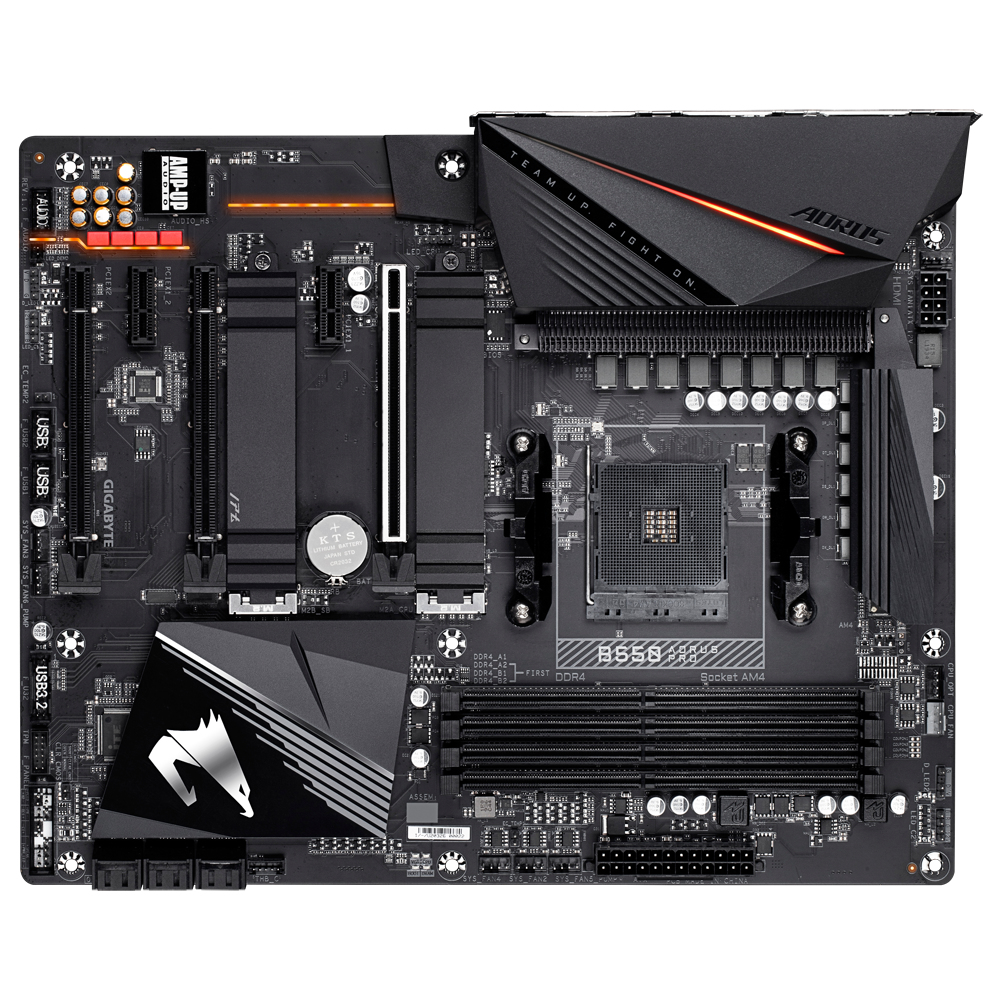

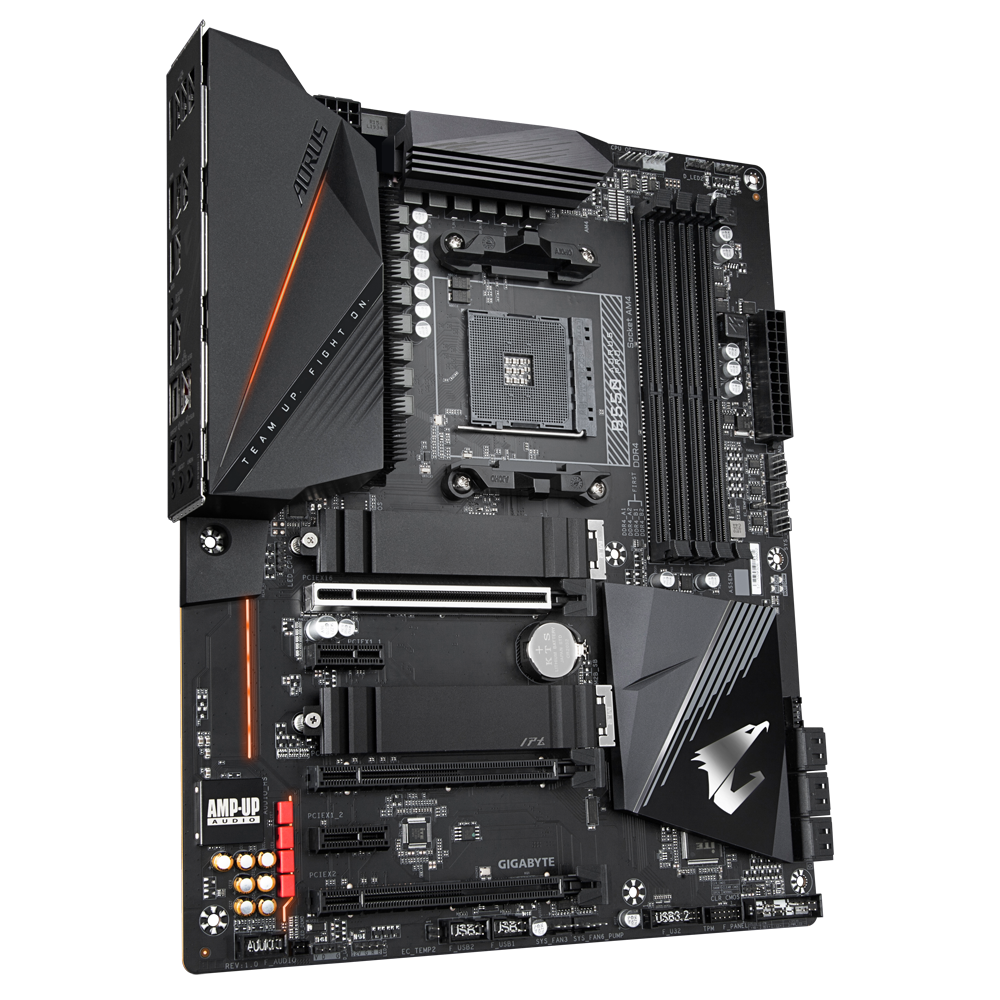

B550 AORUS PRO (rev. 1.0) AMD B550 AORUS Motherboard with True 12+2 Phases Digital VRM, Fins-Array Heatsink, Direct-Touch Heatpipe, Dual PCIe 4.0/3.0 x4 M.2 with Thermal Guards, 2.5GbE LAN, RGB FUSION 2.0, Q-Flash Plus Supports 3rd Gen AMD Ryzen™ Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs True 12+2 Phases Digital VRM Solution with 50A DrMOS Advanced…
Kategorie: Základní desky
Kód: 2817606PN: B550 AORUS PROVýrobce: GIGABYTEZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.
Aktuálně není v nabídce

Popis produktu

B550 AORUS PRO (rev. 1.0)

AMD B550 AORUS Motherboard with True 12+2 Phases Digital VRM, Fins-Array Heatsink, Direct-Touch Heatpipe, Dual PCIe 4.0/3.0 x4 M.2 with Thermal Guards, 2.5GbE LAN, RGB FUSION 2.0, Q-Flash Plus

  • Supports 3rd Gen AMD Ryzen™ Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • True 12+2 Phases Digital VRM Solution with 50A DrMOS
  • Advanced Thermal Design with Fins-Array Heatsink and Direct Touch Heatpipe
  • Ultra Durable™ PCIe 4.0 Ready x16 Slot
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards
  • AMP-UP Audio with ALC1220-VB and WIMA Capacitors for Rear 120dB SNR
  • Blazing Fast 2.5GbE LAN with Bandwidth Management
  • USB 3.2 Gen2 Type-C™ & HDMI Support
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • Pre-installed IO Shield for Easy and Quick Installation



TECHNICAL SPECIFICATIONS

CPU AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ New Generation AMD Ryzen™ with Radeon™ Graphics processors
(Please refer "CPU Support List" for more information.)
Chipset AMD B550
Memory
  1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  2. 3rd Gen AMD Ryzen™ Processors: Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
  3. New Generation AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
  4. Dual channel memory architecture
  5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  7. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
Audio
  1. Realtek ALC1220-VB codec
    * The back panel line out jack supports DSD audio.
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
LAN
  1. Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Wireless Communication module
Expansion Slots


1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

  1. 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
  2. New Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:

  1. Supporting PCIe 3.0 x4 mode
    * The M2B_SB connector shares bandwidth with the PCIEX4 slot. The PCIEX4 slot will become unavailable when an SSD is installed in the M2B_SB connectors.

1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:

  1. Supporting PCIe 3.0 x2 mode
    * The PCIEX2 slot shares bandwidth with the SATA3 4, 5 connectors. The PCIEX2 slot will become unavailable when a device is installed in the SATA3 4 or SATA3 5 connector.

2 x PCI Express x1 slots
Onboard Graphics

Integrated in the New Generation AMD Ryzen™ with Radeon™ Graphics processors:

  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
    Maximum shared memory of 16 GB
Storage Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
  1. 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
  2. New Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:

  1. Support PCIe 3.0 x4/x2 SSDs

6 x SATA 6Gb/s connectors, integrated in the Chipset:

  1. Support for RAID 0, RAID 1, and RAID 10
USB

CPU:

  1. 3 x USB 3.2 Gen 1 ports on the back panel
  2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

Chipset:

  1. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
  2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  3. 2 x USB 3.2 Gen 1 ports available through the internal USB header
  4. 2 x USB 2.0/1.1 ports on the back panel

Chipset+2 USB 2.0 Hubs:

  1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 2 x M.2 Socket 3 connectors
  4. 6 x SATA 6Gb/s connectors
  5. 1 x CPU fan header
  6. 1 x water cooling CPU fan header
  7. 4 x system fan headers
  8. 2 x system fan/water cooling pump headers
  9. 1 x CPU cooler LED strip/RGB LED strip header
  10. 2 x addressable LED strip headers
  11. 2 x RGB LED strip headers
  12. 1 x front panel header
  13. 1 x front panel audio header
  14. 1 x USB 3.2 Gen 1 header
  15. 2 x USB 2.0/1.1 headers
  16. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  17. 2 x temperature sensor headers
  18. 1 x Clear CMOS jumper

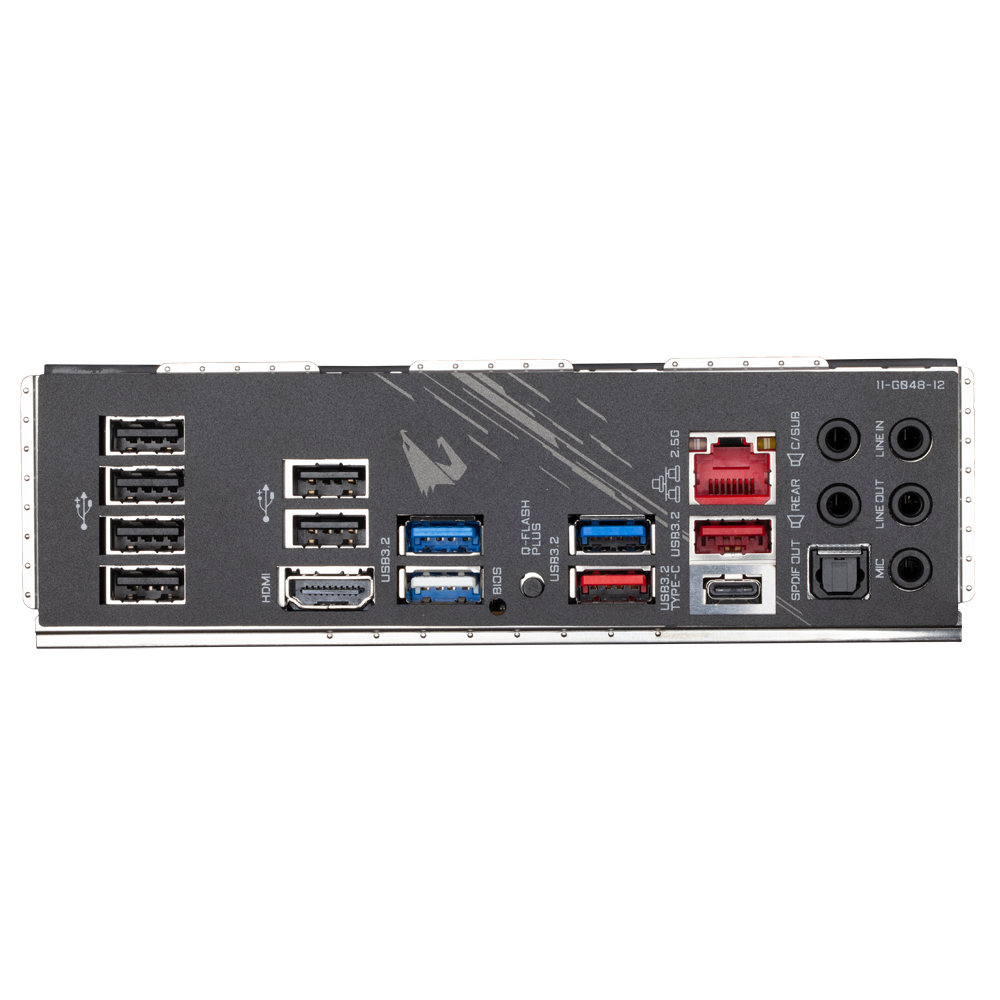

iTE I/O Controller ChipBack Panel Connectors
  1. 1 x HDMI port
  2. 3 x USB 3.2 Gen 1 ports
  3. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
  4. 2 x USB 3.2 Gen 2 Type-A ports (red)
  5. 6 x USB 2.0/1.1 ports
  6. 1 x Q-Flash Plus button
  7. 1 x RJ-45 port
  8. 1 x optical S/PDIF Out connector
  9. 5 x audio jacks
I/O Controller iTE I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Overheating warning
  6. Fan fail warning
  7. Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundled Software
  1. Norton Internet Security (OEM version)
  2. XSplit Gamecaster + Broadcaster (12 months license)
  3. Realtek 8125 Gaming LAN Bandwidth Control Utility
Operating System
  1. Support for Windows 10 64-bit
Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
