GIGABYTE MB Sc LGA1200 H410M DS2V V2, Intel H470, 2xDDR4, 1xDVI, 1xVGA, mATX

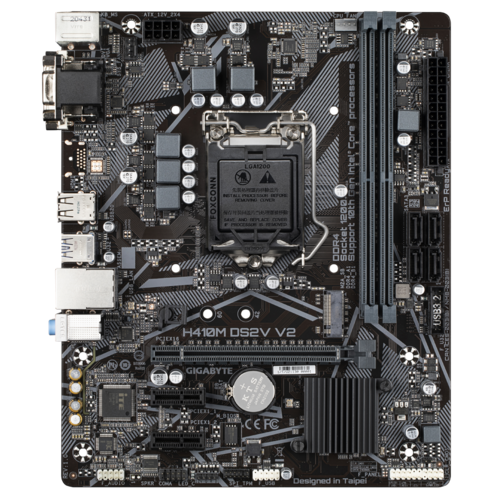

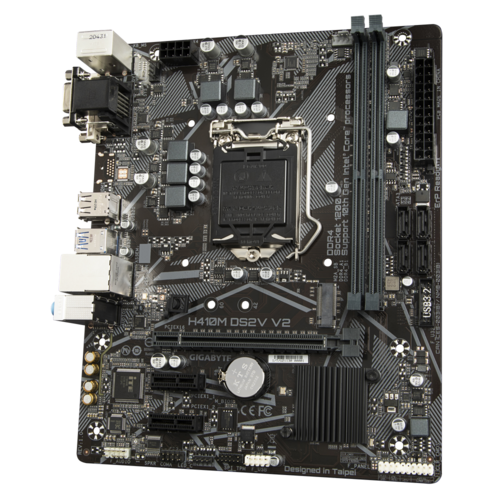

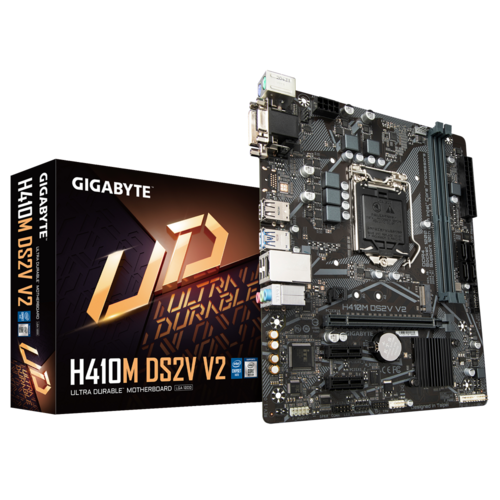

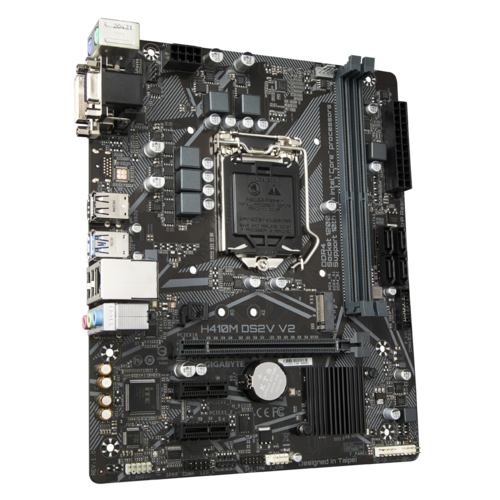

H410M DS2V V2

Intel Ultra Durable Motherboard with GIGABYTE Gaming GbE LAN, Anti-Sulfur Resistor, Smart Fan 5

• Supports 10th Gen Intel Core™ Processors
• Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
• NVMe PCIe Gen3 x4 2280 M.2 Connector
• 8-Channel HD Audio with High Quality Audio Capacitors
• GIGABYTE Gaming GbE LAN with Bandwidth Management
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
• GIGABYTE APP Center, Simple and Easy Use
• Anti-Sulfur Resistors Design

CPU

Support for 10th Generation Intel Core™ i9 processors/Intel Core™ i7 processors/Intel Core™ i5 processors/Intel Core™ i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)

Chipset

Intel H470 Express Chipset

Memory

Intel Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
Intel Core™ i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
Maximum shared memory of 512 MB

Audio

Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.

LAN

Gigabit Ethernet Chip (1 Gbps/100 Mbps)

Expansion Slots

1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slot
(The PCI Express slots conform to PCI Express 3.0 standard.)
Supports up to ASPM L1.2 power management protocols.

Storage Interface

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel Optane™ Memory Ready
M.2 connectors support up to ASPM L1.2 PCIe power management protocols.

USB

Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper

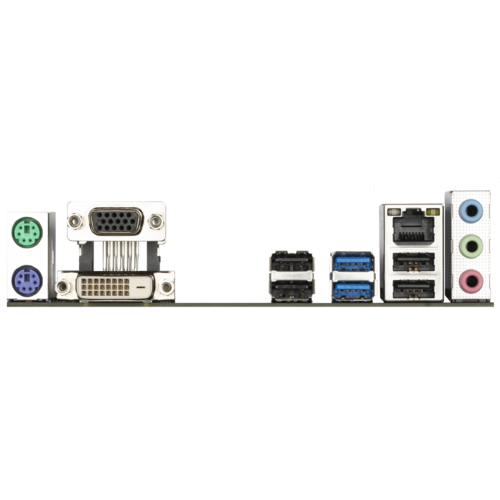

Back Panel Connectors

1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

I/O Controller

iTE I/O Controller Chip

H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
Ambient LED
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install

Bundled Software

Norton Internet Security (OEM version)
cFosSpeed

Operating System

Support for Windows 10 64-bit

Form Factor

Micro ATX Form Factor; 22.6cm x 18.5cm
