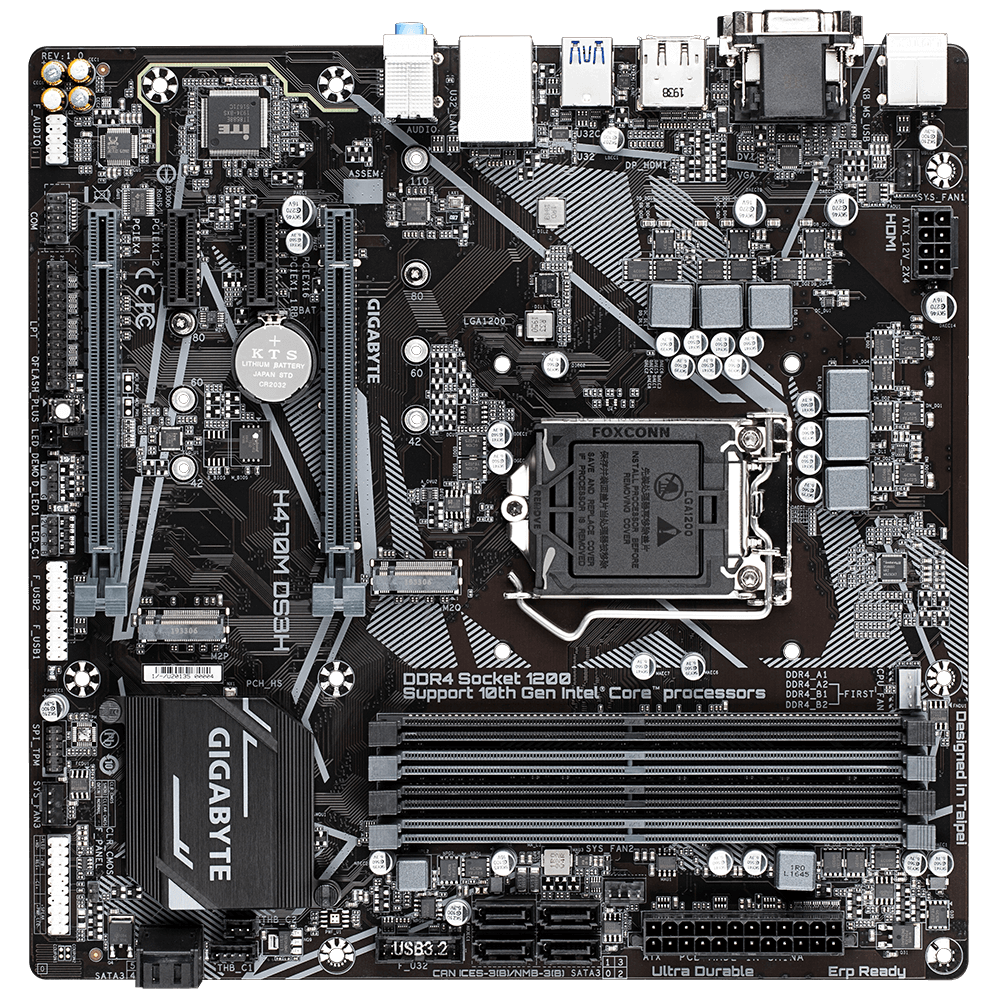

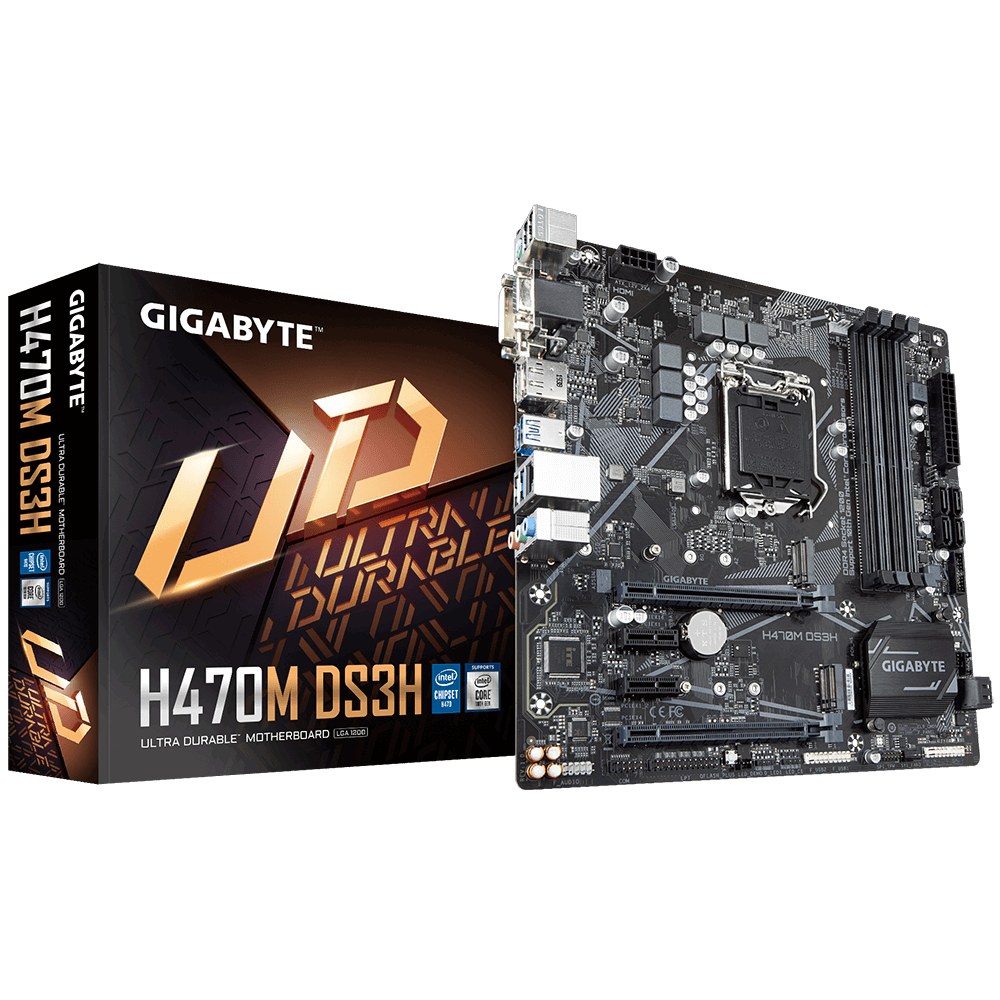

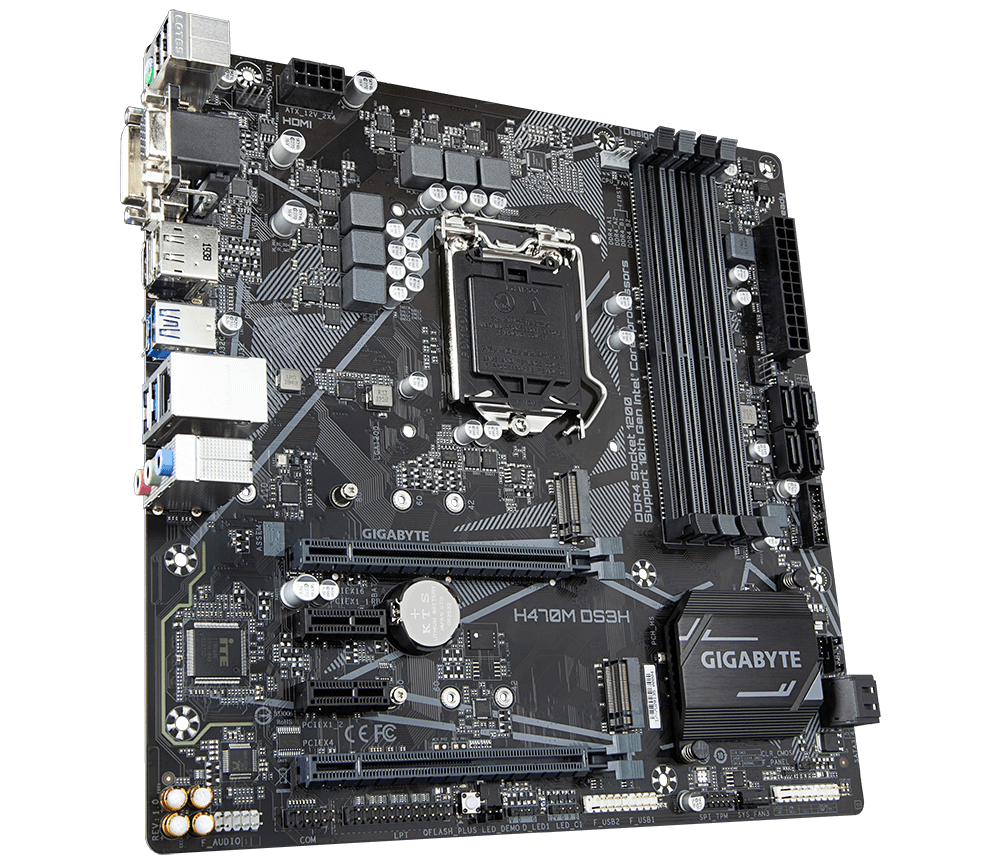

GIGABYTE MB Sc LGA1200 H470M DS3H, Intel H470, 4xDDR4, VGA, mATX
GIGABYTE MB Sc LGA1200 H470M DS3H, Intel H470, 4xDDR4, VGA, mATXGIGABYTE MB Sc LGA1200 H470M DS3H, Intel H470, 4xDDR4, VGA, mATXGIGABYTE MB Sc LGA1200 H470M DS3H, Intel H470, 4xDDR4, VGA, mATX
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

GIGABYTE MB Sc LGA1200 H470M DS3H, Intel H470, 4xDDR4, VGA, mATX

H470M DS3H (rev. 1.0) Intel H470 Ultra Durable Motherboard with USB 3.2 Gen1 Type-C™, Dual NVMe PCIe Gen3 X4 M.2 Slots, 2-Way CrossFire™ Multi-Graphics, Intel GbE with cFosSpeed, 4 Display Interfaces Support, Smart Fan 5, RGB FUSION 2.0 Supports 10th Gen Intel Core™ Series Processors Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs Dual NVMe PCIe Gen3 X4 M.2 Connectors…
Kategorie: Základní desky
Kód: 2817604PN: H470M DS3HVýrobce: GIGABYTEZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.
Aktuálně není v nabídce

Popis produktu

H470M DS3H (rev. 1.0)

Intel H470 Ultra Durable Motherboard with USB 3.2 Gen1 Type-C™, Dual NVMe PCIe Gen3 X4 M.2 Slots, 2-Way CrossFire™ Multi-Graphics, Intel GbE with cFosSpeed, 4 Display Interfaces Support, Smart Fan 5, RGB FUSION 2.0

  • Supports 10th Gen Intel Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Dual NVMe PCIe Gen3 X4 M.2 Connectors
  • Smart Fan 5 Features Multiple Temperature Sensors,Hybrid Fan Headers with FAN STOP
  • Intel Optane™ Memory Ready
  • Intel GbE LAN with cFosSpeed Internet Accelerator Software
  • Intel USB 3.2 Gen 1 Type-C™ Support
  • 4 Display Interfaces Support
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Anti-Sulfur Resistors Design
  • Q-Flash Plus Update BIOS without Installing the CPU?Memory and Graphics Card

TECHNICAL SPECIFICATIONS

CPU
  1. Support for 10th Generation Intel Core™ i9 processors/Intel Core™ i7 processors/Intel Core™ i5 processors/Intel Core™ i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package
  2. L3 cache varies with CPU
Chipset
  1. Intel H470 Express Chipset
Memory
  1. Intel Core™ i9/i7 processors:
    Support for DDR4 2933/2666/2400/2133 MHz memory modules
  2. Intel Core™ i5/i3/Pentium/Celeronprocessors:
    Support for DDR4 2666/2400/2133 MHz memory modules
  3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  4. Dual channel memory architecture
  5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  7. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:

  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
  3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.
  4. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
  5. Support for up to 3 displays at the same time

Maximum shared memory of 512 MB
Audio
  1. Realtek ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
LAN
  1. Intel GbE LAN chip (1000 Mbit/100 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  3. 2 x PCI Express x1 slots
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology
  1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface
  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q)
  2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P)
  3. 6 x SATA 6Gb/s connectors
  4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
  5. Intel Optane™ Memory Ready
USB

Chipset:

  1. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 1 support
  2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
  3. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 3 x system fan headers
  5. 1 x addressable LED strip header
  6. 1 x RGB LED strip header
  7. 2 x M.2 Socket 3 connectors
  8. 6 x SATA 6Gb/s connectors
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x USB 3.2 Gen 1 header
  12. 2 x USB 2.0/1.1 headers
  13. 2 x Thunderbolt™ add-in card connectors
  14. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  15. 1 x serial port header
  16. 1 x parallel port header
  17. 1 x Clear CMOS jumper
  18. 1 x Q-Flash Plus button

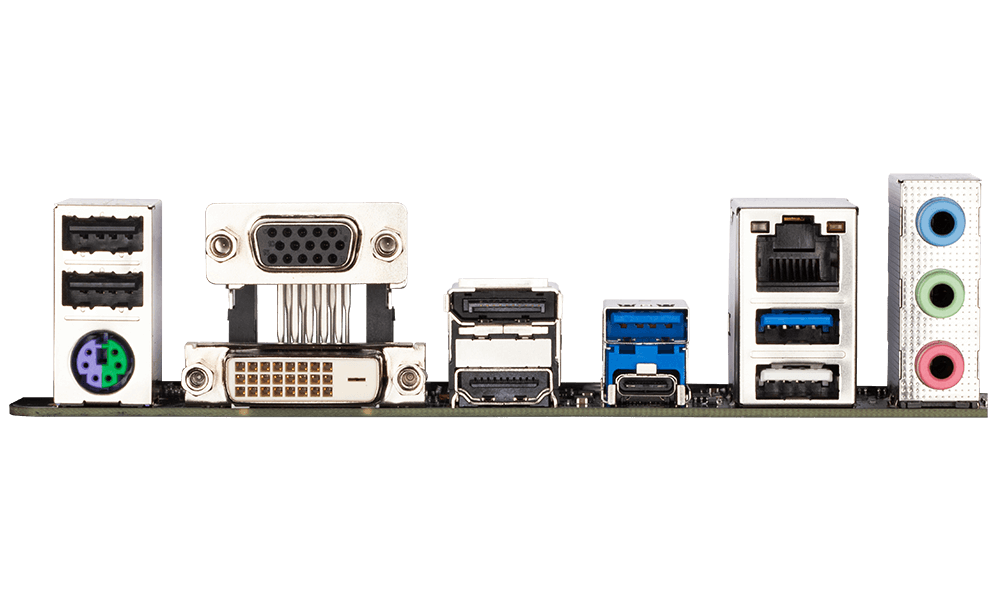

Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x D-Sub port
  3. 1 x DVI-D port
  4. 1 x HDMI port
  5. 1 x DisplayPort
  6. 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
  7. 3 x USB 3.2 Gen 1 ports
  8. 2 x USB 2.0/1.1 ports
  9. 1 x RJ-45 port
  10. 3 x audio jacks
I/O Controller
  1. iTE I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundled Software
  1. Norton Internet Security (OEM version)
  2. cFosSpeed
Operating System
  1. Support for Windows 10 64-bit
Form Factor
  1. Micro ATX Form Factor; 24.4cm x 24.4cm
