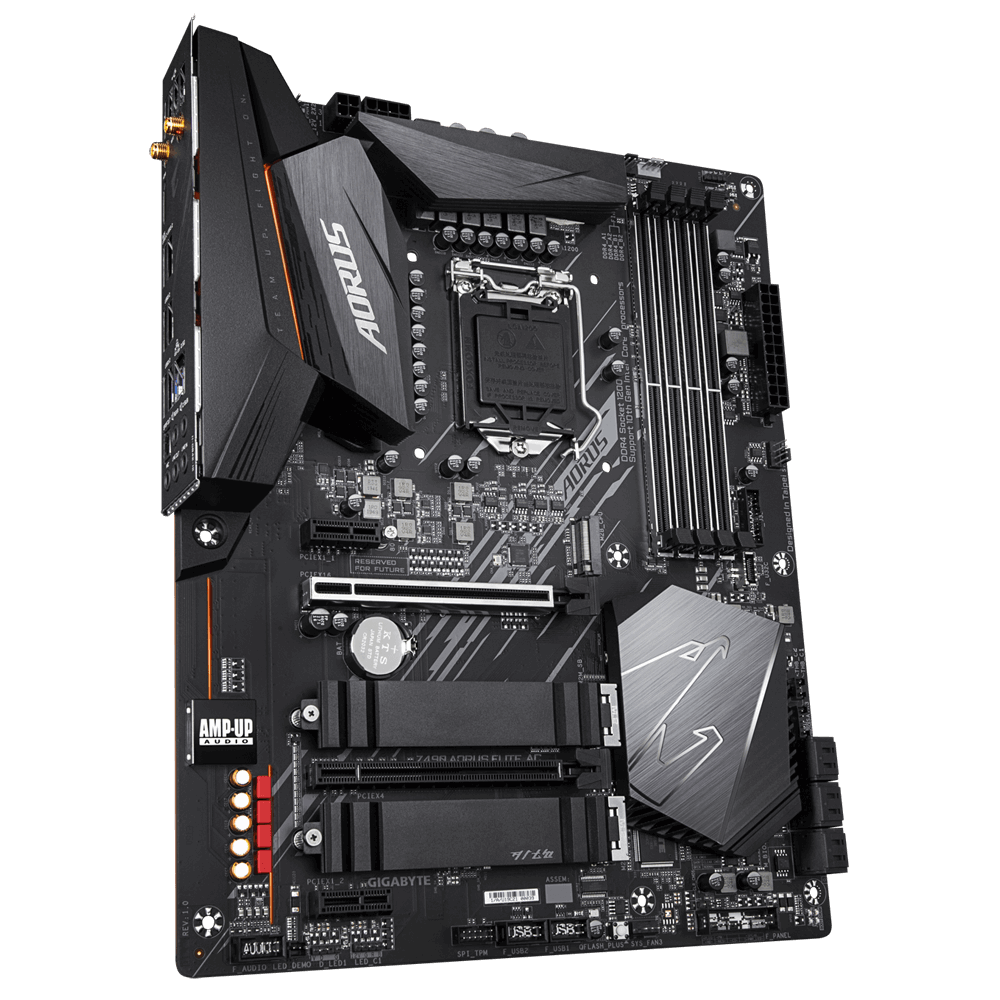

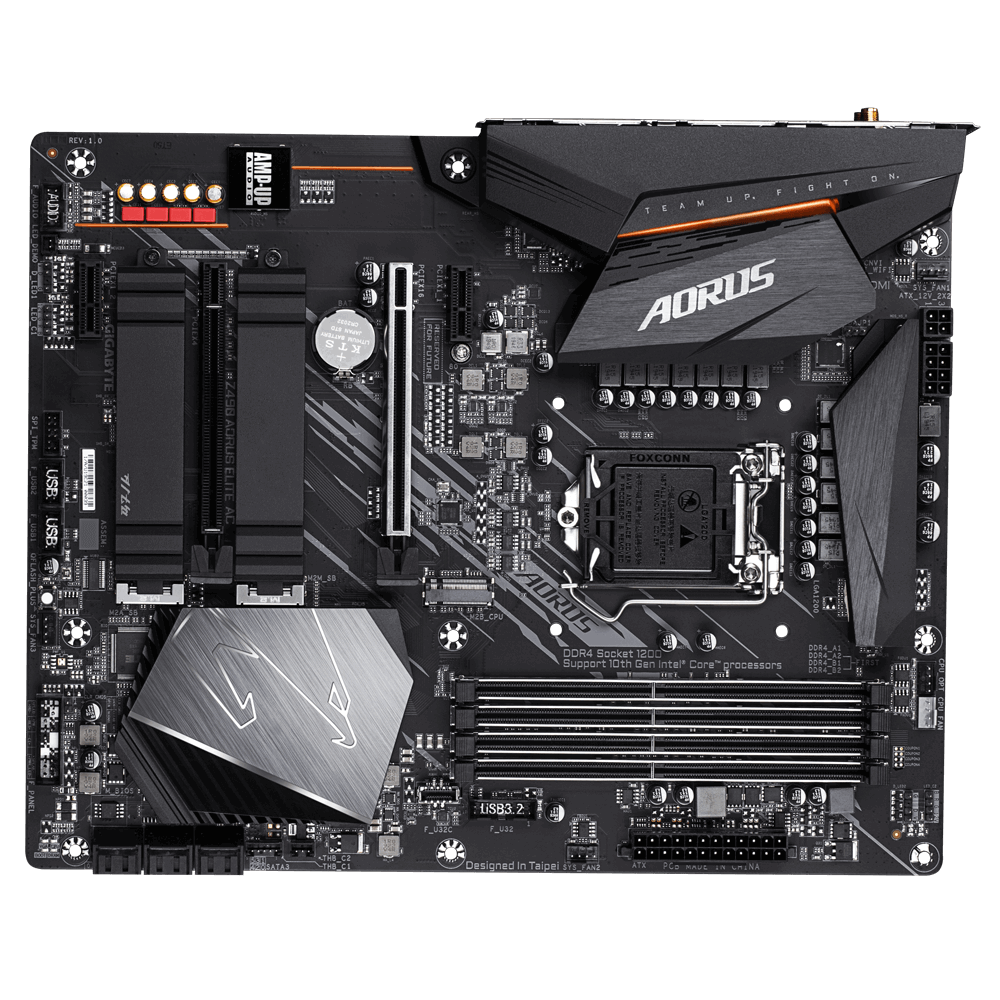

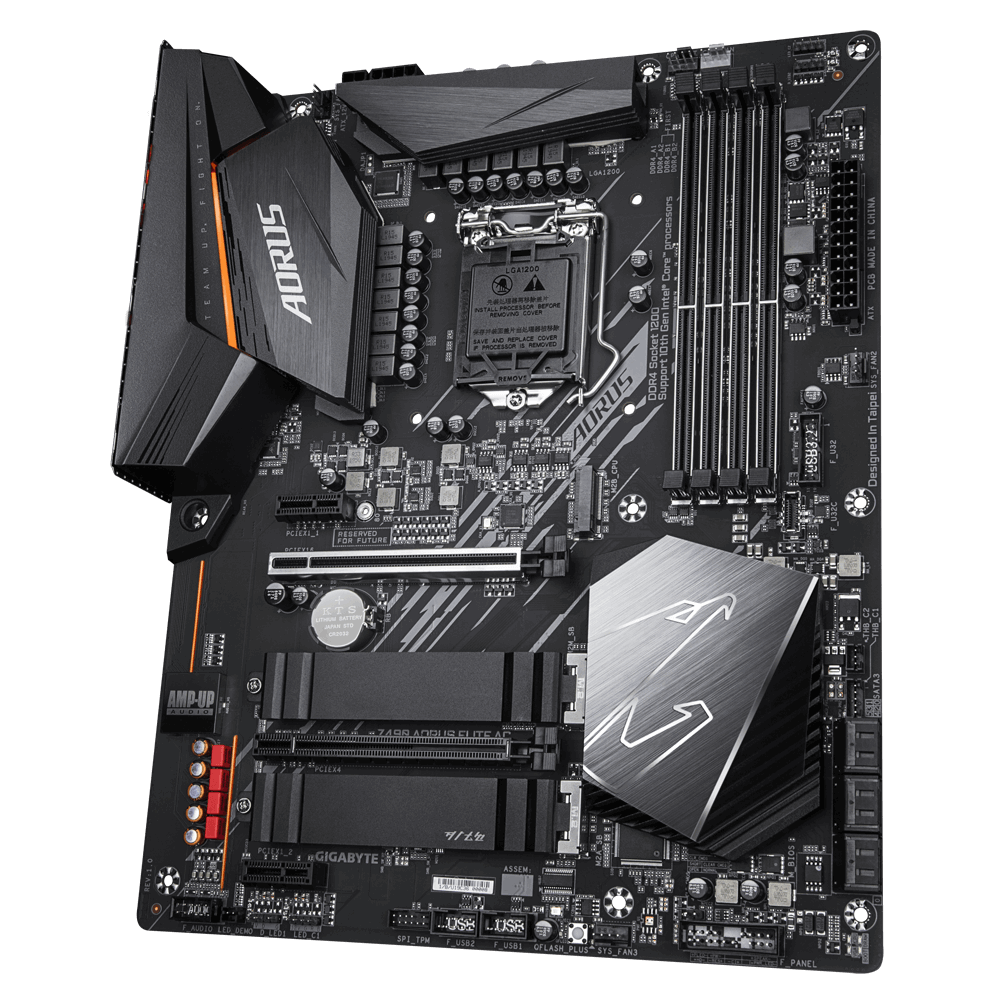

Z490 AORUS ELITE AC (rev. 1.0)
Intel Z490 AORUS Motherboard with Direct 12 Phases Digital VRM
Design, Comprehensive Thermal Solution with Enlarged Surface
Heatsink, Intel Dual Band 802.11ac WIFI, 2.5GbE LAN, RGB FUSION
2.0
- Supports 10th Gen Intel Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Intel Optane™ Memory Ready
- Direct 12 Phases Digital VRM Solution with 50A DrMOS
- Shielded Memory Routing for Better Memory Overclocking
- Advanced Thermal Design with Enlarged Surface Heatsink
- Onboard Intel Dual Band 802.11ac WIFI & BT5 with AORUS
Antenna
- AMP-UP Audio with ALC1200 and WIMA Audio Capacitors
- Fast 2.5GbE LAN with Bandwidth Management
- Dual Ultra-Fast NVMe PCIe 3.0 x4 M.2 with Thermal Guards
- Pre-installed IO Shield for Easy and Quick Installation
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show
Design, Support Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan
Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and
Graphics Card
TECHNICAL SPECIFICATIONS
|
CPU |
- Support for 10th Generation Intel Core™ i9 processors/Intel
Core™ i7 processors/Intel Core™ i5 processors/Intel Core™ i3
processors/Intel Pentium processors/Intel Celeron processors in the
LGA1200 package
- L3 cache varies with CPU
|
|
Chipset |
- Intel Z490 Express Chipset
|
|
Memory |
- 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single
DIMM capacity) of system memory
- Dual channel memory architecture
- Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/
4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) /
4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) /
3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) /
3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 /
2133 MHz memory modules
* To support 3200 MHz, you must use XMP memory.
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
(operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory
modules
- Support for Extreme Memory Profile (XMP) memory modules
|
|
Onboard Graphics |
Integrated Graphics Processor-Intel HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Maximum shared memory of 512 MB
|
|
Audio |
- Realtek ALC1200 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
|
|
LAN |
- Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
|
|
Wireless Communication module |
Intel Wi-Fi AC 9462:
- Intel CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz
Dual-Band
- BLUETOOTH 5
- Support for 1x1 11ac wireless standard and up to 433 Mbps data
rate
* Actual data rate may vary depending on environment and
equipment.
|
|
Expansion Slots |
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is
to be installed, be sure to install it in the PCIEX16 slot.
- 1 x PCI Express x16 slot, running at x4 (PCIEX4)
- 2 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0
standard.)
|
|
Multi-Graphics Technology |
- Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™
technologies
|
|
Storage Interface |
- 2 x M.2 connectors (Socket 3, M key, type 2242/2260/2280/22110
SATA and PCIe x4/x2 SSD support) (M2M_SB/M2A_SB)
- 6 x SATA 6Gb/s connectors
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices
for the M.2 and SATA connectors.
- Intel Optane™ Memory Ready
|
|
USB |
Chipset:
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available
through the internal USB header
- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports
available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports
available through the internal USB headers)
|
|
Internal I/O Connectors |
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 4-pin ATX 12V power connector
- 2 x M.2 Socket 3 connectors
- 6 x SATA 6Gb/s connectors
- 1 x CPU fan header
- 1 x water cooling CPU fan header
- 3 x system fan headers
- 2 x addressable LED strip headers
- 2 x RGB LED strip headers
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (For the GC-TPM2.0
SPI/GC-TPM2.0 SPI 2.0 module only)
- 2 x Thunderbolt™ add-in card connectors
- 1 x Clear CMOS jumper
- 1 x Q-Flash Plus button
|
|

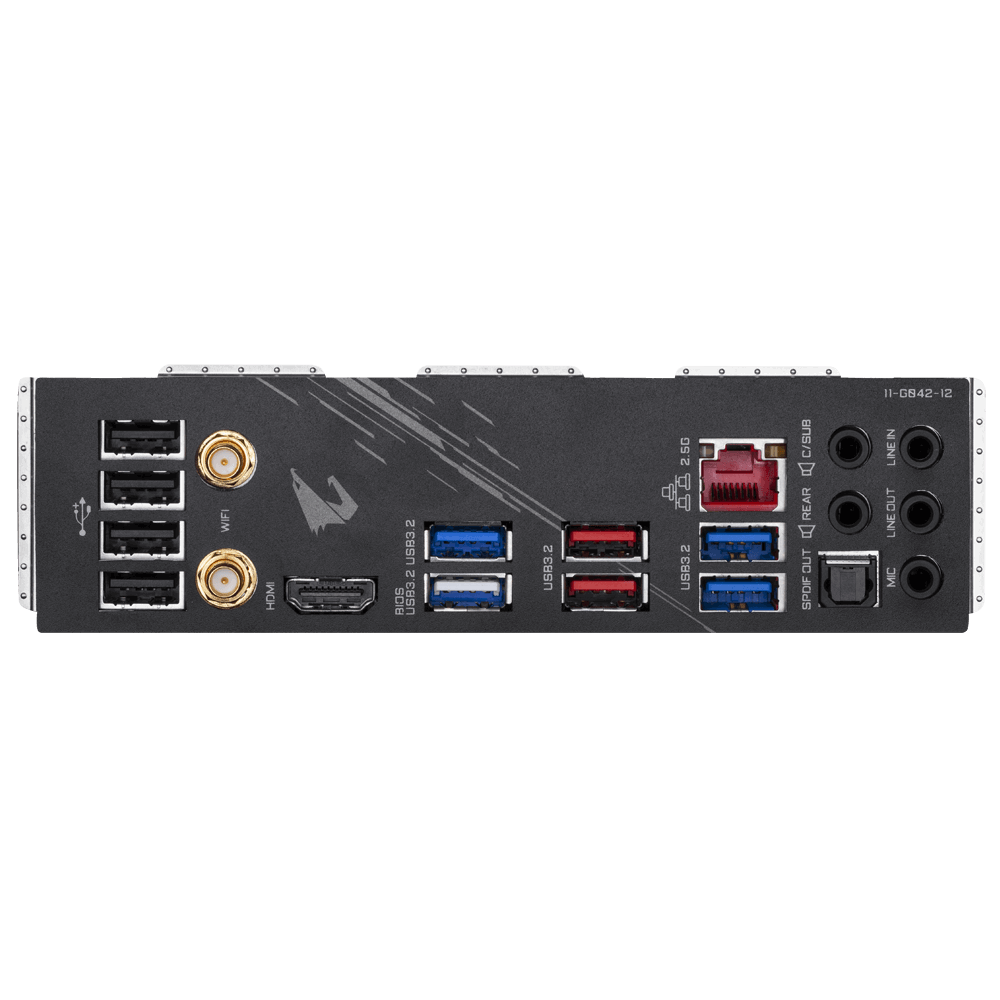

Back Panel Connectors |
- 2 x USB 3.2 Gen 2 Type-A ports (red)
- 4 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 2 x SMA antenna connectors (1T1R)
- 1 x HDMI port
- 1 x RJ-45 port
- 1 x optical S/PDIF Out connector
- 5 x audio jacks
|
|
I/O Controller |
- TE I/O Controller Chip
|
|
H/W Monitoring |
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Overheating warning
- Fan fail warning
- Fan speed control
* Whether the fan speed control function is supported will depend
on the fan you install.
|
|
BIOS |
- 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique
Features
|
|
Unique Features |
- Support for APP Center
* Available applications in APP Center may vary by motherboard
model. Supported functions of each application may also vary
depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
- Support for Q-Flash Plus
- Support for Q-Flash
- Support for Xpress Install
|
|
Bundled Software |
- Norton Internet Security (OEM version)
- Realtek 8125 Gaming LAN Bandwidth Control Utility
|
|
Operating System |
- Support for Windows 10 64-bit
|
|
Form Factor |
- ATX Form Factor; 30.5cm x 24.4cm
|
