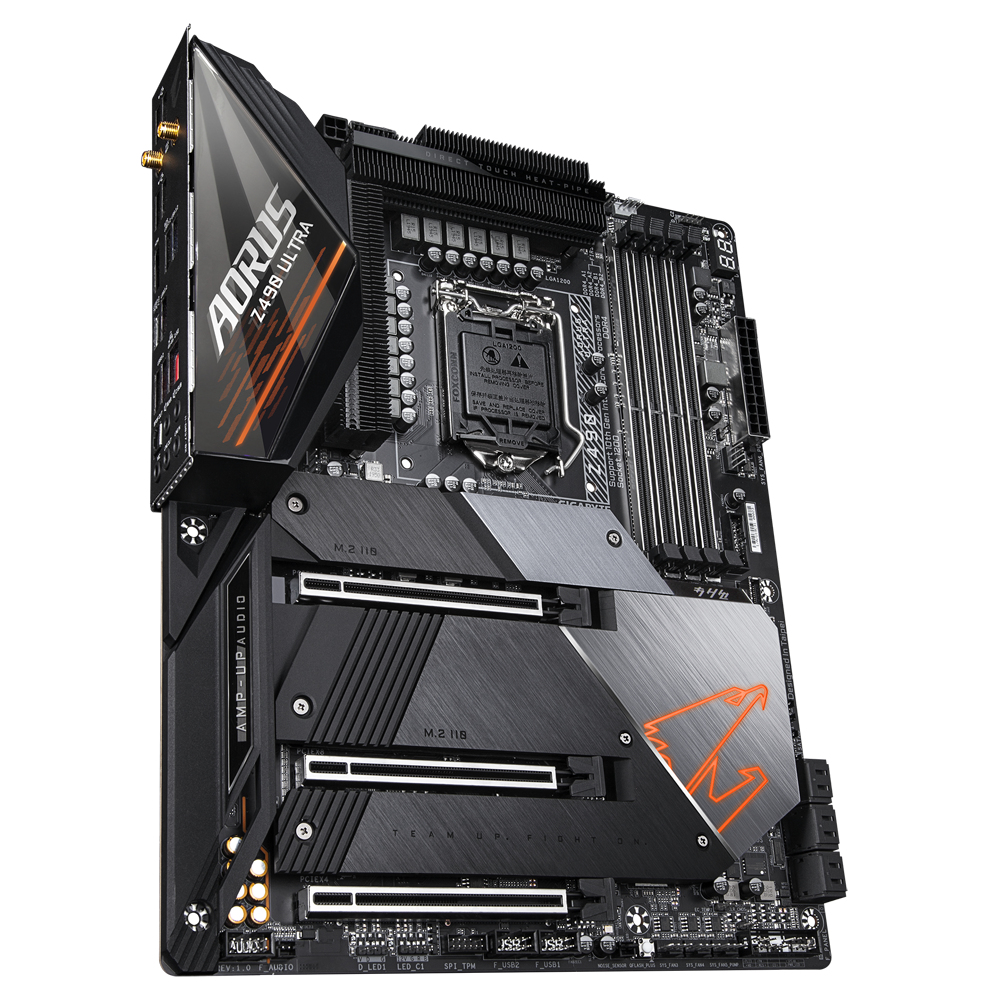

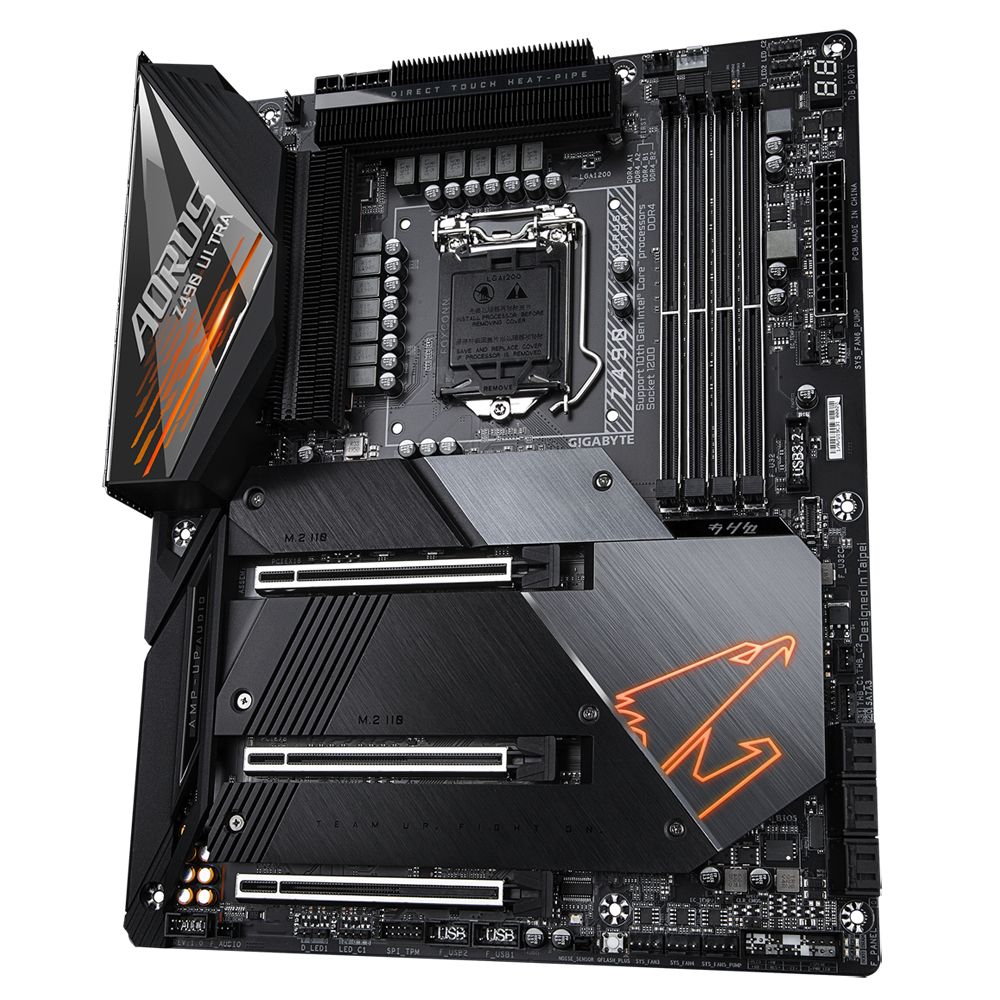

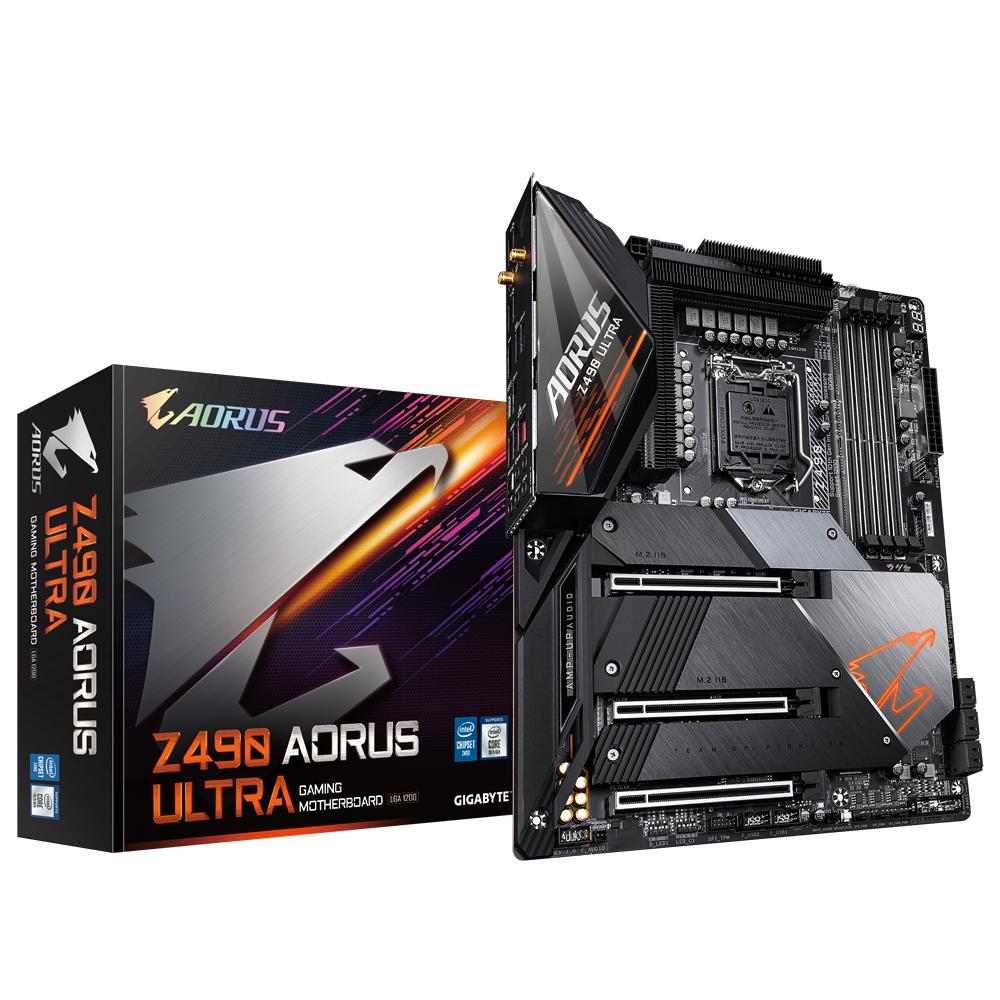

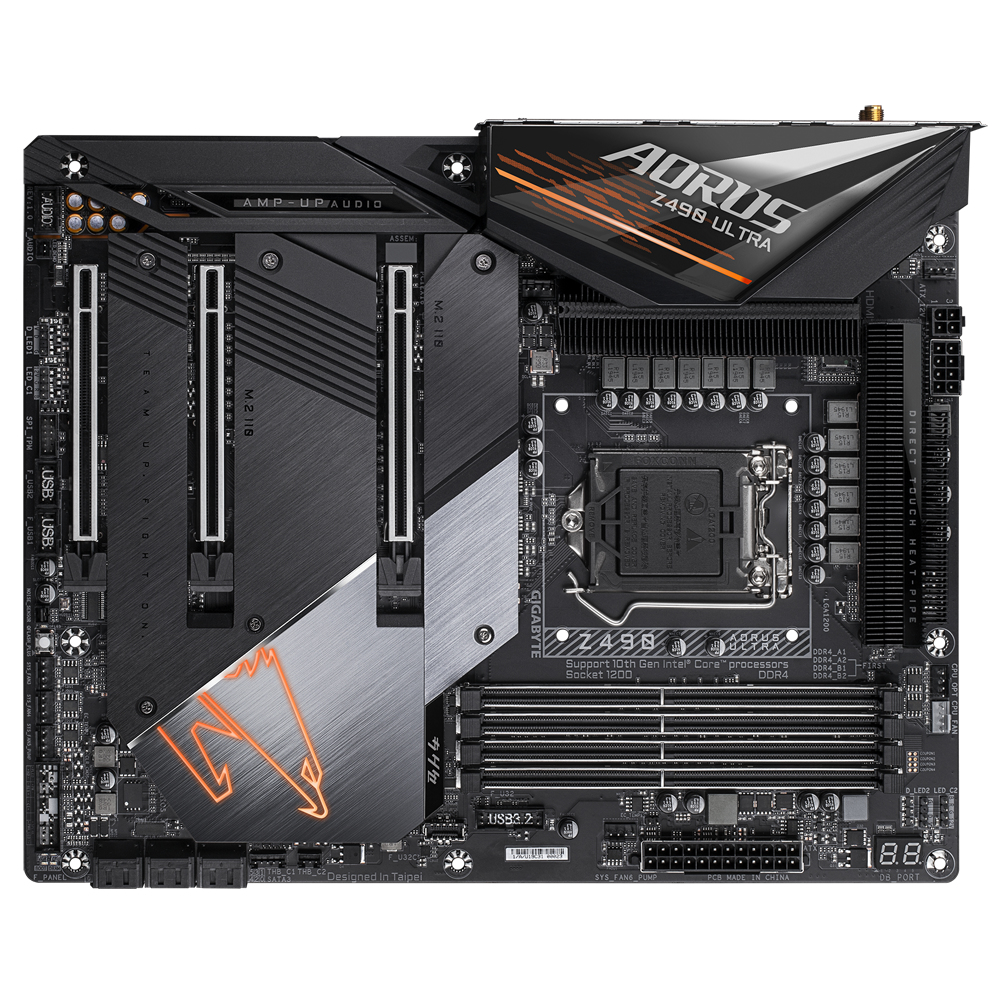

GIGABYTE MB Sc LGA1200 Z490 AORUS ULTRA 1.0, Intel Z490, 4xDDR4, VGA, WI-FI
GIGABYTE MB Sc LGA1200 Z490 AORUS ULTRA 1.0, Intel Z490, 4xDDR4, VGA, WI-FIGIGABYTE MB Sc LGA1200 Z490 AORUS ULTRA 1.0, Intel Z490, 4xDDR4, VGA, WI-FIGIGABYTE MB Sc LGA1200 Z490 AORUS ULTRA 1.0, Intel Z490, 4xDDR4, VGA, WI-FIGIGABYTE MB Sc LGA1200 Z490 AORUS ULTRA 1.0, Intel Z490, 4xDDR4, VGA, WI-FIGIGABYTE MB Sc LGA1200 Z490 AORUS ULTRA 1.0, Intel Z490, 4xDDR4, VGA, WI-FI
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

GIGABYTE MB Sc LGA1200 Z490 AORUS ULTRA 1.0, Intel Z490, 4xDDR4, VGA, WI-FI

Z490 AORUS ULTRA (rev. 1.0) Intel Z490 AORUS Motherboard with Direct 12 Phase Digital VRM Design, Comprehensive Thermal Solution with NanoCarbon Fins-Array II, Intel WiFi 6 802.11ax, Intel 2.5GbE LAN, RGB FUSION 2.0 Supports 10th Gen Intel Core™ Series Processors Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs Intel Optane™ Memory Ready Direct 12 Phase Digital VRM…
Kategorie: Základní desky
Kód: 2777301PN: Z490 AORUS ULTRAVýrobce: GIGABYTEZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.
9 962   včetně DPH
Cena bez DPH: 8 233 Kč
Běžná maloobchodní cena: 10 583 Kč
Nákup po telefonu
+420 587 407 456
Skladem poslední 4 kusy
Kdy zboží dostanu?termín / cena přepravy
Na prodejně v Olomouci (po objednání)již zítra / ZDARMA!
Přepravní službou (ČR)již 4.6. / od 99 Kč
Na výdejním místě (ČR)již 5.6. / od 99 Kč
Uvedený termín je průměrná doba doručení uvedenou službou.

Popis produktu

Z490 AORUS ULTRA (rev. 1.0)

Intel Z490 AORUS Motherboard with Direct 12 Phase Digital VRM Design, Comprehensive Thermal Solution with NanoCarbon Fins-Array II, Intel WiFi 6 802.11ax, Intel 2.5GbE LAN, RGB FUSION 2.0

  • Supports 10th Gen Intel Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Intel Optane™ Memory Ready
  • Direct 12 Phase Digital VRM Solution with 55A DrMOS
  • Shielded Memory Routing for Better Memory Overclocking
  • NanoCarbon Fins-Array II Heatsink and Direct Touch Heatpipe II
  • Onboard Intel WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
  • AMP-UP Audio with ALC1220-VB and WIMA for Rear 120dB SNR
  • Blazing Fast Intel 2.5GbE LAN with cFosSpeed
  • Triple Ultra-Fast NVMe PCIe 3.0 x4 M.2 with Thermal Guards II
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

TECHNICAL SPECIFICATIONS

CPU
  1. Support for 10th Generation Intel Core™ i9 processors/Intel Core™ i7 processors/Intel Core™ i5 processors/Intel Core™ i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package
  2. L3 cache varies with CPU
Chipset
  1. Intel Z490 Express Chipset
Memory
  1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  2. Dual channel memory architecture
  3. Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
    * To support a DDR4 3200 MHz, you must use XMP memory.
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:

  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.

Maximum shared memory of 512 MB

Audio
  1. Realtek ALC1220-VB codec
    * The back panel line out jack supports DSD audio.
  2. Support for DTS:X Ultra
  3. High Definition Audio
  4. 2/4/5.1/7.1-channel
  5. Support for S/PDIF Out
LAN
  1. Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Wireless Communication module

Intel Wi-Fi 6 AX201

  1. WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 5.0
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
  3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)

(All of the PCI Express slots conform to PCI Express 3.0 standard.)

Multi-Graphics Technology
  1. Support for NVIDIA Quad-GPU SLI™ and 2-Way NVIDIA SLI™ technologies
  2. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface
  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2P_SB)
  2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_CPU)
  3. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB)
  4. 6 x SATA 6Gb/s connectors
  5. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
  6. Intel Optane™ Memory Ready
USB

Chipset:

  1. 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
  2. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
  3. 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  4. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hubs:

  1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x 4-pin ATX 12V power connector
  4. 1 x CPU fan header
  5. 1 x water cooling CPU fan header
  6. 4 x system fan headers
  7. 2 x system fan/water cooling pump headers
  8. 2 x addressable LED strip headers
  9. 2 x RGB LED strip headers
  10. 3 x M.2 Socket 3 connectors
  11. 6 x SATA 6Gb/s connectors
  12. 1 x front panel header
  13. 1 x front panel audio header
  14. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
  15. 1 x USB 3.2 Gen 1 header
  16. 2 x USB 2.0/1.1 headers
  17. 2 x Thunderbolt™ add-in card connectors
  18. 1 x noise detection header
  19. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  20. 1 x Clear CMOS jumper
  21. 2 x temperature sensor headers
  22. 1 x Q-Flash Plus button

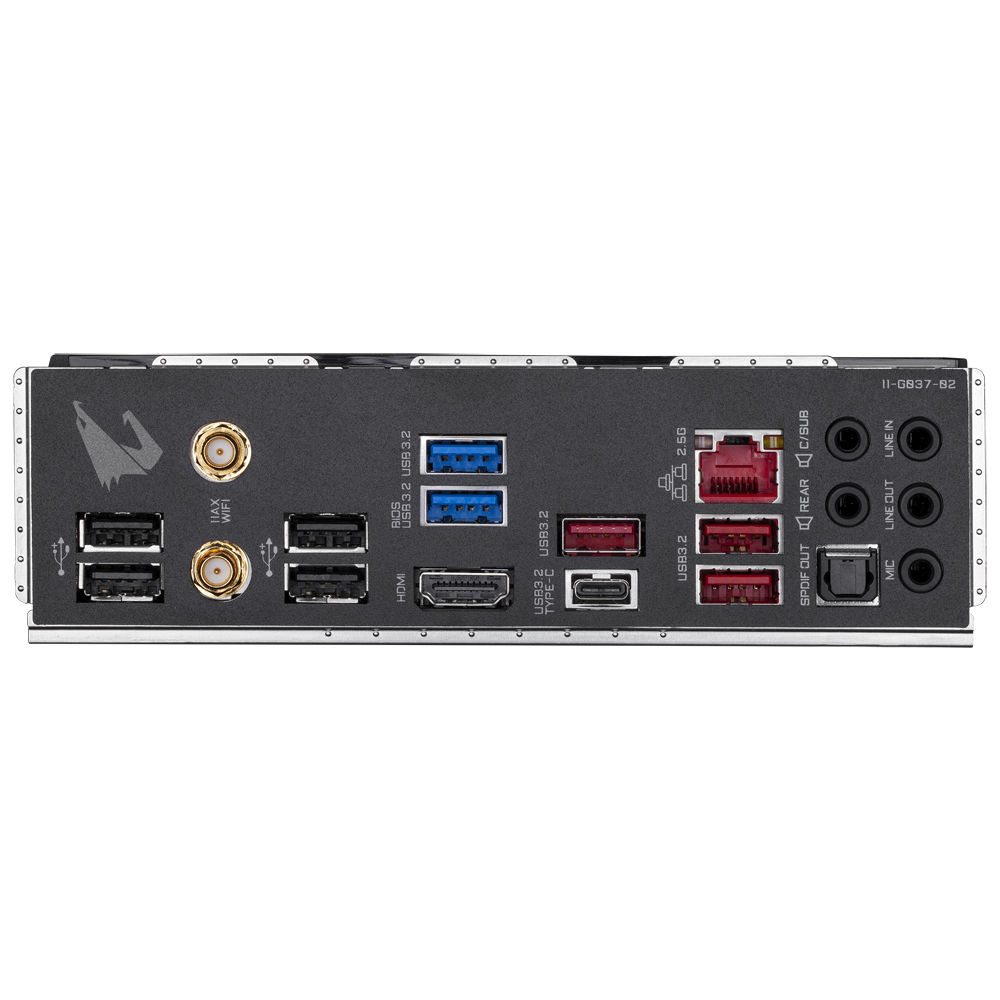

Back Panel Connectors
  1. 1 x HDMI port
  2. 2 x SMA antenna connectors (2T2R)
  3. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
  4. 3 x USB 3.2 Gen 2 Type-A ports (red)
  5. 2 x USB 3.2 Gen 1 ports
  6. 4 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 1 x optical S/PDIF Out connector
  9. 5 x audio jacks
I/O Controller
  1. iTE I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Overheating warning
  6. Fan fail warning
  7. Fan speed control
  8. * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  9. Noise detection
BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundled Software
  1. Norton Internet Security (OEM version)
  2. cFosSpeed
  3. XSplit Gamecaster + Broadcaster (12 months license)
Operating System
  1. Support for Windows 10 64-bit
Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm

Parametry

Další rozhraníS/PDIF
Další rozhraníWiFi
FormátATX
ChipsetIntel
Integrovaná grafická kartaAno (CPU)
Integrovaná LAN karta1
PCI express 16x1
Podpora RAID1
Podpora RAID5
Podpora RAID10
RozhraníHDMI
RozhraníUSB 3.2
Rozhraní3.5mm Jack
RozhraníUSB Type-C
Socket (patice)Socket 1151
Technologie paměti RAMDDR4
