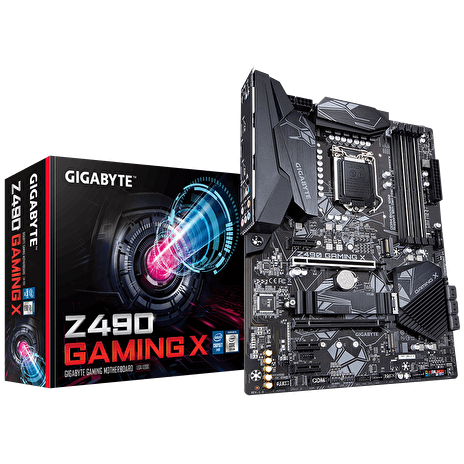

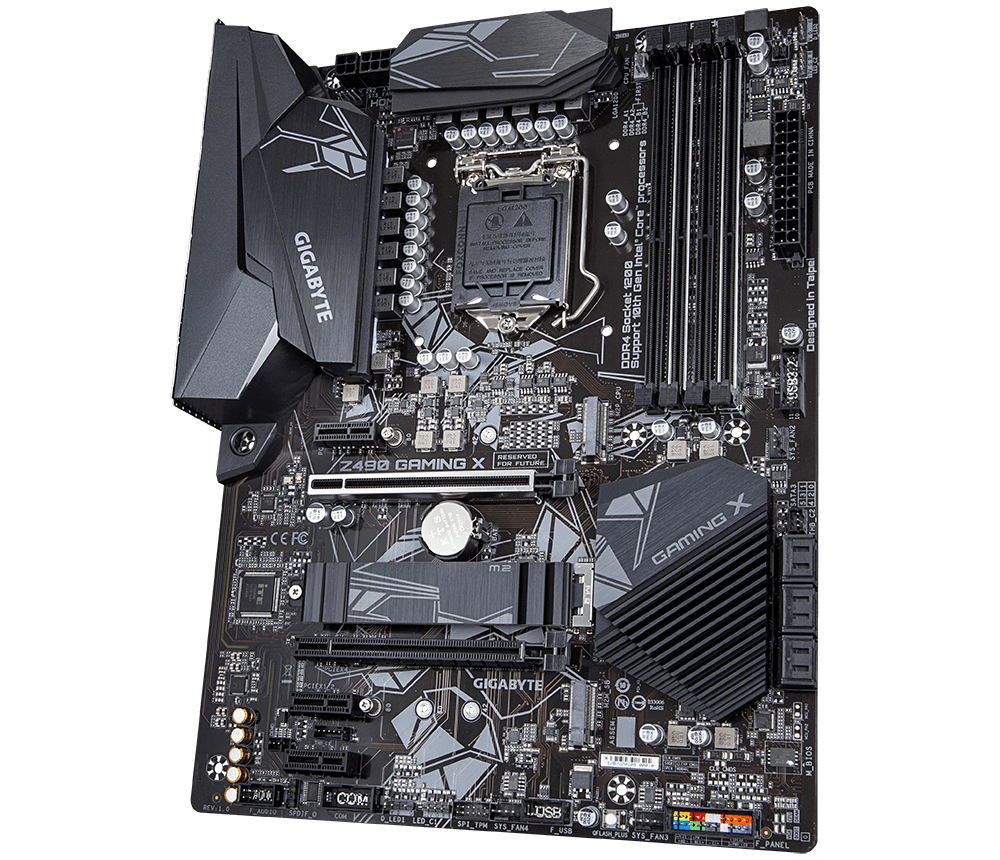

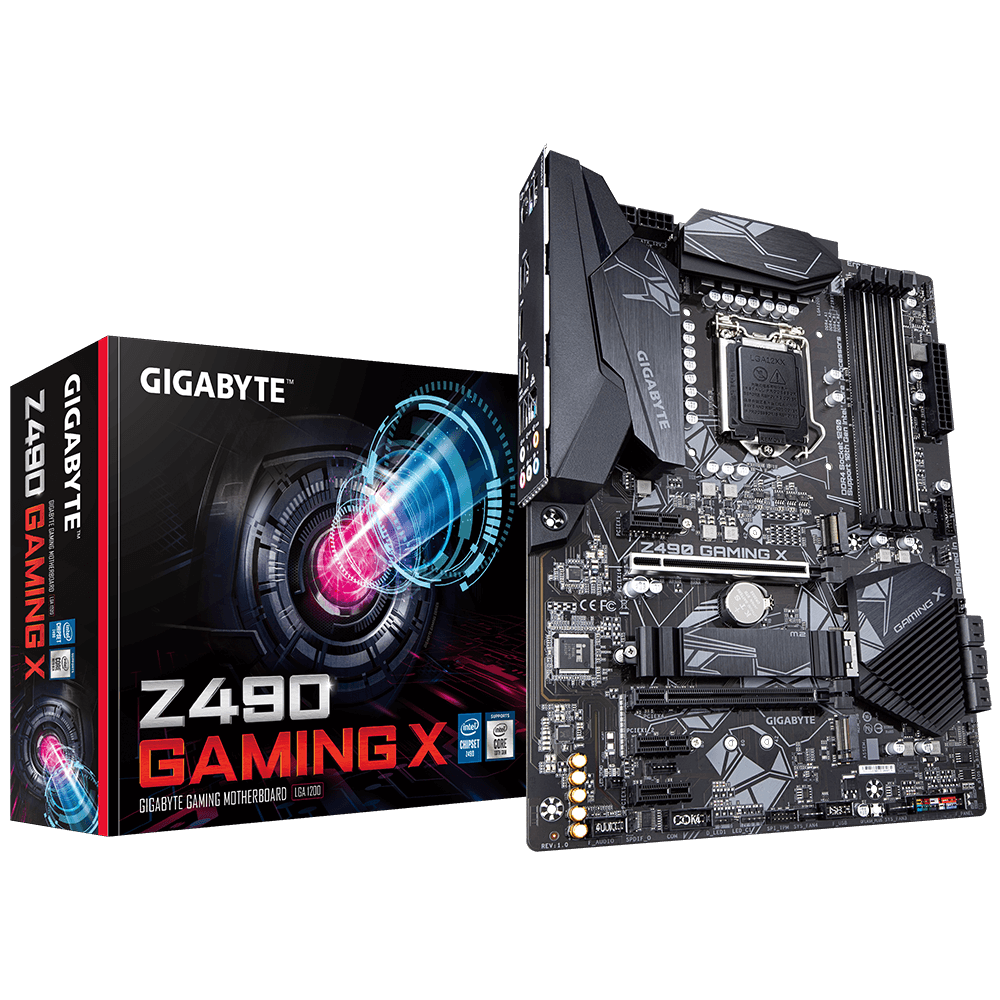

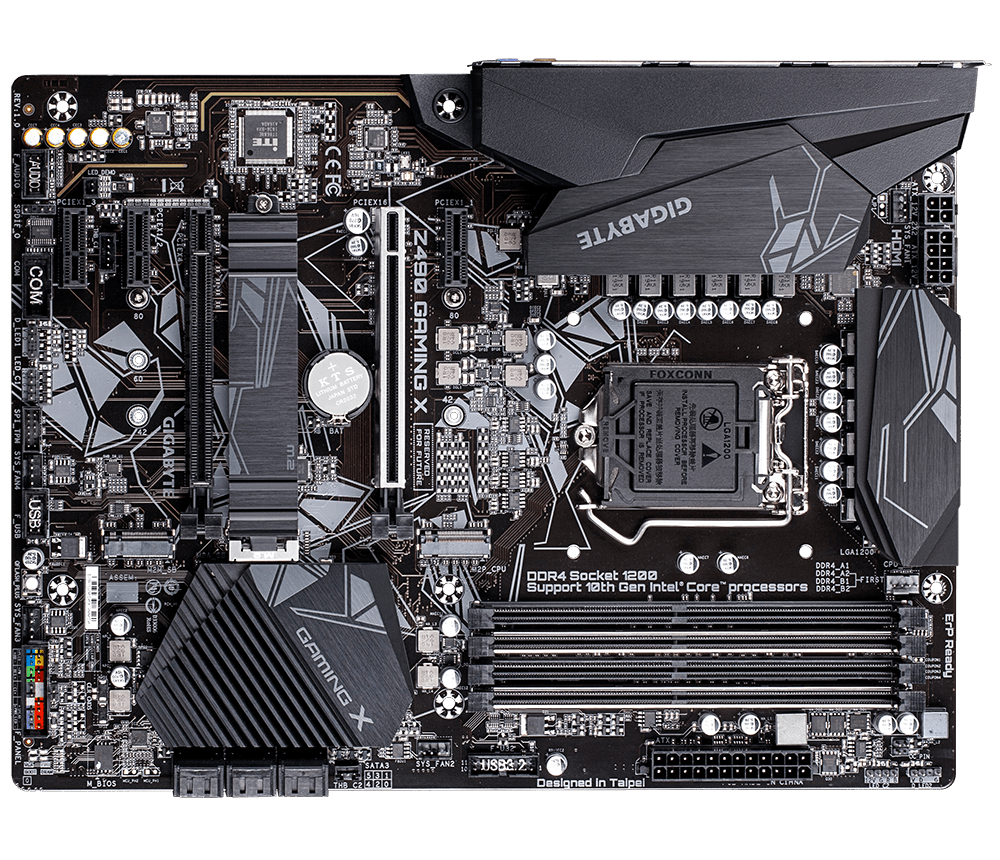

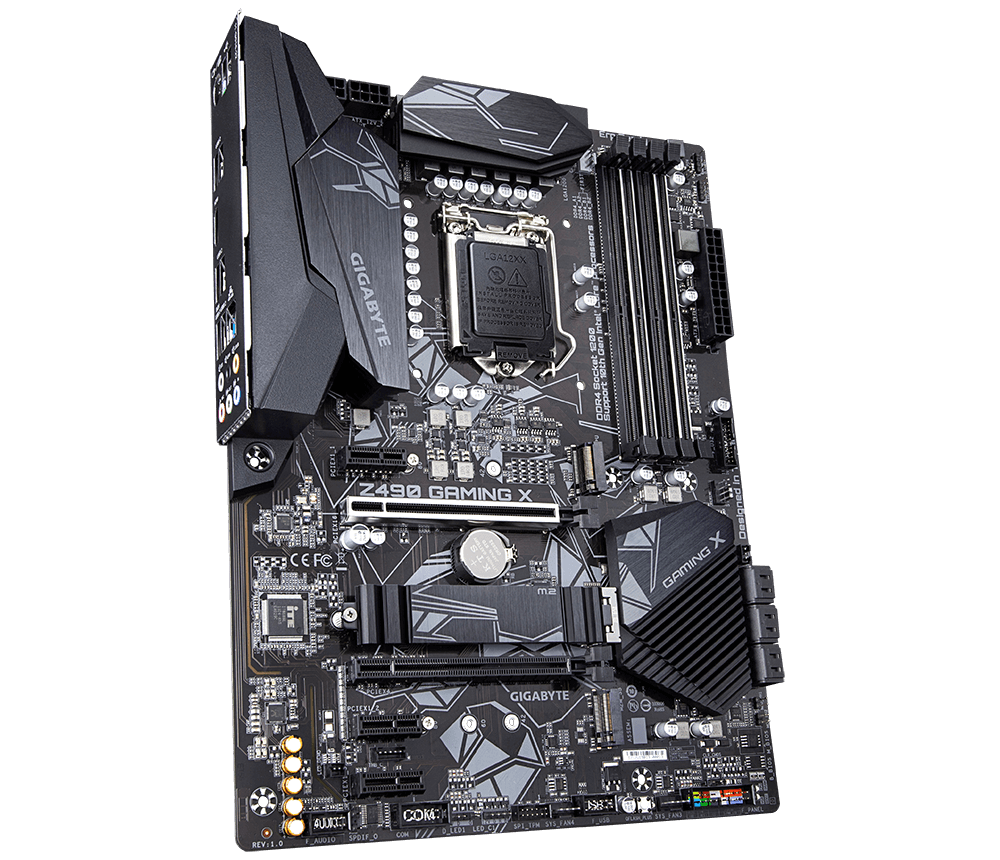

GIGABYTE MB Sc LGA1200 Z490 GAMING X, Intel Z490, 4xDDR4, VGA
GIGABYTE MB Sc LGA1200 Z490 GAMING X, Intel Z490, 4xDDR4, VGAGIGABYTE MB Sc LGA1200 Z490 GAMING X, Intel Z490, 4xDDR4, VGAGIGABYTE MB Sc LGA1200 Z490 GAMING X, Intel Z490, 4xDDR4, VGAGIGABYTE MB Sc LGA1200 Z490 GAMING X, Intel Z490, 4xDDR4, VGA
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

GIGABYTE MB Sc LGA1200 Z490 GAMING X, Intel Z490, 4xDDR4, VGA

Z490 GAMING X (rev. 1.0) Intel Z490 GAMING Motherboard with Direct 11+1 Phases Power Design, 2-Way CrossFire™ Multi-Graphics, Intel GbE with cFosSpeed, USB 3.2 Gen2 Type-A, Dual M.2 with 1 Thermal Guard, Smart Fan 5, Dual Armor with Ultra Durable™ Technology, RGB FUSION 2.0, Q-FLASH PLUS Supports 10th Gen Intel Core™ Series Processors Dual Channel Non-ECC Unbuffered DDR4…
Kategorie: Základní desky
Kód: 2777302PN: Z490 GAMING XVýrobce: GIGABYTEZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.
Aktuálně není v nabídce

Popis produktu

Z490 GAMING X (rev. 1.0)

Intel Z490 GAMING Motherboard with Direct 11+1 Phases Power Design, 2-Way CrossFire™ Multi-Graphics, Intel GbE with cFosSpeed, USB 3.2 Gen2 Type-A, Dual M.2 with 1 Thermal Guard, Smart Fan 5, Dual Armor with Ultra Durable™ Technology, RGB FUSION 2.0, Q-FLASH PLUS

  • Supports 10th Gen Intel Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Intel Optane™ Memory Ready
  • Direct 11+1 Phases Digital VRM Solution with DrMOS
  • Enlarged VRM Heatsink with 5W/mK Thermal Conductive Pad
  • Intel GbE LAN with cFosSpeed Internet Accelerator Software
  • Multi-Way Graphics Support with Dual Armor and Ultra Durable™ Design
  • ALC1200 Multi-Channel Audio with High Quality Audio Capacitors and Audio Noise Guard
  • Dual Ultra-Fast M.2 with PCIe Gen3 X4 (1 with Thermal Guard) & SATA Interface
  • Intel Native USB 3.2 Gen2 Type-A with Speed Up To 10Gbps
  • RGB FUSION 2.0 Support Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card
  • CEC 2019 Ready, Save the Power as Easy as One Click
  • Lightning-Fast Intel Thunderbolt™ 3 AIC Support

TECHNICAL SPECIFICATIONS

CPU
  1. Support for 10th Generation Intel Core™ i9 processors/Intel Core™ i7 processors/Intel Core™ i5 processors/Intel Core™ i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package
  2. L3 cache varies with CPU
Chipset
  1. Intel Z490 Express Chipset
Memory
  1. Intel Core™ i9/i7 processors:
    DDR4 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
  2. Intel Core™ i5/i3/Pentium/Celeron processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
  3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  4. Dual channel memory architecture
  5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  7. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:

  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.

Maximum shared memory of 512 MB

Audio
  1. Realtek ALC1200 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
LAN
  1. Intel GbE LAN chip (1000 Mbit/100 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x4
  3. 3 x PCI Express x1 slots
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology
  1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface
  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB)
  2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2M_SB)
  3. 6 x SATA 6Gb/s connectors
  4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
  5. Intel Optane™ Memory Ready
USB

Chipset:

  1. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  2. 7 x USB 3.2 Gen 1 ports (5 ports on the back panel, 2 ports available through the internal USB header)
  3. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 4-pin ATX 12V power connector
  3. 1 x 8-pin ATX 12V power connector
  4. 1 x CPU fan header
  5. 4 x system fan headers
  6. 2 x addressable LED strip headers
  7. 2 x RGB LED strip headers
  8. 6 x SATA 6Gb/s connectors
  9. 2 x M.2 Socket 3 connectors
  10. 1 x front panel header
  11. 1 x front panel audio header
  12. 1 x S/PDIF Out header
  13. 1 x USB 3.2 Gen 1 header
  14. 1 x USB 2.0/1.1 header
  15. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  16. 2 x Thunderbolt™ add-in card connectors
  17. 1 x serial port header
  18. 1 x Clear CMOS jumper
  19. 1 x Q-Flash Plus button

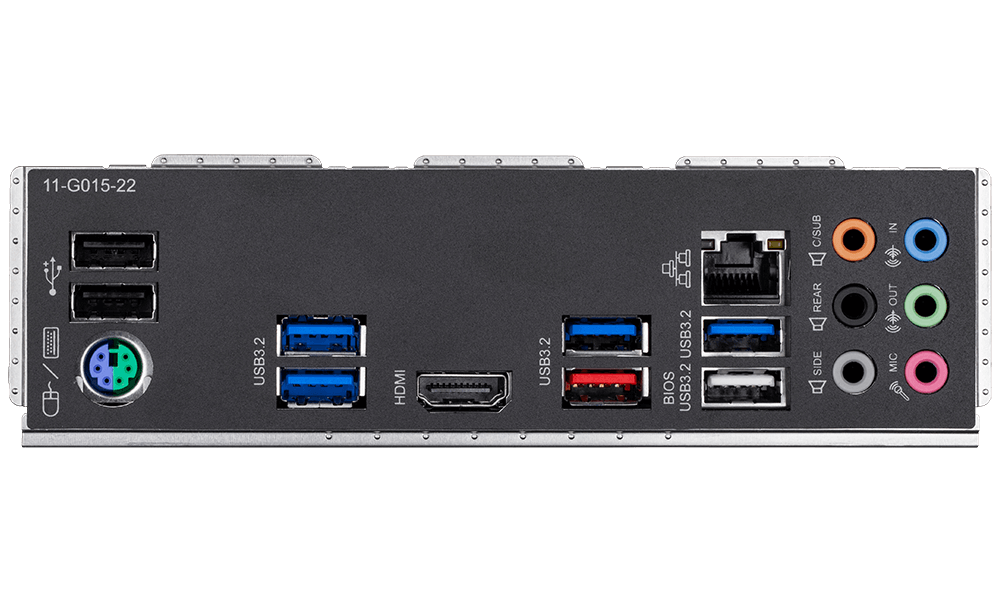

Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x HDMI port
  3. 1 x USB 3.2 Gen 2 Type-A port (red)
  4. 5 x USB 3.2 Gen 1 ports
  5. 2 x USB 2.0/1.1 ports
  6. 1 x RJ-45 port
  7. 6 x audio jacks
I/O Controller
  1. iTE I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundled Software
  1. Norton Internet Security (OEM version)
  2. cFosSpeed
Operating System
  1. Support for Windows 10 64-bit
Form Factor
  1. ATX Form Factor; 30.5cm x 23.0cm

Parametry

BlueToothNe
COM port (interní)Ne
DisplayPort / miniDisplayPortNe
DVINe
Grafická kartaAno (v závislosti na CPU)
HDMIAno
ChipsetZ490
IEEE 1394Ne
Integrované CPU na MBNe
LPT port (interní)Ne
Max. velikost op. paměti (GB)128
Maximální frekvence pamětí4600
PaticeLGA 1200
Počet konektorů SATA 6Gb/s6
Počet LAN výstupů1x LAN konektor
Počet paměťových slotů4
Počet pinů USB 2.0 (interní)1
Počet pinů USB 3.x (interní)1
Počet slotů M.22
Počet slotů PCIe x13
Počet slotů PCIe x162
Počet USB 2.0 (externí)2
Počet USB 3.x (externí)6
Podpora pro paměti typuDDR4
Podpora vProNe
RAID řadičAno
ThunderBolt (interní)Ano
TPM HeaderAno
Typ síťové kartyIntel
Velikost základní deskyATX
VGANe
Výrobce chipsetuIntel
WiFiNe
XMPAno
