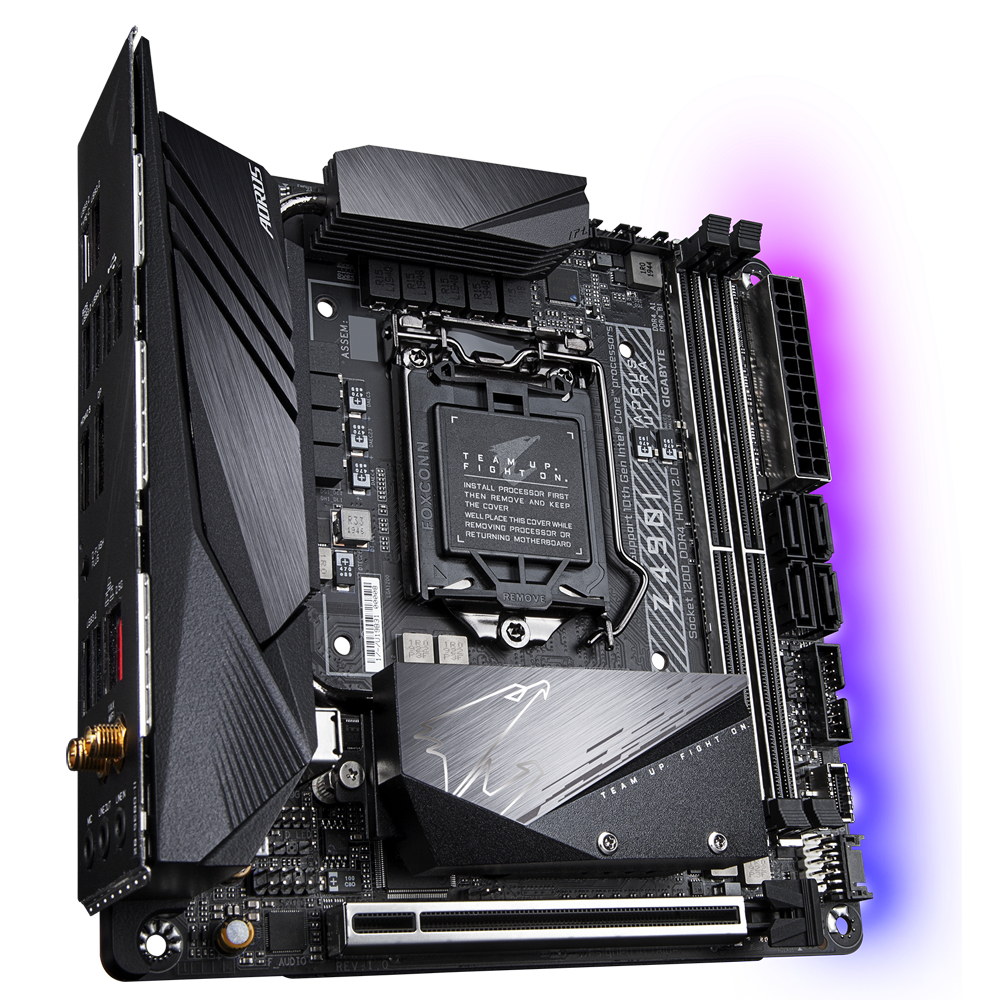

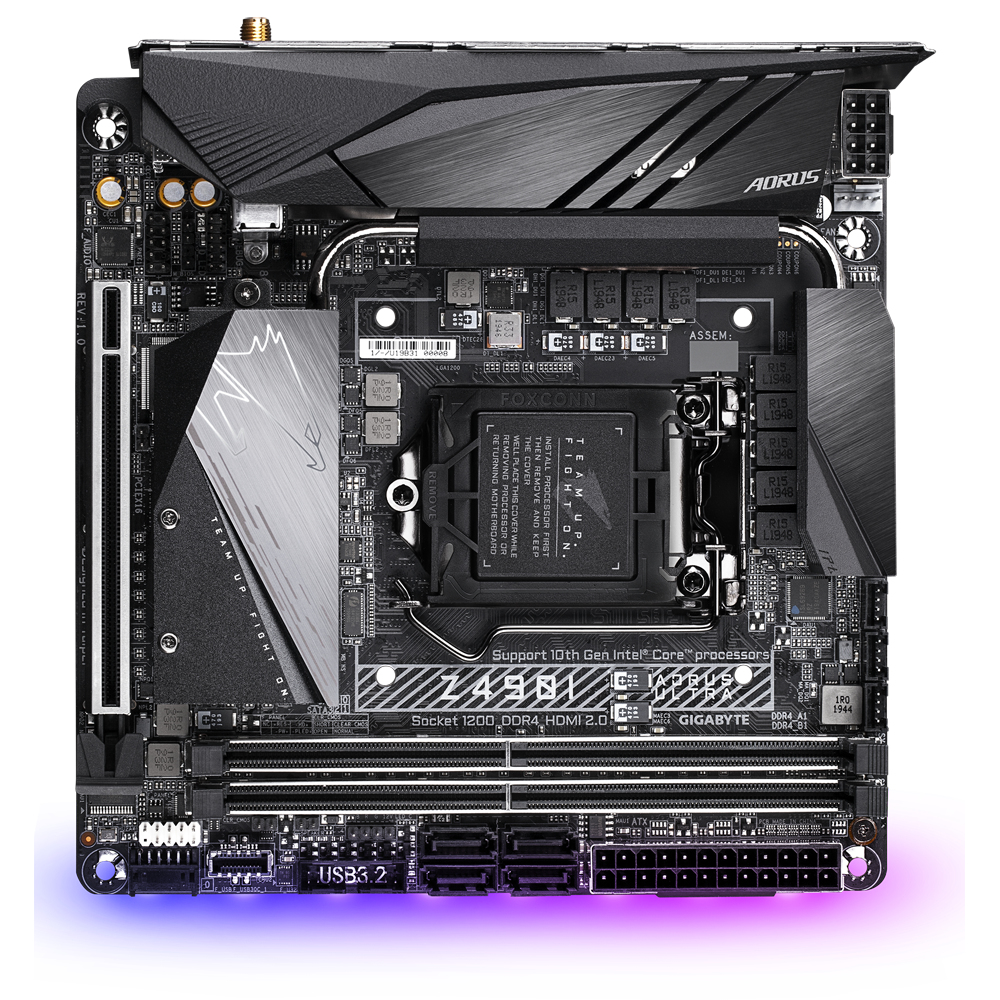

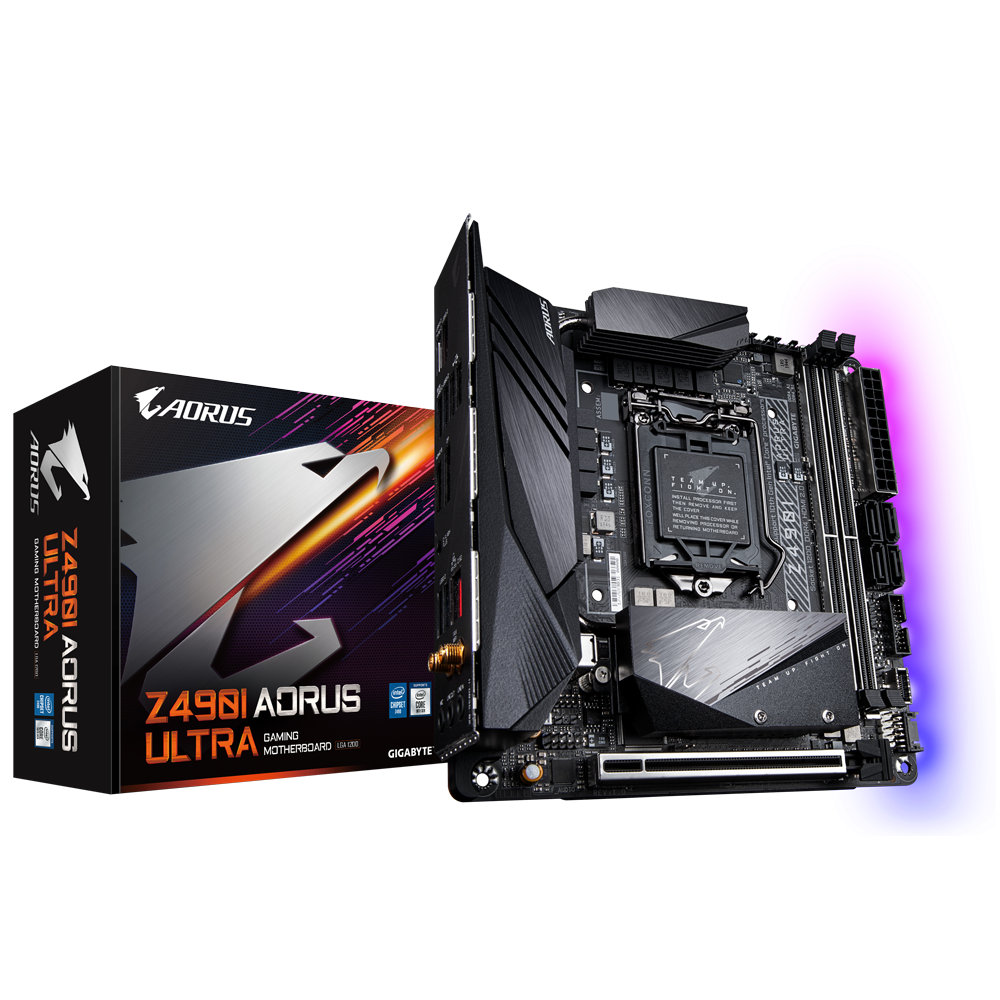

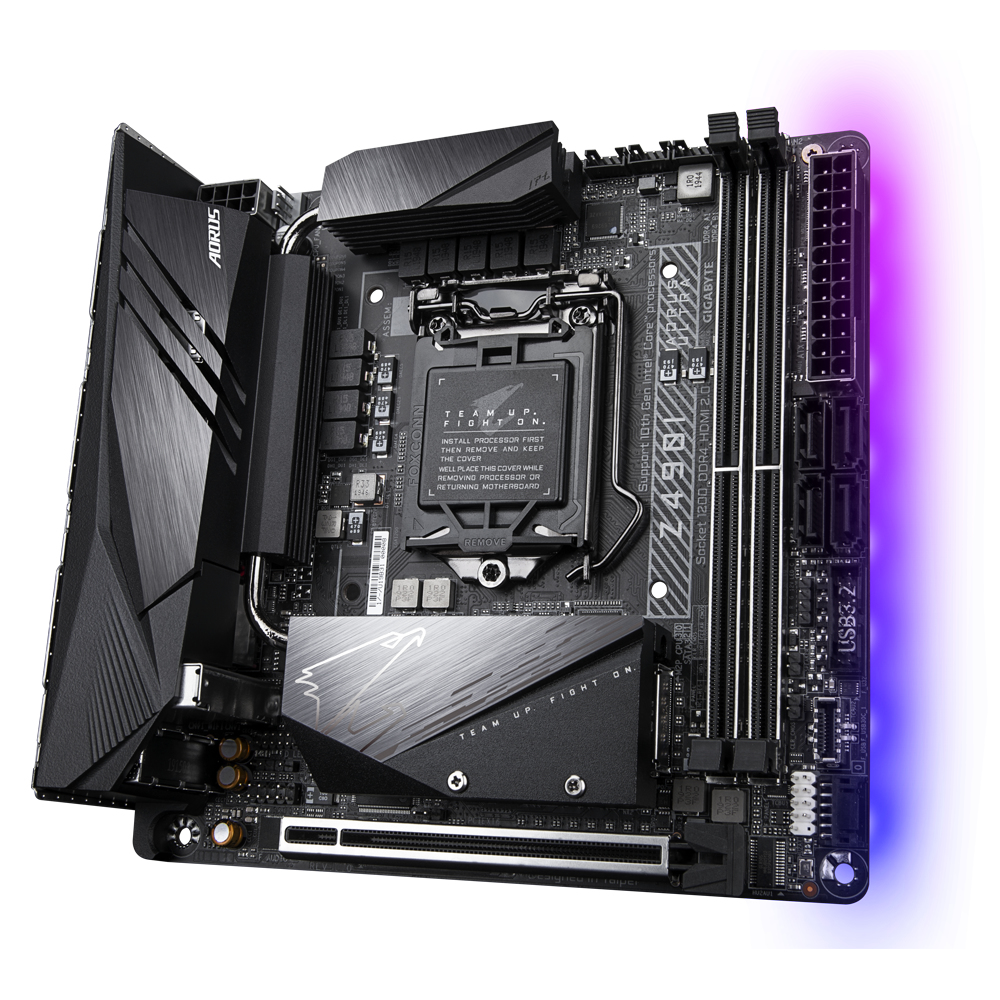

GIGABYTE MB Sc LGA1200 Z490I AORUS ULTRA 1.1, Intel 490, 2xDDR4, VGA, WI-FI, Mini-ITX
GIGABYTE MB Sc LGA1200 Z490I AORUS ULTRA 1.1, Intel 490, 2xDDR4, VGA, WI-FI, Mini-ITXGIGABYTE MB Sc LGA1200 Z490I AORUS ULTRA 1.1, Intel 490, 2xDDR4, VGA, WI-FI, Mini-ITXGIGABYTE MB Sc LGA1200 Z490I AORUS ULTRA 1.1, Intel 490, 2xDDR4, VGA, WI-FI, Mini-ITXGIGABYTE MB Sc LGA1200 Z490I AORUS ULTRA 1.1, Intel 490, 2xDDR4, VGA, WI-FI, Mini-ITXGIGABYTE MB Sc LGA1200 Z490I AORUS ULTRA 1.1, Intel 490, 2xDDR4, VGA, WI-FI, Mini-ITX
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

GIGABYTE MB Sc LGA1200 Z490I AORUS ULTRA 1.1, Intel 490, 2xDDR4, VGA, WI-FI, Mini-ITX

Z490I AORUS ULTRA (rev. 1.0) Intel Z490 Mini-ITX AORUS Motherboard with Direct 8 Phase Digital VRM Design, Advanced Thermal Solution, Intel WiFi 6 802.11ax, Intel 2.5GbE LAN, HDMI 2.0, RGB FUSION 2.0 Supports 10th Gen Intel Core™ Series Processors Dual Channel Non-ECC Unbuffered DDR4, 2DIMMs Intel Optane™ Memory Ready Direct 8 Phase Digital VRM Solution with 90A Smart…
Kategorie: Základní desky
Kód: 2777299PN: Z490I AORUS ULTRAVýrobce: GIGABYTEZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.
7 694   včetně DPH
Cena bez DPH: 6 359 Kč
Nákup po telefonu
+420 587 407 456
Skladem poslední 3 kusy
Kdy zboží dostanu?termín / cena přepravy
Na prodejně v Olomouci (po objednání)již 4.6. / ZDARMA!
Přepravní službou (ČR)již 5.6. / od 99 Kč
Na výdejním místě (ČR)8.6. / od 99 Kč
Uvedený termín je průměrná doba doručení uvedenou službou.

Popis produktu

Z490I AORUS ULTRA (rev. 1.0)

Intel Z490 Mini-ITX AORUS Motherboard with Direct 8 Phase Digital VRM Design, Advanced Thermal Solution, Intel WiFi 6 802.11ax, Intel 2.5GbE LAN, HDMI 2.0, RGB FUSION 2.0

  • Supports 10th Gen Intel Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2DIMMs
  • Intel Optane™ Memory Ready
  • Direct 8 Phase Digital VRM Solution with 90A Smart Power Stage
  • Extended MOSFET Heatsink and Multi-Layered PCH M.2 Heatsink with Heatpipes
  • Onboard Intel WiFi 6 802.11ax 2T2R & BT 5 with AORUS Antenna
  • Blazing Fast Intel 2.5GbE LAN with cFosSpeed
  • AMP-UP Audio with ALC1220-VB for Rear 120dB SNR
  • HDMI 2.0 supports Premium 4K
  • Dual Ultra-Fast NVMe PCIe 3.0 x4 M.2 with Thermal Guard
  • RGB FUSION 2.0 with Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

TECHNICAL SPECIFICATIONS

CPU
  1. Support for 10th Generation Intel Core™ i9 processors/Intel Core™ i7 processors/Intel Core™ i5 processors/Intel Core™ i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package
  2. L3 cache varies with CPU
Chipset
  1. Intel Z490 Express Chipset
Memory
  1. Intel Core™ i9/i7 processors:
    Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
  2. Intel Core™ i5/i3/Pentium/Celeron processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
  3. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  4. Dual channel memory architecture
  5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  7. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics

Integrated Graphics Processor+PARADE PS175 chip:

  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.0 version, HDCP 2.3, and HDR.

Integrated Graphics Processor-Intel HD Graphics support:

  1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.


Maximum shared memory of 512 MB

Audio
  1. Realtek ALC1220-VB codec
    * The back panel line out jack supports DSD audio.
  2. Support for DTS:X Ultra
  3. High Definition Audio
  4. 2/4/5.1/7.1-channel
    * To configure7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
  1. Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Wireless Communication module

Intel Wi-Fi 6 AX201

  1. WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 5.1
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16
    (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
Storage Interface
  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_CPU)
  2. 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2M_SB)
  3. 4 x SATA 6Gb/s connectors
  4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
  5. Intel Optane™ Memory Ready
USB

Chipset:

  1. 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
  2. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
  3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  4. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  5. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB header)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 3 x system fan headers
  5. 1 x addressable LED strip header
  6. 1 x RGB LED strip header
  7. 4 x SATA 6Gb/s connectors
  8. 2 x M.2 Socket 3 connectors
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x speaker header
  12. 1 x USB Type-C™ header, with USB 3.2 Gen 1 support
  13. 1 x USB 3.2 Gen 1 header
  14. 1 x USB 2.0/1.1 header
  15. 1 x Clear CMOS jumper
  16. 1 x chassis intrusion header

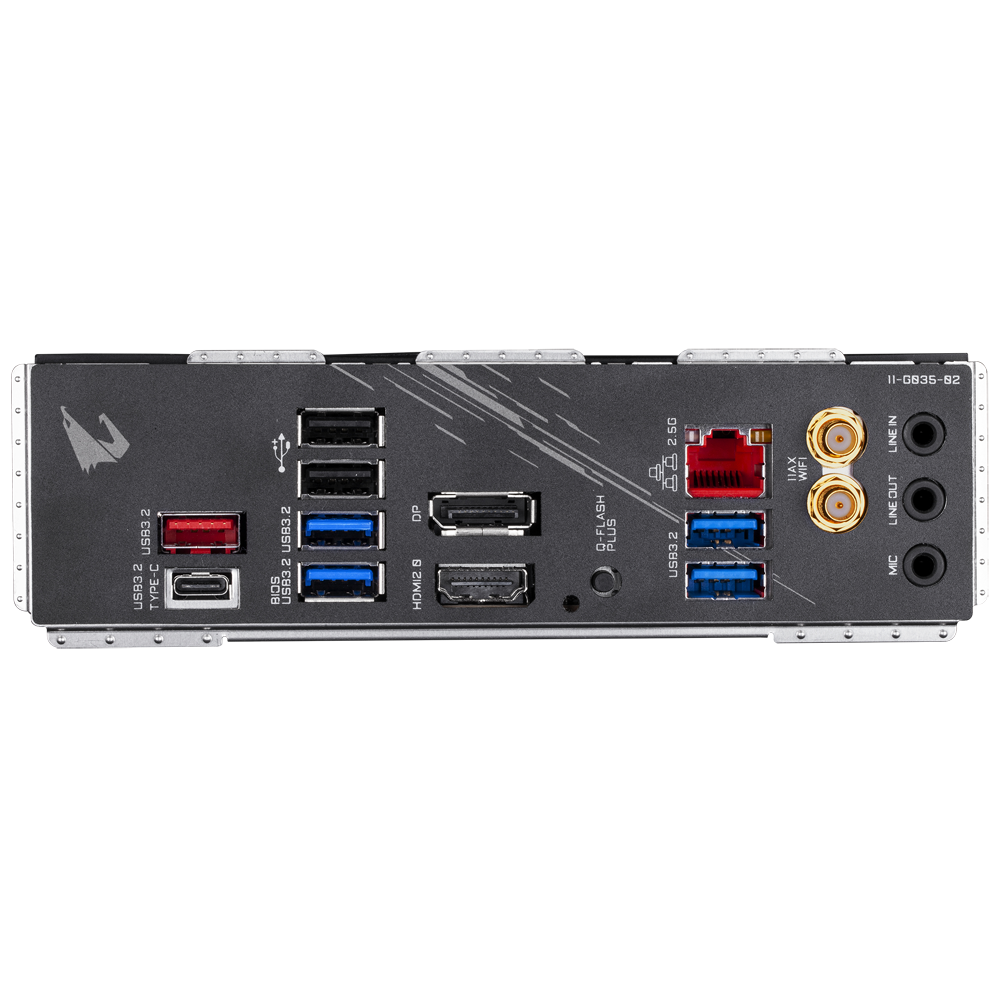

Back Panel Connectors
  1. 1 x DisplayPort
  2. 1 x HDMI port
  3. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
  4. 1 x USB 3.2 Gen 2 Type-A port (red)
  5. 4 x USB 3.2 Gen 1 ports
  6. 2 x USB 2.0/1.1 ports
  7. 1 x Q-Flash Plus button
  8. 1 x RJ-45 port
  9. 2 x SMA antenna connectors (2T2R)
  10. 3 x audio jacks
I/O Controller
  1. iTE I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundled Software
  1. Norton Internet Security (OEM version)
  2. cFosSpeed
  3. XSplit Gamecaster + Broadcaster (12 months license)
Operating System
  1. Support for Windows 10 64-bit
Form Factor
  1. Mini-ITX Form Factor; 17.0cm x 17.0cm

Parametry

FormátMini-ITX
ChipsetIntel
Integrovaná grafická kartaAno (CPU)
Integrovaná LAN karta1
PCI express 16x1
Podpora RAID1
Podpora RAID5
Podpora RAID10
RozhraníHDMI
RozhraníUSB 3.2
Rozhraní3.5mm Jack
RozhraníWi-Fi
RozhraníDisplayPort
RozhraníUSB Type-C
Socket (patice)Socket 1200
Technologie paměti RAMDDR4
