MSI VGA AMD Radeon RX 6400 AERO ITX 4G, RX 6400, 4GB GDDR6, 1xDP, 1xHDMI

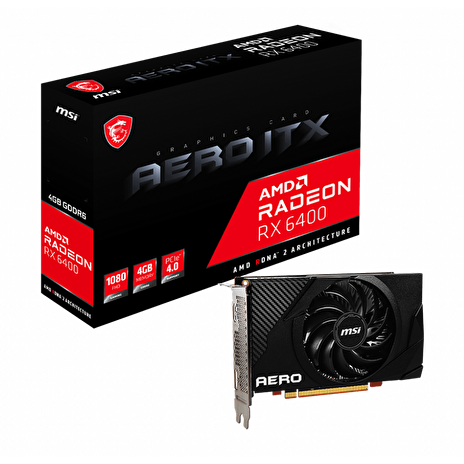

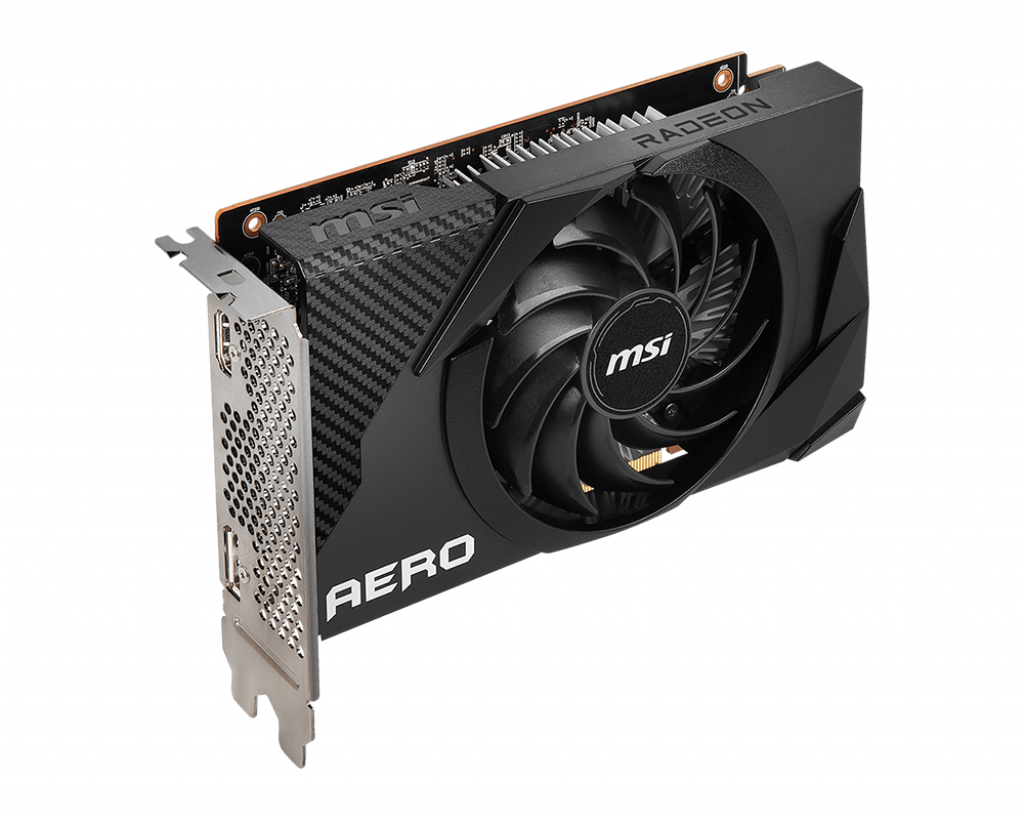

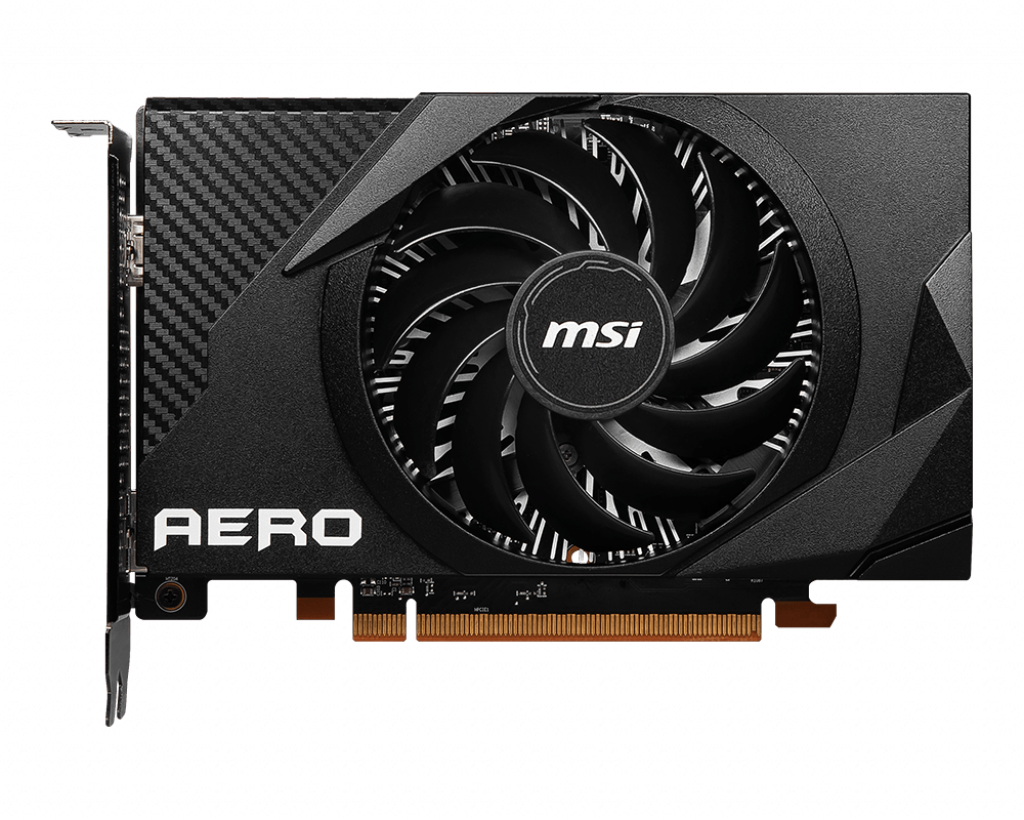

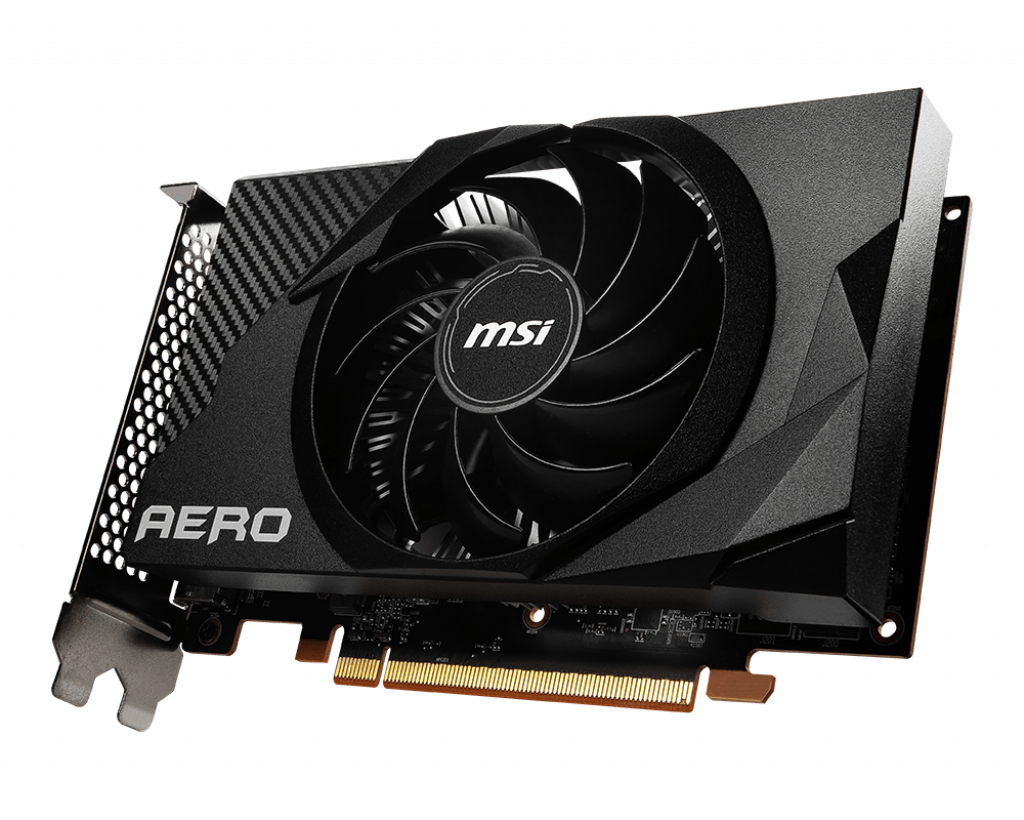

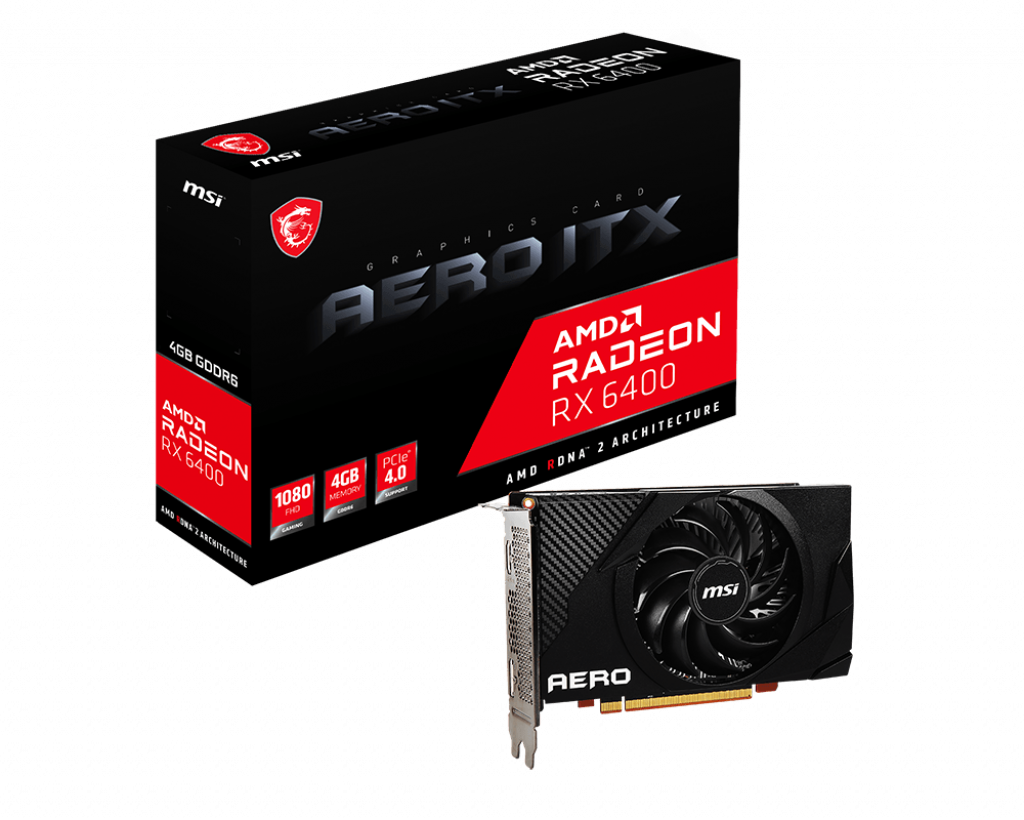

Radeon™ RX 6400 AERO ITX 4G

Introducing AMD Radeon™ RX 6400 graphics cards, featuring the breakthrough AMD RDNA™ 2 architecture and engineered to deliver great gaming performance with remarkable efficiency. Blaze a trail into tomorrow, dive into 1080P gaming, enjoy vivid virtual worlds, and elevated experiences with the power of next-generation graphics.

Boost Clock / Memory Speed

• Up to 2321 MHz / 16 Gbps
• 4GB GDDR6
• DisplayPort x 1 (v1.4a)
• HDMI x 1 (Supports 4K@120Hz/8K@60Hz and VRR as specified in HDMI 2.1)

Small Form Factor Design

• Perfect for small form factor systems and HTPC.
• Custom fan design with a unique curve to enhance heat dissipation.
• Copper heatpipes maximize heat transfer from the surface of the baseplate for better cooling.

Afterburner Overclocking Utility

• Supports multi-GPU setups.
• OC Scanner: An automated function finds the highest stable overclock settings.
• On Screen Display: Provides real-time information of your system's performance.
• Predator: In-game video recording.

MSI Center

• The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.MSI Center

MODEL NAME

Radeon™ RX 6400 AERO ITX 4G

GRAPHICS PROCESSING UNIT

Radeon™ RX 6400

INTERFACE

PCI Express Gen 4 x 4

CUDA CORES

768 Units

CORE CLOCKS

Boost: Up to 2321 MHz

Game: Up to 2039 MHz

MEMORY SPEED

16 Gbps

MEMORY

4GB GDDR6

MEMORY BUS

64-bit

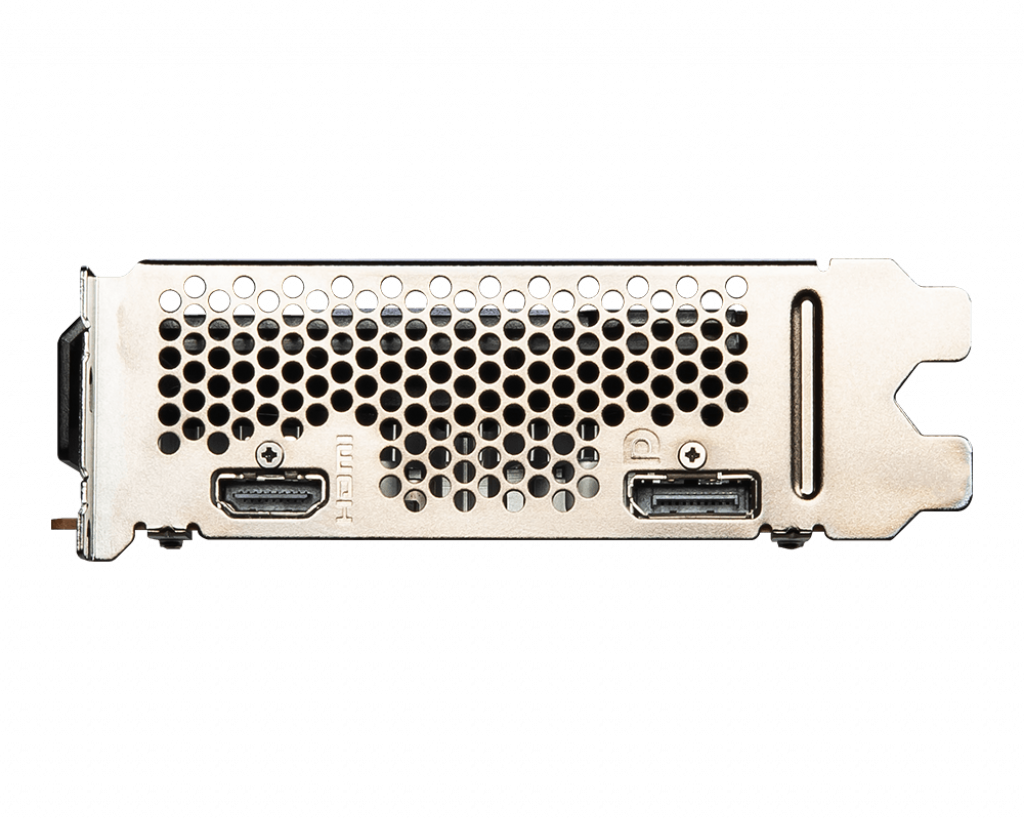

OUTPUT

DisplayPort x 1 (v1.4a)

HDMI x 1 (Supports 4K@120Hz/8K@60Hz

VRR as specified in HDMI 2.1)

HDCP SUPPORT

Y

POWER CONSUMPTION

53W

RECOMMENDED PSU

350W

CARD DIMENSION (mm)

172 x 112 x 39 mm

WEIGHT (CARD / PACKAGE)

358g / 718g

DIRECTX VERSION SUPPORT

12 API

OPENGL VERSION SUPPORT

4.6

MAXIMUM DISPLAYS

2

VR READY

Y

FREESYNC™ TECHNOLOGY

Y

DIGITAL MAXIMUM RESOLUTION

7680 x 4320
