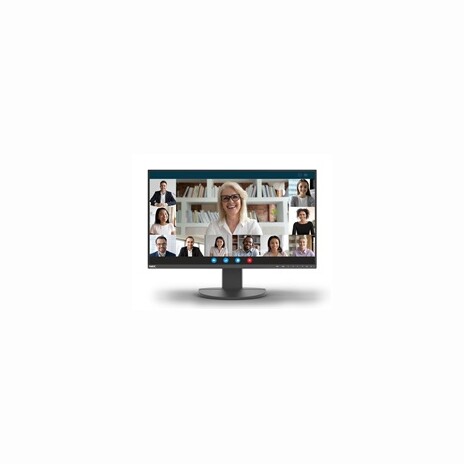

27" LCD monitor with LED backlight, 1920x1080, USB-C, DisplayPort,
HDMI, USB 3.1, 150 mm height adjustable
Product Information
Product Name MultiSync EA272F
Product Group LCD 27" Enterprise Display
Order Code 60005247 (WH), 60005033 (BK)
Display
Panel Technology AH-IPS LCD with LED Backlight
Screen Size [inch/cm] 27 / 69
Screen Aspect Ratio 16:9
Colour Gamuts 102 % sRGB; 75.5% AdobeRGB, 72% NTSC
Pixel Pitch [mm] 0.311
Brightness (typ.) [cd/m2] 250
Contrast Ratio (typ.) 1000:1 (5000:1 dynamic contrast ratio)
Response Time (typ.) [ms] 6
Colours [Mio.] 16.777
Synchronisation Rate
Horizontal Frequency [kHz] 31.5 - 83
Vertical Frequency [Hz] 55 - 75
Resolution
Optimum Resolution 1920 x 1080 at 60 Hz
Supported 1920 x 1080;
1680 x 1050;
1440 x 900;
1280 x 1024;
1280 x 960;
1280 x 720;
1024 x 768;
800 x 600;
720 x 400 (70 Hz);
640 x 480
Connectivity
Digital 1 x DisplayPort; 1 x DisplayPort out; 1 x HDMI; 1 x USB
Type C; USB ver. 3.1 (3 down / 1 up)
Analog 1 x VGA
Electrical
Power Consumption on Mode
[W]
15 (Eco Mode 2); 21 (typ.)
Power Savings Mode [W] 3
Power Supply 0.85 A/0.45 A; 100-240 V; integrated power supply
Environmental Conditions
Operating Temperature [°C] +5 to +35
Operating Humidity [%] 20 to 80
Storage Humidity [%] 10 to 85
Storage Temperature [°C] -10 to 60
Ergonomics
Height adjustable stand [mm] 150 (Landscape mode)
Screen Tilt [°] -5 to 35
Screen Swivel [°] -170 to 170
Screen Rotate [°] -90 to 90 (landscape to portrait mode)
Mechanical
LCD 27 Enterprise Display - MultiSync EA272F (2 / 3)
Bezel Width [mm] 0.8 (left and right); 0.8 (top); 15.8 (bottom)
Dimensions (W x H x D) [mm] 359.8 x 628.4 - 651.6 x 250 (Portrait
mode); 610.2 x 377.3 - 527.3 x 250 (Landscape mode)
Weight [kg] With stand: 9.2
VESA Mounting [mm] 100 x 100
Additional Features
Special Characteristics Ambient light sensor for optimized
brightness levels; Auto Contrast; Carbon Footprint Meter;
Carbon Savings Meter; ControlSync; Customize Setting; DICOM
Simulation; EcoModes;
ErgoDesign: Height adjustable stand (150 mm) with 90° Pivot
features; Human Sensor; LED
Backlight Technology; Quick release Stand and Handle; USB ver. 3.1
(3 down / 1 up); Versatile
and easy installation (VESA standard) with NaViSet and NaViKey;
Windows 10 compatible
Colour Versions Black Front Bezel, Black Back Cabinet; White Front
Bezel, White Back Cabinet
Cable Management yes
Kensington security slot yes
Plug and Play DDC2B/2Bi; EDID Standard; VESA DDC/CI
Audio Headphone Jack; Integrated Speakers (1 W + 1 W)
Adjust Functions Audio Volume / Lock-Out; Auto Adjust; Brightness;
Colour Temperature Control; Contrast;
Control Sync; DV Mode; EcoMode; Factory Preset; Fine Adjust
(analog); Human Sensing;
Intelligent Power Management; Language Select; Monitor Information;
NTAA (Non-TouchAuto-Adjustment); On-Screen-Display (OSD) lock-out;
One Touch Recovery; Power-Off Timer;
sRGB
Shipping Content Control Sync Cable; DisplayPort cable; Monitor;
Power Cable; Set-up Manual; Setup Guide;
USB Cable; USB-C Cable
Safety and Ergonomics CE; EAC; EnergyStar 8.0; ErP; FCC Class B;
Flicker-free; ISO 9241-307 (pixel failure class 2);
ISO 9241-307 (pixel failure class I); Low Blue Light; PSB; RoHS;
TCO 8.0; TÜV Ergonomics;
TÜV GS; UL/C-UL or CSA
Warranty 3 years warranty incl. backlight; optional 4th to 5th year
warranty extension
Green Features
Energy Efficiency Ambient light sensor; Auto brightness; Carbon
Footprint Meter / Carbon Savings Meter;
ECOMode; Energy efficiency class: A+; Human sensor; LED backlight
technology
Ecological Materials Efficient mechanical design for minimised
packag
