Počítače a kancelář  Síťové prvky  Switche  QNAP QSW-M2116P-2T2S (2x10GbE SFP+/2x10GbE RJ45/16x2,5GbE/18xPoE)

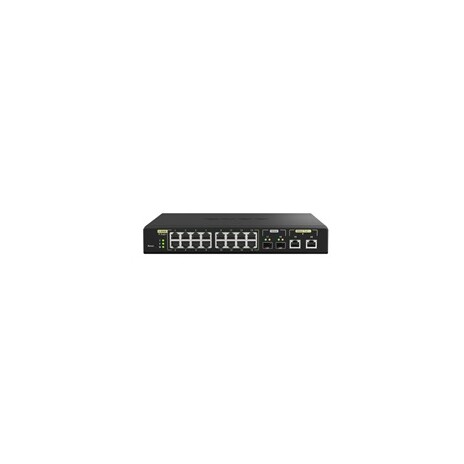

QNAP QSW-M2116P-2T2S (2x10GbE SFP+/2x10GbE RJ45/16x2,5GbE/18xPoE)
QNAP QSW-M2116P-2T2S (2x10GbE SFP+/2x10GbE RJ45/16x2,5GbE/18xPoE)QNAP QSW-M2116P-2T2S (2x10GbE SFP+/2x10GbE RJ45/16x2,5GbE/18xPoE)QNAP QSW-M2116P-2T2S (2x10GbE SFP+/2x10GbE RJ45/16x2,5GbE/18xPoE)QNAP QSW-M2116P-2T2S (2x10GbE SFP+/2x10GbE RJ45/16x2,5GbE/18xPoE)QNAP QSW-M2116P-2T2S (2x10GbE SFP+/2x10GbE RJ45/16x2,5GbE/18xPoE)
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

QNAP QSW-M2116P-2T2S (2x10GbE SFP+/2x10GbE RJ45/16x2,5GbE/18xPoE)

QNAP QSW-M2116P-2T2S 90-watt 10GbE PoE++ and 30-watt 2.5GbE PoE+ Managed Switch for the Wi-Fi 6 Generation The QNAP QSW-M2116P-2T2S is a L2 PoE Managed Switch with sixteen 30-watt 2.5GbE PoE+ ports, two 90-watt 10GbE PoE++ ports. Offering a total power budget of 380 watts and two 10GbE SFP+ ports, the QSW-M2116P-2T2S not only enables a high-speed and high-power PoE network…
Kategorie: Switche
Kód: 3194832PN: QSW-M2116P-2T2SVýrobce: QNAPZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.
Aktuálně není v nabídce

Popis produktu

QNAP QSW-M2116P-2T2S

90-watt 10GbE PoE++ and 30-watt 2.5GbE PoE+ Managed Switch for the Wi-Fi 6 Generation

The QNAP QSW-M2116P-2T2S is a L2 PoE Managed Switch with sixteen 30-watt 2.5GbE PoE+ ports, two 90-watt 10GbE PoE++ ports. Offering a total power budget of 380 watts and two 10GbE SFP+ ports, the QSW-M2116P-2T2S not only enables a high-speed and high-power PoE network infrastructure for Wi-Fi 6 Access Points and Routers, but also provides backbone network uplinking capabilities. The QSS, QNAP Switch System with user-friendly web interface, helps IT administrators efficiently control Layer 2 and PoE networks, including wireless APs, IP Cameras and Digital Signage, core Switches and Servers. The QSW-M2116P-2T2S offers SMBs a cost-optimized and centrally managed LAN deployment solution.

Stránky produktu: https://www.qnap.com/en/product/qsw-m2116p-2t2s

Technické specifikace
Management Type Web Managed
Number of Ports 20
10GbE SFP+ 2
10GbE BASE-T (RJ45) 2
2.5GbE (RJ45) 16
Total PoE Ports 18
PoE PSE (802.3af, 15.4W) Port 1-16
PoE+ PSE (802.3at, 30W) Port 1-16
PoE++ PSE (802.3bt, 90W) Port 19-20
PoE Power Output Port 1-16 (30W), Port 19-20 (90W)
Total PoE Power Budget 280W
Power Supply Description Internal Power Supply Unit
Max. Power Consumption 350W
Input Power Type AC
Input Voltage Range 100-240VAC, 50/60 Hz
MAC Address Table 32K
Total Non-Blocking Throughput 80Gbps
Switching Capacity 160Gbps
Management Interface Web
Console RJ45
Energy Efficient Ethernet (IEEE 802.3az complaint) Yes
Fan PWM double ball bearing fan x 2
Supported Standards IEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3an 10G BASE-T
IEEE 802.3ae 10G Fiber
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.1Q VLAN Tagging
IEEE 802.3ad LACP
IEEE 802.1AB LLDP
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.3af/at/bt Power-over-Ethernet (PoE)
Form Factor Rackmount
LED Indicators Per Port: Speed/Link/Activity
Per System: Status/PoE/Fan
Buttons Reset button
Dimensions (HxWxD) 43.5 x 285 x 234.8 mm
Weight (Net) 2.08 kg
Weight (Gross) 2.13 kg
Operating Temperature 0°C to 40°C (32°F to 104°F)
Relative Humidity 5~95% Non-condensing
Certifications CE, FCC, VCCI, BSMI
Electromagnetic Compliance CLASS A
Jumbo Frames 9K
Warranty 2 Years

Parametry

FunkceQoS (Quality of service)
FunkceVLAN (virtual local area network)
FunkcePoE (Power over ethernet)
FunkceL2
FunkceWeb management/Smart switch
ManagementWeb
Maximální počet portů16
Počet PoE Out portů18
Počet SFP+ portů2
Podporované standardy PoE802.3af
Podporované standardy PoE802.3at
Podporované standardy PoE802.3bt
PoE budget (W)0
ProvedeníRack mounted 19"
Přenosová rychlost LAN (Mb/s)2500
Přenosová rychlost LAN (Mb/s)0
TechnologieGigabit Ethernet + 10 GbE porty
VentilátorAno
